Garage Sale - GM 19318604 CT400 IMCA-Sealed 604 Chevy Crate Engine, Dyno Tested
Garage Sale - GM 19318604 CT400 IMCA-Sealed 604 Chevy Crate Engine, Dyno Tested

Garage Sale - GM 19318604 CT400 IMCA-Sealed 604 Chevy Crate Engine, Dyno Tested

0 Reviews | 1 Answered Question
In Stock
Garage Sale - GM 19318604 CT400 IMCA-Sealed 604 Chevy Crate Engine, Dyno Tested
Garage Sale - GM 19318604 CT400 IMCA-Sealed 604 Chevy Crate Engine, Dyno Tested
Zoomed In Image
Part # 91619318604.GS
Save 6%
$7,999.99
$8,559.99
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
What's In The Kit
Reviews
Q&A
Articles

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Info

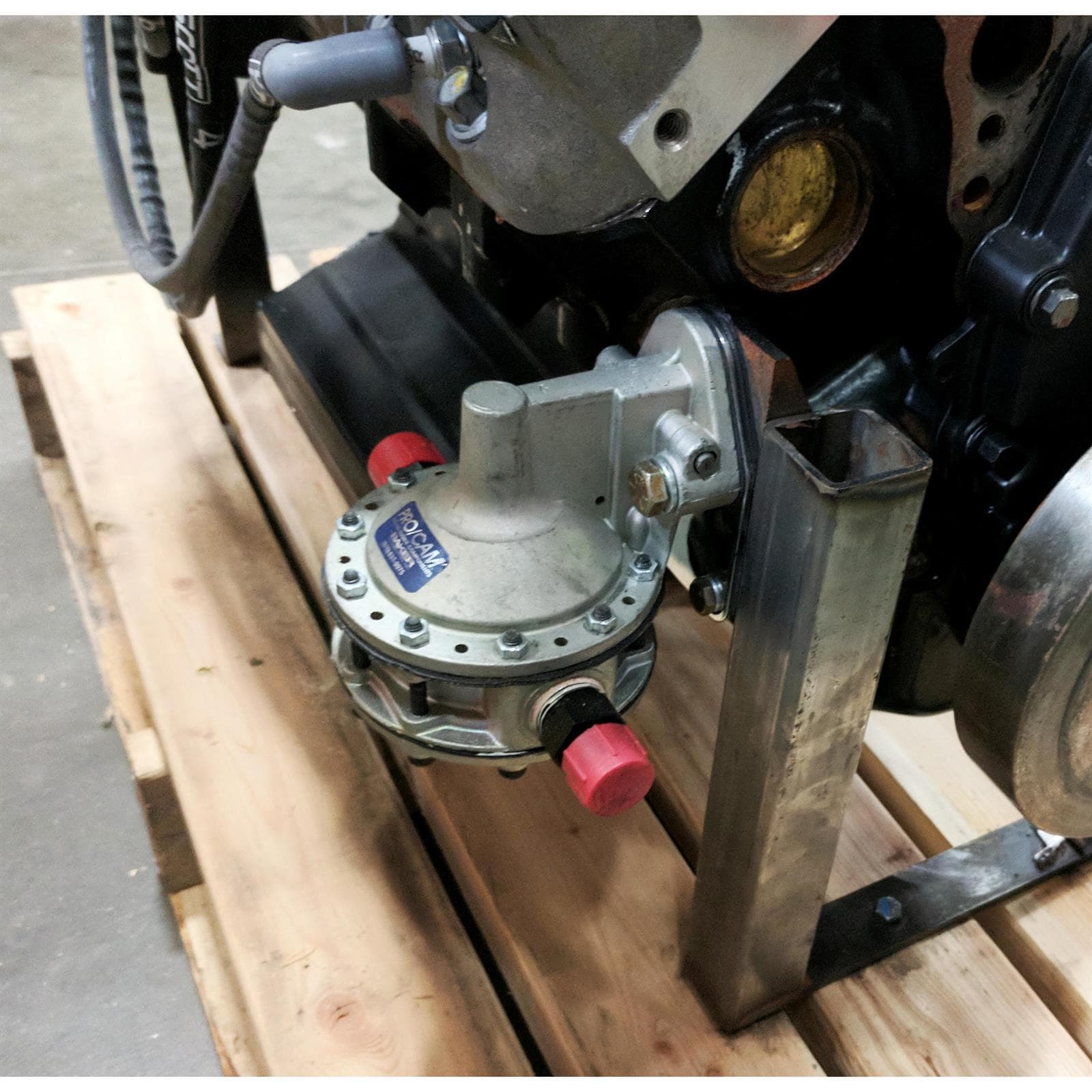

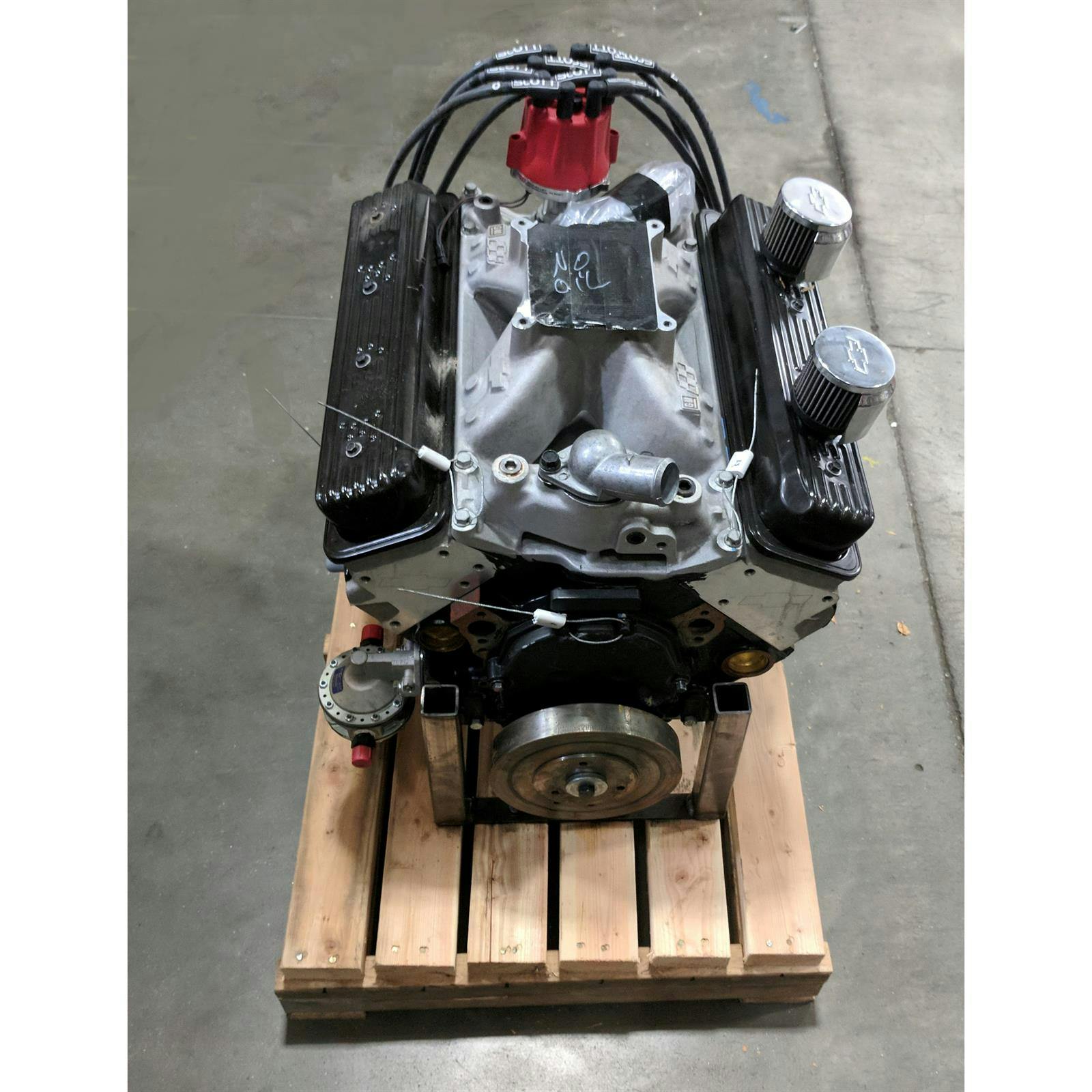

This is garage sale priced because it was damaged and repaired/sealed by Speedway's engine shop. This includes the carb, distributor and fuel pump shown in the photos.

This engine has dyno time only.  Upon initial dyno run, it incurred a piston issue to where one piston required replacement.  The piston was replaced and then dynoed again with the components included/listed with this sale.  The engine has been repaired and resealed in accordance with IMCA therefore this engine no longer has any GM seal bolts.  The carburetor included wit this engine is a gas carb.

No Warranty, No Returns on Garage Sale Items



Run up front with the 400-horsepower CT400 crate engine (often referred to as the "604 crate") featuring Fast Burn heads from GM Performance Parts. Now, Speedway Motors Racing Engines is offering this 604 crate engine as a dyno-verified package that is ready to race!

These IMCA-sealed 604 crate racing engines are based on the popular Fast Burn 385 street crate engine, but include a racing-only 8-quart circle track oil pan with dual kick-out design, along with a valve cover breather kit and special "kool nut" rocker arm design. The assembly also includes an open-plenum high-rise intake manifold and 1.5:1-ratio aluminum roller rockers.

The 604 crate engine includes a bulletproof bottom end, anchored by a forged steel crankshaft and hypereutectic pistons. The 23-degree, Fast Burn aluminum heads enable tremendous power in the small-block V-8 because of a unique chamber design that quickly and completely burns all of the air/fuel mixture – giving you maximum power. With the CT400 racing engine under the hood of your Modified or Late Model, you'll put a "fast burn" on the competition.
  • Dyno-verified horsepower and torque
  • Piston rings are broken-in using a proprietary dyno program
  • Lash and timing are individually tuned
  • Engine is ready to race, right out of the crate
  • IMCA-sealed for equal competition
  • Popular in Modified and Late Model classes*
  • 400 HP @ 5500 RPM
  • 400 ft. lbs. of torque @ 4500 RPM
  • 4.00" x 3.48" bore x stroke
  • 9.6:1 compression ratio
  • 92 octane recommended fuel
  • 4-bolt main caps
  • Cam lift: .474" intake / .510" exhaust
  • Cam duration @ .050": 208° intake / 221° exhaust
  • 112° lobe separation
  • 1.5:1 ratio aluminum roller rocker arms
  • 2.00" Intake / 1.55" Exhaust valves

Includes:

  • Fully assembled long block
  • Black steel valve covers w/ breathers
  • Oil pump, pick-up, 8 quart oil pan
  • Eliminator Vortec intake manifold
  • Spark plugs
  • 8" harmonic balancer
  • Front timing cover
  • Dyno sheet of your engine
  • IMCA-issued bolts and is approved for use in IMCA
  • AED 750 Pro Carburetor and Spacer
  • MSD Pro Billet Distributor
  • Scott HEI 8.5 mm Wires
*Check track/series rules for approved applications.


Notes

  1. Requires the addition of a carburetor, starter, water pump, distributor, and plug wires (not included). See 121-8604 for a "dressed" version of this engine.
  2. Requires an externally balanced flywheel (not included).
  3. The 8-quart Circle Track oil pan is 7 inches deep at the sump. It will clear most GM rear-steer chassis with the stock engine location.
  4. For Circle Track Racing only - not intended for street use.
Some parts are not legal for use in California or other states with similar laws/regulations

Specs

Crate Engine Type:
Deluxe Crate Engine
Camshaft Type:
Hydraulic Roller Tappet
Cylinder Head Material:
Aluminum
Piston Material:
Hypereutectic Aluminum
Crankshaft Material:
Forged 4340 Steel
MFG. Part #:
19318604
Horsepower:
400 horsepower
Torque:
400 ft./lbs.
Maximum RPM:
5800
Engine Displacement:
350 cu. in.
Connecting Rod Material:
Powdered Metal
Warranty:
None
Sold in Quantity:
Each
Notes:
Broke-in, dyno-verified HP/TQ, and IMCA-sealed for competition.
Intake Manifold Included:
Yes
Valve Covers Included:
Yes
Cylinder Heads Included:
Yes
Rear Main Seal Style:
1-piece
Carburetor Included:
Yes
Distributor Included:
Yes
Oil Pan Included:
Yes
Timing Cover Included:
Yes
Water Pump Included:
No
Harmonic Balancer Included:
Yes
Flywheel Included:
No
Spark Plugs Included:
Yes
Spark Plug Wires Included:
Yes
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • GM 19318604 CT400 IMCA-Sealed 604 Chevy Crate Engine, Dyno Tested
    Qty x 1
  • Speedway 750 pro Carb
    Qty x 1
  • MSD Pro Billet
    Qty x 1
  • Scott 8.5mm Wires HEI
    Qty x 1
  • Procam 7.5 psi Fuel Pump
    Qty x 1
  • Fuel Pump Mounting Plate
    Qty x 1
  • AED Vortex Carb Spacer
    Qty x 1
  • AN10 - 1/2 NPT Straight
    Qty x 1
  • AN8 - 1/2 NPT Straight
    Qty x 1
  • Labor
    Qty x 1
