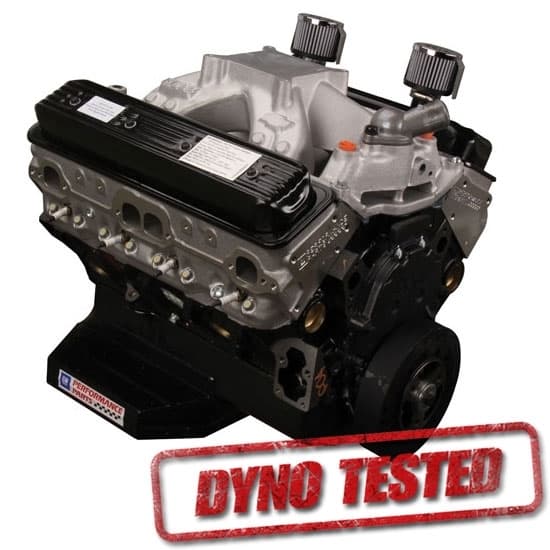

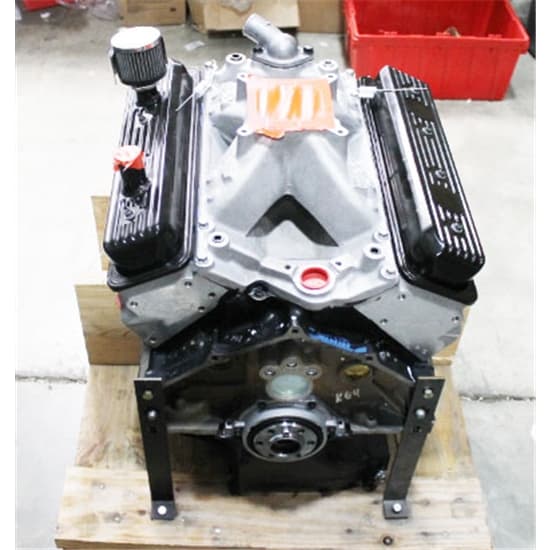

Garage Sale - GM 19318604 CT400 IMCA-Sealed 604 Chevy Crate Engine, Dyno Tested
Out of Stock
This item is currently not available
Shop all Speedway Racing GM 604 Crate Engines
Need To Know
Need help?
855.313.9176Ineligible for Return
Contains items that cannot be returned
Details
Details
This is garage sale priced because it was damaged, rebuild to new specs, sealed, and dyno'd to proper specs.
No Warranty, No Returns on Garage Sale Items
Run up front with the 400-horsepower CT400 crate engine (often referred to as the "604 crate") featuring Fast Burn heads from GM Performance Parts. Now, Speedway Motors Racing Engines is offering this 604 crate engine as a dyno-verified package that is ready to race!
These IMCA-sealed 604 crate racing engines are based on the popular Fast Burn 385 street crate engine, but include a racing-only 8-quart circle track oil pan with dual kick-out design, along with a valve cover breather kit and special "kool nut" rocker arm design. The assembly also includes an open-plenum high-rise intake manifold and 1.5:1-ratio aluminum roller rockers.
The 604 crate engine includes a bulletproof bottom end, anchored by a forged steel crankshaft and hypereutectic pistons. The 23-degree, Fast Burn aluminum heads enable tremendous power in the small-block V-8 because of a unique chamber design that quickly and completely burns all of the air/fuel mixture – giving you maximum power. With the CT400 racing engine under the hood of your Modified or Late Model, you'll put a "fast burn" on the competition.
- Dyno-verified horsepower and torque
- Piston rings are broken-in using a proprietary dyno program
- Lash and timing are individually tuned
- Engine is ready to race, right out of the crate
- IMCA-sealed for equal competition
- Popular in Modified and Late Model classes*
- 400 HP @ 5500 RPM
- 400 ft. lbs. of torque @ 4500 RPM
- 4.00" x 3.48" bore x stroke
- 9.6:1 compression ratio
- 92 octane recommended fuel
- 4-bolt main caps
- Cam lift: .474" intake / .510" exhaust
- Cam duration @ .050": 208° intake / 221° exhaust
- 112° lobe separation
- 1.5:1 ratio aluminum roller rocker arms
- 2.00" Intake / 1.55" Exhaust valves
Includes:
- Fully assembled long block
- Black steel valve covers w/ breathers
- Oil pump, pick-up, 8 quart oil pan
- Eliminator Vortec intake manifold
- Spark plugs
- 8" harmonic balancer
- Front timing cover
- Dyno sheet of your engine
- IMCA-issued bolts and is approved for use in IMCA
*Check track/series rules for approved applications.
GM CT400 Spec Sheet (PDF)
Notes
- Requires the addition of a carburetor, starter, water pump, distributor, and plug wires (not included).
- Requires an externally balanced flywheel (not included).
- The 8-quart Circle Track oil pan is 7 inches deep at the sump. It will clear most GM rear-steer chassis with the stock engine location.
- For Circle Track Racing only - not intended for street use.
Specs
Sold in Quantity:
Each
Rear Main Seal Style:
1-piece
Camshaft Type:
Hydraulic Roller Tappet
Piston Material:
Hypereutectic Aluminum
Crankshaft Material:
Forged 4340 Steel
Cylinder Head Material:
Aluminum
Crate Engine Type:
Deluxe Crate Engine
Connecting Rod Material:
Powdered Metal
MFG. Part #:
19318604
Warranty:
None
Maximum RPM:
5800
Garage Sale:
Yes
Torque:
400
Horsepower:
400
Engine Displacement:
350
