Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual

Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual

0 Reviews | 0 Answered Questions
Out of Stock
More Like This
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
X
Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Garage Sale - Dewitts 4139012M 1955-57 Chevy/TRI-V Radiator Fan Combo, Manual
Zoomed In Image
Part # UP64534
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Radiator Flow Direction:
Downflow
Material Type:
Aluminum
Inlet Location:
Center
Outlet Location:
Lower passenger side
Row Quantity:
2
Tube Size:
1"
Overall Width Range:
22.00" to 22.99"
Overall Width:
22"
Overall Height Range:
21.00" to 21.99"
Overall Height:
21.25"
Overall Thickness:
5.5"
Core Width Range:
22.00" to 22.99"
Core Width:
22"
Core Height Range:
16.00" to 16.99"
Core Height:
16.5"
Core Thickness:
2.25"
Finish:
Natural
Cooling Fan:
Single
Transmission Cooler:
No
Inlet Size:
1.5"
Outlet Size:
1.5"
Fan Included:
Yes
Radiator Cap Included:
No
Fan Diameter:
16 Inch
CFM:
2360 CFM
Blade Material:
Plastic
Shroud Color:
Natural
Shroud Material:
Aluminum
Notes:
Electric fan has 22.0 amp rating.
Sold in Quantity:
Each

Info

This radiator is garage sale priced because it has some bent fins and dings from being test fit.

NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS

The superior quality of a DeWitts® radiator begins with a manufacturing process that is controlled 100% in house. Every core is assembled and brazed in Howell, MI to ensure excellence throughout the entire build. DeWitts® is the only USA aftermarket radiator company to own an aluminum Nocolok brazing furnace which allows for production of a superior, epoxy free, aluminum core. DeWitts® radiators are assembled with press formed end tanks which eliminate fabrication seams and potential leak points of common box tanks while providing an original equipment look for your classic car. In most cases, DeWitts® double row radiators provide a 30% increase in heat rejection. Adding an electric fan will boost that number an additional 10%. If you're still not sure if that's enough, HP models are available with 1 1/4" tubes and offer approximately another 10% cooling capacity. Every DeWitts® Aluminum radiator is designed to fit the listed application without any modifications to your car and is available in your choice of a natural, Black Ice or polished finish.

Black Ice is a special two part epoxy paint. It is applied in a spray and it adheres to the aluminum and will never flake or peel off. The semi-gloss finish gives any radiator the look of an original copper/brass unit. The total thickness of the dried product is only .005"thick and it will not affect cooling performance.

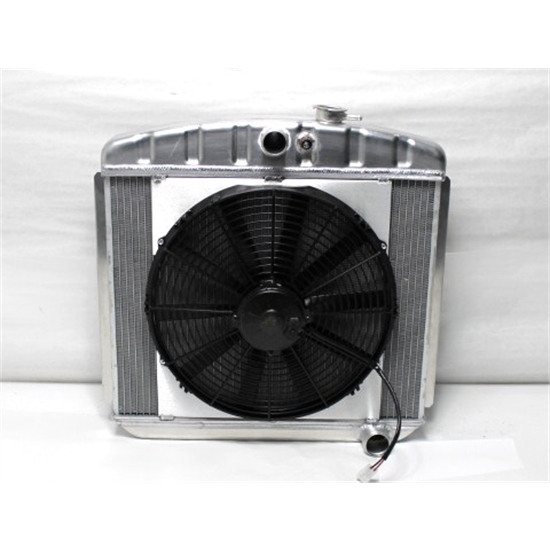

This fan/radiator combo consists of a Direct Fit® aluminum radiator and a 16" (2360 cfm) Spal electric fan with temperature switch and harness.

  • Direct Fit® with no modification
  • Epoxy free, aluminum, dual row core
  • 1" tubes
  • Press formed end tanks
  • Assembled and brazed in Howell, MI

DeWitts® Radiator Warranty

Notes

Electric fan has 22.0 amp rating.

Specs

Material Type:
Aluminum
Tube Style:
Downflow
Sold in Quantity:
Each
Row Quantity:
Dual
Inlet Location:
Centered
Outlet Location:
Lower Right
Finish:
Natural
Blade Material:
Plastic
Transmission Cooler:
No
Overall Height:
21.25
Overall Width:
22
Inlet Size:
1.5
Core Thickness:
2.25
Tube Size:
1
CFM:
2360
Radiator Cap Included:
No
Core Height:
16.5
Outlet Size:
1.5
Core Width:
22
Fan Included:
Yes
Fan Quantity:
1
Fan Diameter:
16
Shroud Material:
Aluminum
Shroud Color:
Natural
Overall Thickness:
5.5
