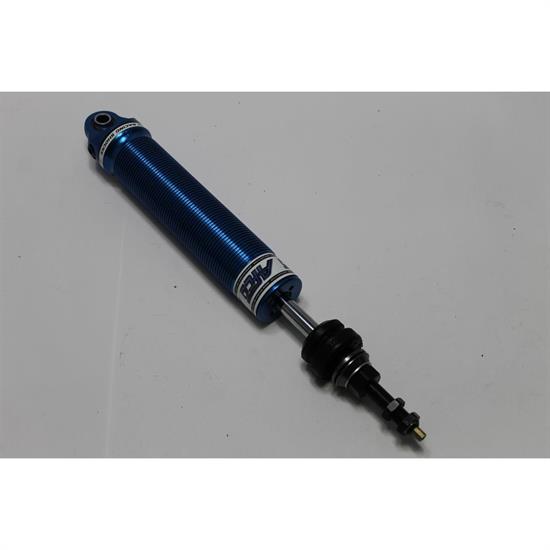

Garage Sale - AFCO 3875R Eliminator Rear Shocks-Single Adj. 7 In Stroke-Ford/Mercury
This is garage sale priced because it is new, old stock. It is being sold as is pictured. Please see photos above for further details.
NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS
AFCO Eliminator Twin Tube Adjustable REAR shocks are built specifically for drag racing. Using advanced onboard diagnostics, AFCO developed the Eliminator Series to precisely control your race car at every point on the track. With the easy-to-use, repeatable "click" settings, this shock will give you unsurpassed traction.
Single (Rebound) Adjustable shocks are an economical alternative that gives you the ability to adjust rebound dampening control without affecting the compression dampening characteristics of the shock.
- Body Mount: Tie Bar Mount w/ 2.375" bolt centers
- Shaft Mount: 9/16" Stud (3-1/8" length, 1-1/8" threads, 1-3/4" washers)
See Applications tab for Ford-Mercury chassis fittment.
13.90" Comp, 20.90" Ext
Warning - The chart below is a general guide only. We highly recommend you measure your chassis for proper length and mount points before ordering.
- '72-'79 Fairlane - Torino
- '66-'70 Falcon
- '65-'86 Fullsize
- '81-'82 Granada
- '79-'93 Mustang
- '72-'79 Ranchero
- '67-'79 T-Bird
- '79-'86 Capri
- '80-'82 Cougar
- '74-'79 Cougar
- '65-'86 Fullsize
- '72-'76 Montego
(") Check extended and compressed dimensions.
