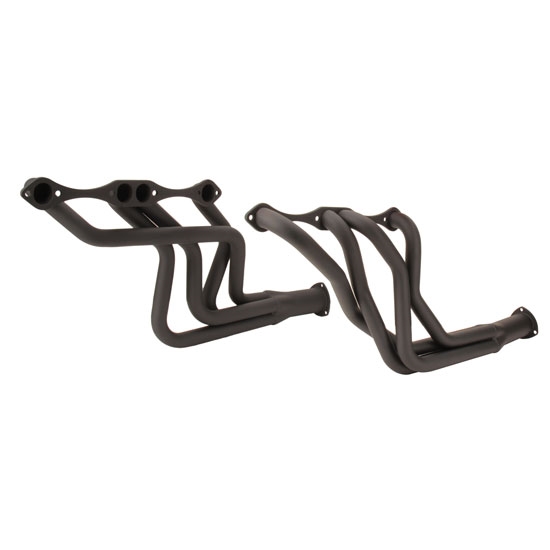

Garage Sale - 1965-1989 Small Block Chevy Long Tube Headers, Painted Black
Garage Sale - 1965-1989 Small Block Chevy Long Tube Headers, Painted Black

Garage Sale - 1965-1989 Small Block Chevy Long Tube Headers, Painted Black

0 Reviews | 0 Answered Questions
Out of Stock
More Like This
Garage Sale - 1965-1989 Small Block Chevy Long Tube Headers, Painted Black
Garage Sale - 1965-1989 Small Block Chevy Long Tube Headers, Painted Black
Zoomed In Image
Part # UP72843
Save 20%
$130.99
$164.99
set
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Info

This item is garage sale priced because there are scratches from being test fit.  No gaskets, bolts, or collector reducers included.



Some clearancing of tubes may be required on certain applications.



**NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS**



These long tube headers work with both automatic or manual transmissions in 1964-1989 Chevrolet chassis. Features 1-5/8" primary tubes, 3" collectors, and fits angled or straight plug S/B Chevy oval exhaust port heads. Built with surface machined thick steel flanges for a great seal and mandrel bent mild steel tubing. These headers are a chassis header and are meant to go inside of the frame rails on the 1965-1989 Chevrolet chassis.

Headers come with installation hardware, collector reducers, gaskets and instructions.

Header Dimensions Chart (JPEG)

Application

Applications include, but not limited to:

  • 1965-1989 Impala, Caprice, Bel Air, Biscayne
  • 1967-1981 Camaro (except 1967-69 with factory A/C)
  • 1964-1987 Chevelle, Malibu, El Camino
  • 1970-1987 Monte Carlo
  • 1968-1979 Nova

Notes

  1. Fits D-Port cylinder heads including ZZ4 crate engines
  2. Does not fit 67-69 Camaro with A/C
  3. Will fit most angle plug heads including factory Chevrolet “Bow-Tie” heads
  4. Requires removal or modification of locking steering columns if equipped
  5. Installation requires left side A/C bracket; later vehicles with short compressors can use the stock bracket
  6. Will fit Detroit Speed & Engineering front subframes with rack and pinion steering
  7. These headers are a chassis header and are meant to go inside of the frame rails on the 1965-1989 Chevrolet chassis.

Specs

Material Type:
Steel
Sold in Quantity:
Pair
Flange Style:
Round Port
Finish:
Painted Black
Header Tube Type:
Long Tube
Gasket(s) Included:
No
Hardware Included:
No
Tube O.D.:
1.63
Port Height:
1.70
Port Width:
1.41
Flange Thickness:
.30
Drivers Side Dimension A:
7.15
Drivers Side Dimension B:
16.88
Drivers Side Dimension C:
38.00
Passenger Side Dimension A:
5.10
Passenger Side Dimension B:
16.88
Passenger Side Dimension C:
37.00
Collector Length:
8.25
Collector Diameter :
3
Some parts are not legal for use in California or other states with similar laws/regulations
