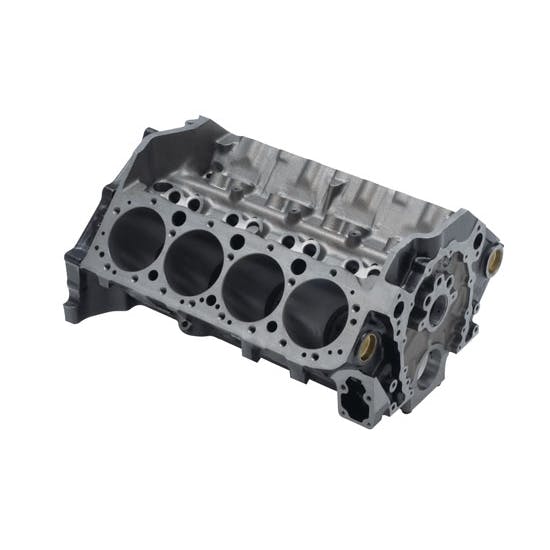

GM Performance 10243878 Small Block Chevy 305 Engine Block

-5%

#35510243878

GM Performance 10243878 Small Block Chevy 305 Engine Block

Name: GM Performance 10243878 Small Block Chevy 305 Engine Block
Brand: Chevrolet Performance Parts
SKU: 35510243878
Price: 799.99 USD
Availability: Discontinued

Write a Review

6 Questions

Discontinued

This item is currently not available

Shop all Chevrolet Performance Engine Components

Key Specs

MFG. Part #	10243869
Brand	Chevrolet Performance Parts
Material Type	Carbon Iron

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Chevrolet Performance Parts 10243869 Details

This Race Saver replacement for GM's 305 small block uses the same high-quality construction as all GM performance blocks. It is an all new GM 305 bare engine block and is IMCA RaceSaver approved.

Part Number: 10243869
Casting number: 10243878
Material: Cast Iron
Block finish: painted, black
Main Caps: 2 - Bolt
Main Cap Material: Cast Iron
Oil pump mounting: Conventional Wet Sump
Oil filter mounting: Spin on
Deck Height: 9.025"
Deck Finish Machined Yes
Lifter Pattern: Conventional
Finished Bore Size: (as shipped) 3.7360 - 3.7377
Bore finish: Finish Honed
Cylinder Bore Design: Open
Cylinder wall thickness: 6.62mm / 0.2606"
Main Brg Journal size: 2.45"
Oiling System: Pressurized Priorty Mains
Dipstick hole drilled: LH only - through head deck
Crank Seal type 1 piece insert
Max Stroke: 3.750"
Fuel Pump Mounting: Machined boss, pushrod not drilled
Cam Bearing finished cam bore (W/brgs) 1.8717 - 1.8707"
Lifter type Hydraulic Roller
Front cover - # mounting holes 10
Bellhousing mount - # mounting holes Conventional small-block pattern, 10 x 1.5 mm
Starter mounting provision starter mounting holes drilled and tapped for english threads
Motor Mount Holes Drilled and Threaded 10 x 1.5 mm

Chevrolet Performance Parts 10243869 Specifications

KEY SPECS
MFG. Part #	10243869
Brand	Chevrolet Performance Parts
Material Type	Carbon Iron

GENERAL
Finish	Painted
Sold in Quantity	Each

Ratings & Reviews

Be the first to write a review.

Fitment

1991-1993 Buick Roadmaster

Gen 1 L03 Small Block Chevy

1991-1992 Cadillac Brougham

1-Piece Rear Main 305 LB9

1987 Chevy Blazer

Gen 1 L03 Small Block Chevy

1976-1985 Chevy C10

Gen 1 LG3 Small Block Chevy

1986 Chevy C10

1-Piece Rear Main 305 LG4
Gen 1 LG3 Small Block Chevy

1976-1982 Chevy C10 Suburban

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy C10 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy C10 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1982-1987 Chevy C15

Gen 1 LE9 Small Block Chevy

1988 Chevy C15

Gen 1 L03 Small Block Chevy

1988-1995 Chevy C1500

Gen 1 L03 Small Block Chevy

1996 Chevy C1500

Gen 1 L03 Small Block Chevy
Vortec L30 Small Block Chevy

1997-1999 Chevy C1500

Vortec L30 Small Block Chevy

1977-1982 Chevy C20

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy C20

2-Piece Rear Main 305 LG4

1986 Chevy C20

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1987 Chevy C20

Gen 1 L03 Small Block Chevy

1976-1978 Chevy C20 Suburban

Gen 1 LG3 Small Block Chevy

1979-1985 Chevy C20 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1988-1995 Chevy C2500

Gen 1 L03 Small Block Chevy

1996 Chevy C2500

Gen 1 L03 Small Block Chevy
Vortec L30 Small Block Chevy

1997-1998 Chevy C2500

Vortec L30 Small Block Chevy

1978-1979 Chevy C30

Gen 1 LG3 Small Block Chevy

1986 Chevy C30

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1976-1982 Chevy Camaro

Gen 1 LG3 Small Block Chevy

1983-1984 Chevy Camaro

2-Piece Rear Main 305 LG4

1985 Chevy Camaro

2-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4
Gen 1 L69 Small Block Chevy

1986 Chevy Camaro

1-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4

1987-1992 Chevy Camaro

1-Piece Rear Main 305 LB9

1977 Chevy Caprice

Gen 1 LG3 Small Block Chevy

1978-1985 Chevy Caprice

2-Piece Rear Main 305 LG4

1986 Chevy Caprice

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1987-1993 Chevy Caprice

Gen 1 L03 Small Block Chevy

1980 Chevy Corvette

Gen 1 LG3 Small Block Chevy

1976-1982 Chevy El Camino

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy El Camino

2-Piece Rear Main 305 LG4

1986 Chevy El Camino

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1987 Chevy El Camino

Gen 1 L03 Small Block Chevy

1996-2002 Chevy Express 1500

Vortec L30 Small Block Chevy

1996-2002 Chevy Express 2500

Vortec L30 Small Block Chevy

1977-1982 Chevy G10

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy G10

2-Piece Rear Main 305 LG4

1986 Chevy G10

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1987-1995 Chevy G10

Gen 1 L03 Small Block Chevy

1977-1982 Chevy G20

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy G20

2-Piece Rear Main 305 LG4

1986 Chevy G20

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1987-1995 Chevy G20

Gen 1 L03 Small Block Chevy

1978-1979 Chevy G30

Gen 1 LG3 Small Block Chevy

1982 Chevy G30

Gen 1 LG3 Small Block Chevy

1985 Chevy G30

2-Piece Rear Main 305 LG4

1977-1982 Chevy Impala

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy Impala

2-Piece Rear Main 305 LG4

1977-1979 Chevy K10

Gen 1 LG3 Small Block Chevy

1981-1982 Chevy K10

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy K10

2-Piece Rear Main 305 LG4

1986 Chevy K10

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1976-1982 Chevy K10 Suburban

Gen 1 LG3 Small Block Chevy

1983-1985 Chevy K10 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy K10 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1988-1995 Chevy K1500

Gen 1 L03 Small Block Chevy

1996-1999 Chevy K1500

Vortec L30 Small Block Chevy

1977-1978 Chevy K20

Gen 1 LG3 Small Block Chevy

1980 Chevy K20

Gen 1 LG3 Small Block Chevy

1985 Chevy K20

2-Piece Rear Main 305 LG4

1977-1978 Chevy K20 Suburban

Gen 1 LG3 Small Block Chevy

1985 Chevy K20 Suburban

2-Piece Rear Main 305 LG4

1986 Chevy K20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1988-1995 Chevy K2500

Gen 1 L03 Small Block Chevy

1997-1998 Chevy K2500

Vortec L30 Small Block Chevy

1977-1981 Chevy K5 Blazer

Gen 1 LG3 Small Block Chevy

1982-1985 Chevy K5 Blazer

2-Piece Rear Main 305 LG4

1986 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1976 Chevy Laguna

Gen 1 LG3 Small Block Chevy

1976-1982 Chevy Malibu

Gen 1 LG3 Small Block Chevy

1983 Chevy Malibu

2-Piece Rear Main 305 LG4

1976-1977 Chevy Monte Carlo

Gen 1 LG3 Small Block Chevy

1978-1985 Chevy Monte Carlo

2-Piece Rear Main 305 LG4

1986 Chevy Monte Carlo

2-Piece Rear Main 305 LG4
Gen 1 L03 Small Block Chevy

1987-1988 Chevy Monte Carlo

Gen 1 L03 Small Block Chevy

1976-1979 Chevy Monza

Gen 1 LG3 Small Block Chevy

1976-1979 Chevy Nova

Gen 1 LG3 Small Block Chevy

1987 Chevy R10

Gen 1 L03 Small Block Chevy

1987 Chevy R10 Suburban

Gen 1 L03 Small Block Chevy

1987 Chevy R20

Gen 1 L03 Small Block Chevy

1987 Chevy V10

Gen 1 L03 Small Block Chevy

1963-1965 GMC 1000 Series

Gen 1 LE9 Small Block Chevy

1970-1973 GMC Jimmy

Gen 1 LE9 Small Block Chevy

1978-1982 GMC Jimmy

Gen 1 LE9 Small Block Chevy

1987 GMC Jimmy

Gen 1 L03 Small Block Chevy

1960-1966 GMC Suburban

Gen 1 L69 Small Block Chevy

1975-1977 Oldsmobile Starfire

305 Chevy Small Block V8

1985 Pontiac Firebird

2-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4
Gen 1 L69 Small Block Chevy
