GM Metric Stock Car Racing Front Suspension Kit

#91676070

GM Metric Stock Car Racing Front Suspension Kit

Ask a Question

Comes with a 5 on 5" bolt hole pattern for GM applications
Rotors have a 10.50 Inch diameter and have a stock Chevy/GM spindle
Features a black painted finish for added protection

Out of Stock

This item is currently not available

Shop all Speedway Complete Front Suspension Kits

Product Summary

Stock Car, IFS Front Suspension Type, Black

Comes with a 5 on 5" bolt hole pattern for GM applications
Rotors have a 10.50 Inch diameter and have a stock Chevy/GM spindle
Features a black painted finish for added protection
Engineered to retain the stock ride height
Kit includes the necessary coil springs needed

Comes as a Kit

View Kit Components

See more details

Key Specs

Front Suspension Type	IFS
Suspension Height Adjustment	Stock Height
Control Arm Style	Stamped
Shock Type	Not Included
Spring Type	Coil Spring

See more specs

Need To Know

This Product Will Ship Free

Need help?

Quick and Easy Returns

Installation Details

Installation Tips

Proper Break-In Procedure for Steel or Cast Iron Rotors

New steel/iron rotors should be bedded in before being used in racing conditions. Proper bedding will prepare the rotor surface, prolong the rotor's life, and make it more resistant to thermal checking or cracking under severe braking conditions. The following procedures should be performed when bedding in both steel and cast iron rotors. It is best to bed in a new rotor using a used set of pads, preferably ones which will not create heat rapidly. Generating heat too rapidly will thermal shock the rotors. Likewise, when bedding in a new set of brake pads it is best to perform the process on a used rotor. This new/used bedding process permits controlled bedding of each individual component.

Make sure rotor surfaces are free from oils, grease, and brake fluid. Run vehicle up to a moderate speed and make several medium deceleration stops to heat up the rotor slowly. This will help reduce the chance of thermal shock caused by uneven heating of the rotor. Pull into the pits and allow the rotor to cool to ambient air temperature. Care should be taken not to ride the brakes into the pits as this may hot spot the rotor causing premature wear to the surface or structural damage.

Have a Question?

Talk with one of our experts!

Call Us - 1.855.313.9176

Speedway Motors 91676070 Details

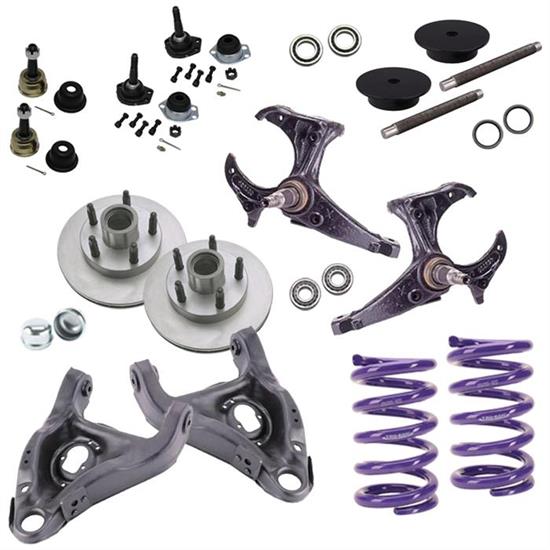

Kit Includes:

(2) '79-Up GM Metric Spindles, L/R
(2) '79-Up GM Metric Brake Rotors, 5 on 5 BP
(2) '78-Up GM Metric Lower Control Arms, L/R
(2) Tru-Coil Front Coil Springs, 5-1/2" x 9-1/2"
(2) GM K5208 Style Upper Ball Joints
(2) GM K6141 Style Lower Ball Joints
(2) GM Metric Inner Seals
(2) Outer Wheel Bearings
(2) Inner Wheel Bearings
(2) Wheel Dust Caps
(2) Jet Mod Weight Jack Bolts
(2) Jet Mod Weight Jack Mount Spring Cups

Guides & Documents

Control Arms Guide/Document (91034290)

Coil Springs Guide/Document (25255)

Speedway Motors 91676070 Specifications

KEY SPECS
MFG. Part #	91676070
Brand	Speedway Motors
Front Suspension Type	IFS
Suspension Height Adjustment	Stock Height
Control Arm Style	Stamped
Shock Type	Not Included
Spring Type	Coil Spring
Finish	Black
Bolt Pattern	5 on 5"
Rotor Diameter	10.50 Inch
Spindle Style	Chevy/GM Stock
Dropped Spindles	No
Dropped Axle	No
Dropped Control Arms	No
Spindles Included	Yes
Brakes Included	Yes
Steering Included	No
Rotor Shape	Round
Rotor Type	Solid
Welding Required	No

GENERAL
Sold in Quantity	Kit
Air Springs Included	No
Frame Brackets Included	No
