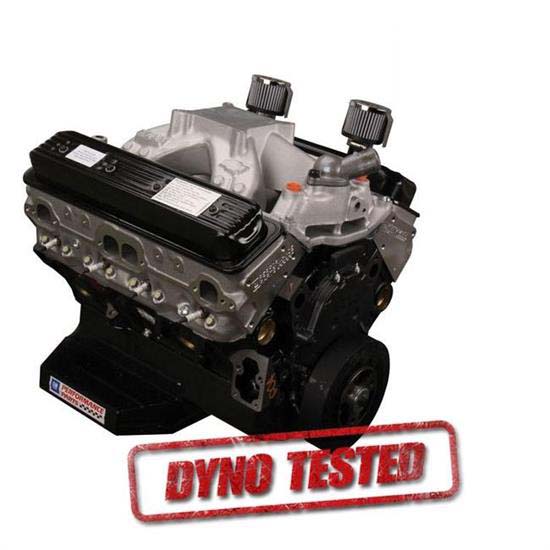

GM 19318604 CT400 GM-Sealed 604 Chevy Crate Engine, Dyno Tested
For a limited time only get a $250 Prepaid Visa Card with the purchase of a Chevrolet Performance crate engine or Chevrolet Performance transmission. For more details click here.
- Dyno-verified horsepower and torque
- Piston rings are broken-in using a proprietary dyno program
- Lash and timing are individually tuned
- Engine is ready to race, right out of the crate
- GM-sealed for equal competition
- Popular in Modified and Late Model classes*
- 400 HP @ 5500 RPM
- 400 ft. lbs. of torque @ 4500 RPM
- 4.00" x 3.48" bore x stroke
- 9.6:1 compression ratio
- 92 octane recommended fuel
- 4-bolt main caps
- Cam lift: .474" intake / .510" exhaust
- Cam duration @ .050": 208° intake / 221° exhaust
- 112° lobe separation
- 1.5:1 ratio aluminum roller rocker arms
- 2.00" Intake / 1.55" Exhaust valves
- Fully assembled long block
- Black steel valve covers w/ breathers
- Oil pump, pick-up, 8 quart oil pan
- Eliminator Vortec intake manifold
- Spark plugs
- 8" harmonic balancer
- Front timing cover
- GM seals
- Dyno sheet of your engine
- Requires the addition of a carburetor, starter, water pump, distributor, and plug wires (not included).
- Requires an externally balanced flywheel (not included).
- The 8-quart Circle Track oil pan is 7 inches deep at the sump. It will clear most GM rear-steer chassis with the stock engine location.
- For Circle Track Racing only - not intended for street use.
