G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit

G-Comp Unser Style Rear Brake Kit

Universal Fit, Rear Position, 8 on 7" Bolt Pattern, 12.19 Inch Rotor Diameter

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
X
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
G-Comp Unser Style Rear Brake Kit
Zoomed In Image
Part # 3501501
Starting from
$399.99
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • If you're planning on a high-horsepower G-machine build using our G-comp line of performance suspension, stopping is vital to putting together a top performer - no matter if you are committed to track days or just spirited street driving
  • We've packed together the exact same brake components we use on our Team Speedway G-Comp equipped race cars to provide you with the same stopping power as the pros!

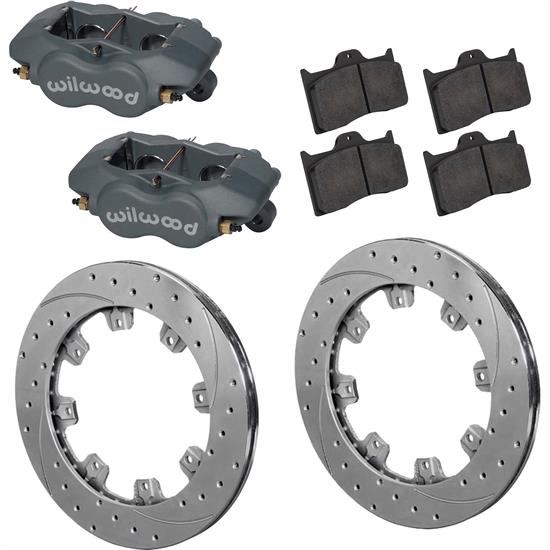

  • The Unser Style Rear Brake kit comes complete with Wilwood Forged Dynalite calipers, Wilwood Poly D10 brake pads, and Speedway Motors Pro-Lite Vented Rotors, and all the necessary hardware to get things mounted up to your G-Comp ride
  • Wilwood Forged Dynalite calipers are the strongest calipers in its class, weighing in at 2.80 lbs!
  • The 4-piston caliper has greater strength and reliability due to the forged material with reduced brake deflection

Details

Position:
Rear
Bolt Pattern:
8 on 7"
Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Select Rotor/Caliper to see
Color:
Select Rotor/Caliper to see
Parking Brake Provision:
No
MFG. Part #:
Select Rotor/Caliper to see
Bore Size:
1.75"
Rotor Hat Bolt Pattern:
8 x 7.00"
Rotor Thickness:
0.81"
Rotor Shape:
Round
Hardware Included:
Yes
Sold in Quantity:
Kit
Total Piston Area:
4.80 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Select Rotor/Caliper to see
Rotor Finish:
Select Rotor/Caliper to see
Rotor Material Type:
Select Rotor/Caliper to see
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
Front Rotor Included:
No
Rear Rotor Included:
Yes
Front Caliper Included:
No
Rear Caliper Included:
Yes
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Brake Lines Included:
No
Parking Brake Cables Included:
No
Brake Hoses Included:
No

Info

 If you're planning on a high-horsepower G-machine build using our G-comp line of performance suspension, stopping is vital to putting together a top performer - no matter if you are committed to track days or just spirited street driving. We've packed together the exact same brake components we use on our Team Speedway G-Comp equipped race cars to provide you with the same stopping power as the pros!

The Unser Style Rear Brake kit comes complete with Wilwood Forged Dynalite calipers, Wilwood Poly D10 brake pads, and Speedway Motors Pro-Lite Vented Rotors, and all the necessary hardware to get things mounted up to your G-Comp ride.

Wilwood Forged Dynalite calipers are the strongest calipers in its class, weighing in at 2.80 lbs! The 4-piston caliper has greater strength and reliability due to the forged material with reduced brake deflection. This equates to increased clamping efficiency with less pedal travel.

  • Piston Count: 4
  • Area (in²): 4.80
  • Piston Type: Stainless
  • Fits .75" - 0.81" wide by 10" - 13.06" diameter rotors
  • Pad Area (in²): 6.36
  • Pad Volume (in³): 2.1
  • Mount Type: Lug
  • Mount Side: Universal
  • Weight(Lbs): 2.80

The Speedway Motors Pro-Lite Vented Rotors are constructed from premium grade, long grain carbon which exhibits long wear, high thermal stability, and excellent resistance to distortion from high heat. Straight vane rotor technology allows for the rotor to be used on left or right side mounted positions.

  • Thickness: .81"
  • Outside Diameter: 12.19"
  • # Holes: 8
  • Bolt Circle: 7"
  • Thread: Thru
  • Weight: 8.70 lbs

SRP Drilled Performance Rotors feature a specially engineered directional cross drill and face slot pattern that improve brake response and pad performance throughout the entire range of light to heavy braking. The venting and cleaning action of the holes and slots will reduce pad glaze and disperse gasses and heat generated during the pad to rotor interface. The holes and slots also inhibit irregular pad compound build-up on the rotor faces resulting in smoother engagement and improved pedal response in all conditions. The material removed also contributes to lower rotating and unsprung suspension weight.

  • Premium grade, medium weight castings.
  • Suitable for moderate temperature racing to street use.

Wilwood Poly-D 10 Brake pads top off this incredible setup, which provides low to moderate wear, with medium friction, performing in the low to moderate temperature range. This pad set is perfect for light-duty track use and street driving. This provides a great braking experience to compliment your G-Comp rear suspension kit at an incredible value!

  • Medium friction, low to medium temperature range.
  • Good cold torque response.
  • Low to moderate wear rate

Notes

  * This rear brake kit was designed and put together to be used with our G-Comp rear suspension kits. If using in any other application, additional fabrication/cutting/welding may be required to make it work on your application.

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
Select a Rotor/Caliper above to see what items are in this kit.
