G-Comp Unser Edition Universal Front Suspension Kit
- Comes as a complete weld-in front subframe assembly for converting almost any vehicle to modern-day suspension geometry and is available in 56", 58", 60", and 62" track widths
- Includes G-Comp Unser Edition spindles with C7 Corvette hubs and is engineered for optimum handling and vastly improved control
- Unser Edition offers overall increased camber gain for better handling and an additional 3° caster over standard G-Comp arms
- Provides camber adjustment using shim plates and caster adjustment using inserts
- Unser Edition is designed with additional stiffness, race car-like adjustability, and can run wider wheels/tires while maintaining adequate turning angle and reducing scrub radius
Speedway Motors' G-Comp line of suspension parts is engineered for performance, strength, and value. This universal G-Comp front suspension kit is a complete weld-in subframe assembly for converting almost any vehicle to modern-day suspension geometry and is available for 56", 58", 60", and 62" track widths. This Pro-Touring front end is an all-new performance IFS designed around Speedway's exclusive fabricated uprights (uses C7 Corvette hubs), and engineered for optimum handling and vastly improved control. G-Comp subframe kits will turn your car into a real G-machine, ready to take on the autocross, road course, or the street
The Unser Edition is designed with additional stiffness and race car like adjustability to make the most out of a caged car in autocross competition and high-performance driving. The Unser Edition front end is designed to run wider wheels and tires while maintaining adequate turning angle and reducing scrub radius, for super tight cornering!
The G-Comp Advantage
- Power rack and pinion steering
- Overall increased camber gain for better handling
- Camber adjustment using shim plates
- Caster adjustment using inserts
- Kit comes with a 0.250" wall - 1-1/4" O.D. splined sway bar
- Weld-on subframes available for 56", 58", 60", and 62" track width
The Unser Advantage
- The Unser Edition is an enhanced G-Comp front end with the following components:
- Subframe features a chassis brace machined from billet aluminum
- The billet chassis brace holds the upper shock mount
- The upper shock mount position is adjustable, permitting use of multiple length shocks - Adjust your shocks in minutes!
- The new upper shock mount provides clearance for springs with large wire diameter
- The Unser version has an additional 3° caster over standard G-Comp arm
- Inverted ball joint on upper control arm allows use of deeper backspace wheels and tighter turning angle
- Lower control arm has a recessed front strut to increase tire clearance
- Up to 275/35R18 tires can be used in competition
- Allows for a large range of front ride height adjustment, working with a wider range of shock lengths and strokes
- Designed to use C6 Corvette style brake kits
Recommended Brake Kit:
Recommended Coil-Over Shocks and Springs (2 of each required):

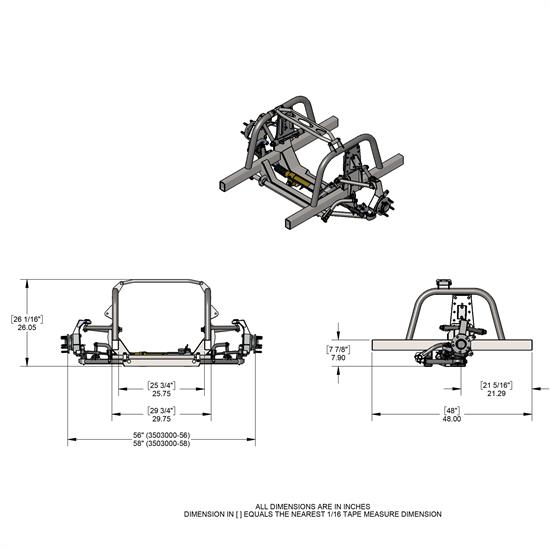

- The 56" & 58" subframes are 29-3/4" outside of rails and use 2" x 3" x .120" wall tube
- The 60" & 62" subframes are 33-3/4" outside of rails and use the same 2" x 3" tube
- These frame rail dimensions are consistent for the 3502000 G-Comp systems and the 3503000 Unser Edition subframes
Unser Edition kits will test your drive train! Your power will be hooked to the ground, so be prepared!
- Depending on how and where you drive, your car can create huge G forces. You may need to Dry Sump your engine so it won’t starve for oil.
- An oil pressure light is a MUST, as our expert drivers can attest, time is limited during competition to watch the gauges.
- At least one day professional driving class is recommended for cars equipped with engines exceeding 500HP.
To learn more about the G-Comp line of performance muscle car suspension parts, CLICK HERE.
3503000 Instructions (PDF)
NotesThis item is made to order with a production-to-ship estimated average time frame of 30 business days
