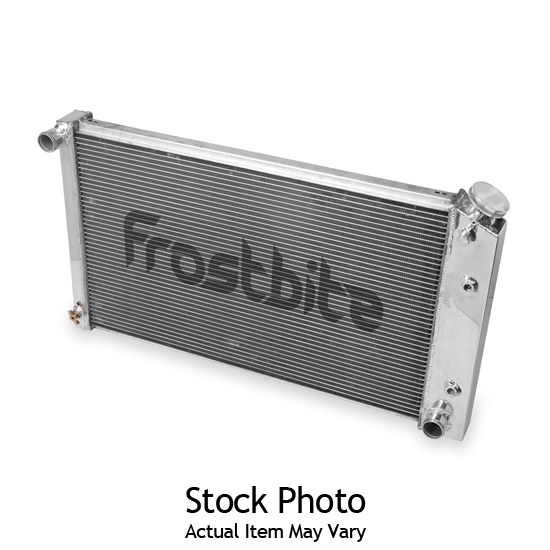

Frostbite FB167 Aluminum Radiator, 4 Row, 1973-1991 Chevy/GMC Pickup

-7%

#425FB167

Frostbite FB167 Aluminum Radiator, 4 Row, 1973-1991 Chevy/GMC Pickup

Name: Frostbite FB167 Aluminum Radiator, 4 Row, 1973-1991 Chevy/GMC Pickup
Brand: Frostbite Performance Cooling
SKU: 425FB167
Price: 675.95 USD
Availability: InStock

Write a Review

Ask a Question

$675.95

/each

Factory Shipped

$731.95

Save $56.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle and engine to verify Fitment

Select Vehicle

Select Engine

Product Summary

Single Pass Radiator Style, Aluminum, 4 Row Quantity

See more details

Key Specs

MFG. Part #	FB167
Radiator Style	Single Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper driver side

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Frostbite Performance Cooling FB167 Details

High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments.

Holley is proud to introduce its latest offering – Frostbite Performance Cooling Products.

Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications.

When it comes to keeping your ride cool, Make it Frostbite!

1973-1991 Chevy/GMC P/U V8 (307/350/400/454) (4-Row) equipped with 19" tall core

100% TIG welded (brazed) seams
Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings)
Billet Aluminum Filler Neck and OEM style Brass Petcock
More cooling fins per inch for more efficient cooling
Custom Frostbite High Performance 16lb. radiator cap
Polished top and tanks for custom show appearance
4-Row Radiators supporting applications with 550-1000 horsepower
Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available
Manufacturer’s 1-year Limited Warranty

Application

1973-1974 Chevy C10 Pickup V8
1973-1974 Chevy C20 Pickup V8
1973-1974 Chevy C30 Pickup V8
1973-1974 Chevy K10 Pickup V8
1973-1974 Chevy K20 Pickup V8
1973-1974 Chevy K30 Pickup V8
1973-1974 GMC C15/C1500 Pickup V8
1973-1974 GMC C25/C2500 Pickup V8
1973-1974 GMC C35/C3500 Pickup V8
1973-1974 GMC K15/K1500 Pickup V8
1973-1974 GMC K25/K2500 Pickup V8
1973-1974 GMC K35/K3500 Pickup V8
1975-1978 GMC C15 V8
1975-1978 GMC C15 Suburban V8
1975-1978 GMC C25 V8
1975-1978 GMC C25 Suburban V8
1975-1978 GMC C35 V8
1975-1978 GMC K15 V8
1975-1978 GMC K15 Suburban V8
1975-1978 GMC K25 V8
1975-1978 GMC K25 Suburban V8
1977-1978 GMC K35 V8
1973-1986 Chevy C10 Suburban V8
1973-1986 Chevy C20 Suburban V8
1973-1986 Chevy K10 Suburban V8
1973-1986 Chevy K20 Suburban V8
1975-1986 Chevy C10 V8
1975-1986 Chevy C20 V8
1975-1986 Chevy C30 V8
1975-1986 Chevy K10 V8
1975-1986 Chevy K20 V8
1975-1986 Chevy K5 Blazer V8
1977-1986 Chevy K30 V8
1979-1986 GMC C1500 Suburban V8
1979-1986 GMC C2500 Suburban V8
1979-1986 GMC K1500 Suburban V8
1979-1986 GMC K2500 Suburban V8
1987-1988 Chevy R10 Suburban V8
1987-1988 Chevy R20 Suburban V8
1987-1988 Chevy V10 Suburban V8
1987-1988 Chevy V20 Suburban V8
1973-1991 Chevy Blazer V8
1973-1991 GMC Jimmy V8
1979-1991 GMC C1500 V8
1979-1991 GMC C2500 V8
1979-1991 GMC C3500 V8
1979-1991 GMC K1500 V8
1979-1991 GMC K1500 V8
1979-1991 GMC K2500 V8
1979-1991 GMC K3500 V8
1987-1991 GMC R1500 Suburban V8
1987-1991 GMC R2500 Suburban V8
1987-1991 GMC V1500 Suburban V8
1987-1991 GMC V2500 Suburban V8
1991 GMC C3500Hd V8

Charts

Installation Instructions

Guides & Documents

Radiators Installation Instructions (425FB167)

Frostbite Performance Cooling FB167 Specifications

KEY SPECS
MFG. Part #	FB167
Brand	Frostbite Performance Cooling
Radiator Style	Single Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper driver side
Outlet Location	Lower passenger side
Row Quantity	4
Tube Size	0.69"
Overall Width Range	33.00" to 33.99"
Overall Width	33.25"
Overall Height Range	20.00" to 20.99"
Overall Height	20.5"
Overall Thickness	3"
Core Width Range	28.00" to 28.99"
Core Width	28.25"
Core Height Range	18.00" to 18.99"
Core Height	18.75"
Core Thickness	2.8"
Finish	Polished
Cooling Fan	Not Included
Transmission Cooler	No
Shroud Included	No
Inlet Size	1.5
Outlet Size	1.5
Radiator Cap Included	Yes

GENERAL
Sold in Quantity	Each
GTIN Code	090127730225
Fan Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1973-1991 Chevy Blazer

1973-1986 Chevy C10

1973-1986 Chevy C10 Suburban

1973-1986 Chevy C20

1973-1986 Chevy C20 Suburban

1973-1986 Chevy C30

1973-1986 Chevy K10

1973-1986 Chevy K10 Suburban

1973-1986 Chevy K20

1973-1986 Chevy K20 Suburban

1973-1986 Chevy K30

1975-1986 Chevy K5 Blazer

1987 Chevy R10 Suburban

1987 Chevy R20 Suburban

1987 Chevy V10 Suburban

1987 Chevy V20 Suburban

1975-1978 GMC C15

1975-1978 GMC C15 Suburban

1973-1974 GMC C15/C1500 Pickup

1979-1991 GMC C1500

1975-1978 GMC C25

1975-1978 GMC C25 Suburban

1973-1974 GMC C25/C2500 Pickup

1973-1974 GMC C25/C2500 Suburban

1979-1991 GMC C2500

1975-1978 GMC C35

1973-1974 GMC C35/C3500 Pickup

1979-1991 GMC C3500

1973-1991 GMC Jimmy

1975-1978 GMC K15

1975-1978 GMC K15 Suburban

1973-1974 GMC K15/K1500 Pickup

1973-1974 GMC K15/K1500 Suburban

1979-1991 GMC K1500

1975-1978 GMC K25

1975-1978 GMC K25 Suburban

1973-1974 GMC K25/K2500 Pickup

1973-1974 GMC K25/K2500 Suburban

1979-1991 GMC K2500

1977-1978 GMC K35

1973-1974 GMC K35/K3500 Pickup

1979-1991 GMC K3500

1987 GMC R1500

1990-1991 GMC R1500 Suburban

1987 GMC R2500

1987-1991 GMC R2500 Suburban

1987 GMC R3500

1987 GMC V1500

1987-1991 GMC V1500 Suburban

1987 GMC V2500

1987-1991 GMC V2500 Suburban

1987 GMC V3500
