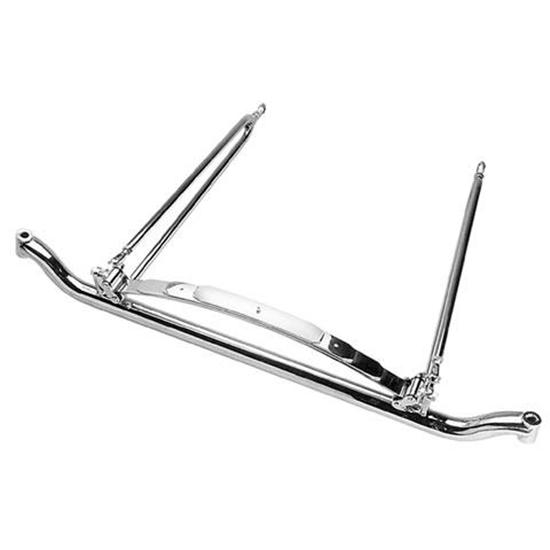

Front End Assembly for Model A Frame, Tube Axle Kit, Chrome
Front End Assembly for Model A Frame, Tube Axle Kit, Chrome

Front End Assembly for Model A Frame, Tube Axle Kit, Chrome

Straight Axle Front Suspension Type, 3 Inch Lowered Suspension Height Adjustment, Chrome

0 Reviews | 3 Answered Questions
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Front End Assembly for Model A Frame, Tube Axle Kit, Chrome
Front End Assembly for Model A Frame, Tube Axle Kit, Chrome
Front End Assembly for Model A Frame, Tube Axle Kit, Chrome
X
Front End Assembly for Model A Frame, Tube Axle Kit, Chrome
Zoomed In Image
We estimate this item will ship on or before October 4th.
Part # 91639515
$1,427.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Kit includes an axle, 27" radius rods, leaf spring and shackles
  • Pair them with chrome Pro shocks
  • Kit works well with the SM300 Pro Shocks (shocks not included)
  • These front suspension packages make it easier to begin transforming your Model A frame into a rolling chassis
  • Kits include a 3" drop tube axle, 27" radius rods, leaf spring and shackles

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Front Suspension Type:
Straight Axle
Suspension Height Adjustment:
3 Inch Lowered
Control Arm Style:
Radius Rod
Shock Type:
Not Included
Spring Type:
Leaf Spring
Finish:
Chrome
Bolt Pattern:
Not Applicable
Rotor Diameter:
Not Included
Spindle Style:
Ford Stock
Dropped Spindles:
No
Dropped Axle:
Yes
Dropped Control Arms:
No
Front Leaf Spring Style:
Spring-Over Axle
Spindles Included:
No
Steering Included:
No
MFG. Part #:
91639515
Welding Required:
No

Info

These front suspension packages make it easier to begin transforming your Model A frame into a rolling chassis. Kits include a 3" drop tube axle, 27" radius rods, leaf spring and shackles. Kit works well with the SM300 Pro Shocks (shocks not included).

Axle kit designed to work with frame #916-57045.

Installation Tips

Installation Guide (PDF)

Charts

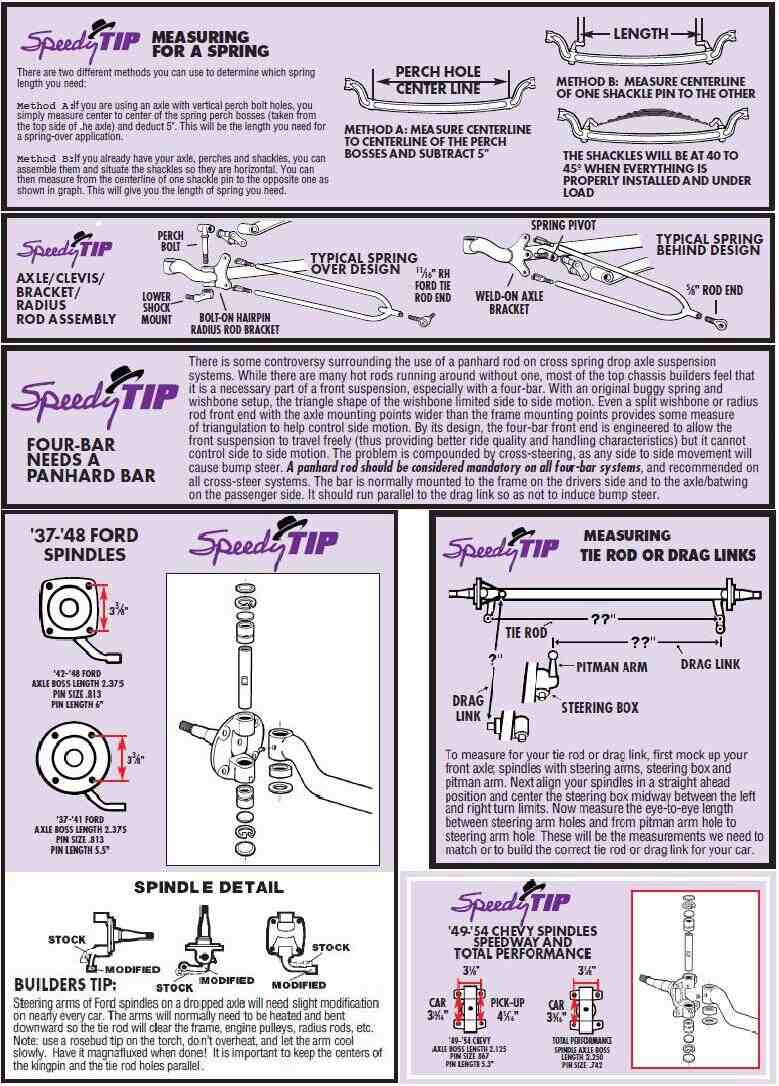

Front Axle/Suspension Tech Tips (JPG)

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Chrome Front Tube Axle w/ Perch Bolt Holes, Ford Spindle
    Qty x 1
  • Front Hairpin Radius Rods, 27 Inch, Chrome Steel
    Qty x 1
  • Super Glide® Front Spring, 48 Inch Axle, Standard Eye, Chrome
    Qty x 1
  • Speedway Front Solid Axle Leaf Spring Perch, Chrome Forged Steel
    Qty x 1
  • Speedway Forged Steel Lower Shock Mounts for Front Solid Axle, Chrome
    Qty x 1
  • Transverse Leaf Spring Shackles w/ Nylon Bushings, Chrome
    Qty x 1
  • Chromoly Heim Joint Rod End, 5/8-18 RH Male Thread, 5/8 Inch Hole
    Qty x 2
  • Standard Clevis, 5/8 Inch RH, 3/8 Inch Slot, Chrome
    Qty x 4
  • Stainless Jam Nut, 5/8 Inch-18 RH NF Fine Thread
    Qty x 6
  • Hardware - Chrome Front End
    Qty x 1
  • Speedway Bolt-On Hairpin Radius Rod Axle Brackets
    Qty x 1
  • Chrome Plated Model T thru 1934 U-Bolts
    Qty x 1
  • U-Bolt Clamping Plate Set
    Qty x 1
  • Radius Rod Rear Bolt Kit
    Qty x 1
