Product Summary

Universal Fit, 3/4"-16 Thread Pitch

    Key Specs

    MFG. Part #HP1
    Thread Pitch3/4"-16
    Overall Height5.75"
    Outside Diameter3.72"
    Gasket Outside Diameter2.81"

    Need To Know

    Free Shipping on Orders Over $149

    Quick and Easy Returns

    Details

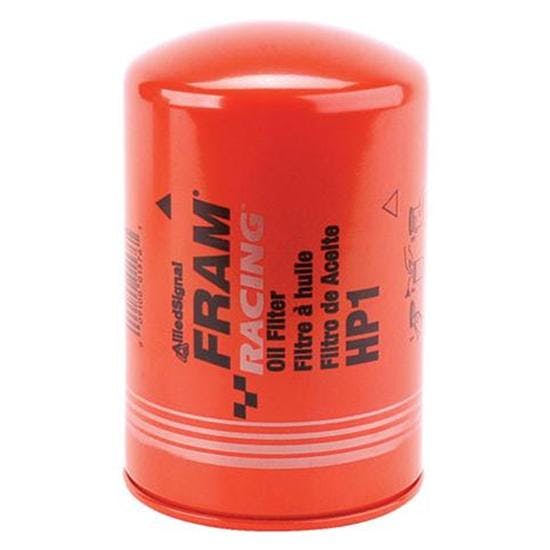

    Fram Racing oil filters have a heavy-duty steel body construction to resist high pressure surges and external impact. Rated at 10 GPM with a maximum 200 psi operating pressure. The HP1 has a pressure relief valve and a 25 micron rating.

    • Low-restriction racing media designed for high oil flow
    • Spiral-shaped center tube to provide protection against collapse
    • Heavy gauge steel tapping plate to withstand high pressure flexing
    • Screen-over bypass valve to provide additional protection against larger contaminants
    • Relief valve developed uniquely for high oil flow racing conditions
    • Product Type: High Perf. Full-Flow Lube Spin-on
    • Anti-Drain Valve: Yes
    • Gasket Thickness: .33 "
    • Relief Valve Setting: 22 PSI
    • Product Type: High Perf. Full-Flow Lube Spin-on
    • Anti-Drain Valve: Yes
    • Gasket Thickness: .33 "
    • Relief Valve Setting: 22 PSI

    Specifications

    KEY SPECS
    MFG. Part #HP1
    BrandFram
    Thread Pitch3/4"-16
    Overall Height5.75"
    Outside Diameter3.72"
    Gasket Outside Diameter2.81"
    GENERAL
    Gasket Inside Diameter2.42"
    Sold in QuantityEach
    NotesSame application as PH8A, PH16, and PH43.
    GTIN Code009100752307
