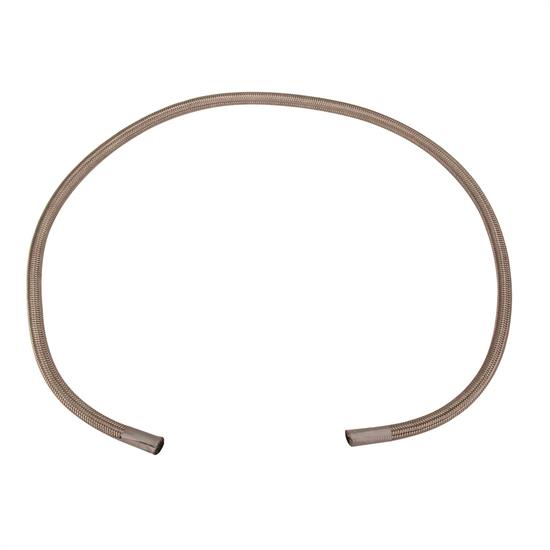

Fragola 602010 Series 6000 PTFE Lined Hose, -10 AN, 20 FT Roll
Universal Fit, -10 AN Hose Size, Stainless Outer Braid, 1500 psi Operating Pressure
The properties of P.T.F.E. make it a natural for all highly corrosive applications like automotive brake fluid. P.T.F.E. also works well for hot oil and power steering fluid. These hoses will take high pressure and cycle over and over without failure, and they also are easily suitable for use with nitrous oxide.
P.T.F.E. powder is extruded into a smooth bore tube product. The tube is then fed into a machine that weaves stainless wire into the familiar braided pattern. The hose is inspected 100% and any flawed sections are discarded.
- -10 AN
- P.T.F.E. lined
- .500" nominal inside diameter
- Working pressure: 1,500 psi.
- Burst pressure: 6,000 psi.
- Minimum bend radius: 6.5"
- 20' roll of hose
- Automatic Transmission Fluid
- Brake Fluid
- Engine Coolant
- Engine Oil
- Power Steering Fluid
