Forged Street SB Chevy 377 Rotating Assembly, 6 In I-Beam Rods
Forged Street SB Chevy 377 Rotating Assembly, 6 In I-Beam Rods
377 Chevy Small Block V8, Forged Aluminum Piston Material, I-Beam Connecting Rod Type
On Backorder
Ships FREE
Forged Street SB Chevy 377 Rotating Assembly, 6 In I-Beam Rods
We estimate this item will ship on or before June 8th.
Part # 9151228
$1,499.99
kit
Add to Cart
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Item 1 of 1
Icon Chevy 377 Forged Pistons, Dish, 6.0 Rod
Size
Next
Details
Piston Material:
Forged Aluminum
Connecting Rod Type:
I-Beam
Connecting Rod Length:
6.000"
Crankshaft Material:
Forged 4340 Steel
Rear Main Seal Style:
2-piece
Main Journal Style:
400 mains
MFG. Part #:
9151228
Piston Style:
Dish
Piston Ring Style:
C
Piston Weight:
479 grams
Wrist Pin Weight:
132 grams
Wrist Pin Diameter:
.9272"
Stroke:
3.48"
Connecting Rod Material:
Forged 4340 Steel
Connecting Rod Weight:
605 grams
Connecting Rod Bolt Diameter:
7/16"
Main Journal Diameter:
2.650
Rod Journal Diameter:
2.10"
Bearing Construction:
Bi-metal
Bearing Undersize:
Standard
Narrowed Bearing:
Yes
Coated Bearing:
No
Sold in Quantity:
Kit
Info
These rotating assembly engine rebuild kits are designed for street use and include Keith Black forged pistons, Scat 4340 Pro-Comp I-beam rods and a Scat 4340 forged crankshaft.
All Scat 4340 cranks are 2-piece rear main seal, internally balanced and weigh approximately 51-55 lbs.
These assemblies will require balancing either by us or your machine shop. All kits can be internally balanced.
All balancing is done with our state-of-the-art Hines balancer by race mechanics with over 30 years of experience! A kit purchased with the optional balance job will ship in 24-48 hours.
Rings not included. Journals are standard size. Due to larger journal side radius on this aftermarket crankshaft, you must use Clevite H-series, King bearings or equivalent. Includes spacers for main bearings.
NOTE: Piston rings are not included and must be purchased separately.
Item Details
Includes spacers for main bearingsNotes

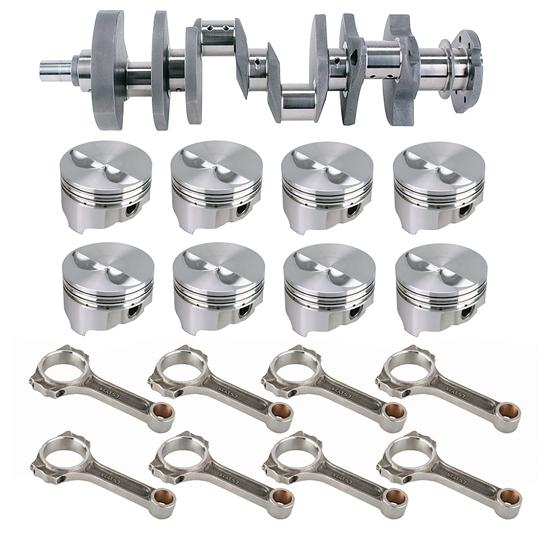

Kit includes:
- Scat 4340 Forged Steel Crankshaft
- Straight shot and chamfered oil holes
- Nitride hardened and shot peened
- Lightening holes in all rod throws
- Large radius on all journals
- Scat Pro Comp 4340 I-Beam Rods
- Stroker clearanced
- ARP 7/16" cap screw bolts
- Bushed pin
- 6.0" rod: 629 grams
- Crank pin: 2.100"
- Wrist pin: .927"
- B.E. width: .940"
- Set of 8 rods
- KB Signature Series Forged Pistons
- Dished
- 2618 aluminum alloy construction
- T-6 heat treated
- 4.000" bore pistons available in standard, .030, .040, or .060 sizes
- 4.125" bore pistons available in standard, .030 or .040 sizes
Some parts are not legal for use in California or other states with similar laws/regulations
What's In The Kit
Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
-
Icon Chevy 377 Forged Pistons, Dish, 6.0 RodPart # 474764Qty x 1
-
Scat 26000716 Small Block Chevy 4340 I-Beam Rods, 6.0 Inch, Bushed PinPart # 91015232Qty x 1
-
Scat 435010 Chevy 350 Crankshaft, 4340 Forged, 3.48 Stroke, 350 MainPart # 91515500Qty x 1
-
Main Bearing Spacers - Small Block Chevy, 350 CrankPart # 5051120Qty x 1
-
King HP Series Chevy 350/400 Large Journal Engine Rod Bearings, StdPart # 910807HP-STDQty x 1
-
King HP Series Chevy 350 Large Journal Engine Main Bearings-StandardPart # 910557HP-STDQty x 1
