Forged Dynalite-1.75/.380
Forged Dynalite-1.75/.380

Forged Dynalite-1.75/.380

Oval Track Cars, Four Caliper Pistons, 1.75" Piston Diameter, 0.38" Rotor Thickness, Aluminum

1 Review | 1 Answered Question
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Forged Dynalite-1.75/.380
Forged Dynalite-1.75/.380
Zoomed In Image
Part # 8351206818
Save 7%
$124.99
$134.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Caliper Pistons:
Four
Piston Diameter:
1.75"
Rotor Thickness:
0.38"
Material Type:
Aluminum
Finish:
Anodized
MFG. Part #:
120-6818
Bore Size:
1.75"
Color:
Black
Centerline of Holes:
5.25"
Overall Length:
7.01"
Thread Pitch:
1/8-27 NPT
Sold in Quantity:
Each
Rotor Diameter:
13.06 Inch
Caliper Mounting Type:
Lug
Mounting Side:
Universal
Bore 2 Size:
1.75"
Total Piston Area:
4.80 sq. in.
Mount Hole Size:
0.39"
Mounted Height:
2.03"
Pad Area:
6.36 sq. in.
Pad Volume:
2.10 cu. in.
GTIN Code:
889545005073

Info

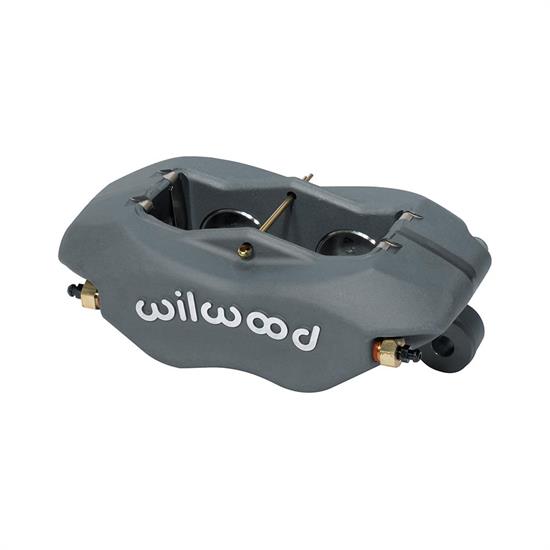

The Forged Billet Dynalite is widely used in Road Race, Late Model Dirt, and Open Wheel motorsports. The latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models.

Forged Dynalites are the strongest calipers in the class, with weights starting at 2.80 pounds. Without even considering the overall greater strength and reliability of the forging, the reduced deflection tendencies and the resulting decrease in fluid volume displacement translate to increased clamping efficiency with less pedal travel. The bottom line is a taller pedal and better stopping power.

  • Pistion Count: 4
  • Area (in²): 4.80
  • Piston Type: Stainless
  • Fits .75" - 0.38" wide by 10" - 13.06" diameter rotors
  • Pad Area (in²): 6.36
  • Pad Volume (in³): 2.1
  • Mount Type: Lug
  • Mount Side: Universal
  • Weight(Lbs): 2.80
Some parts are not legal for use in California or other states with similar laws/regulations
