Product Summary

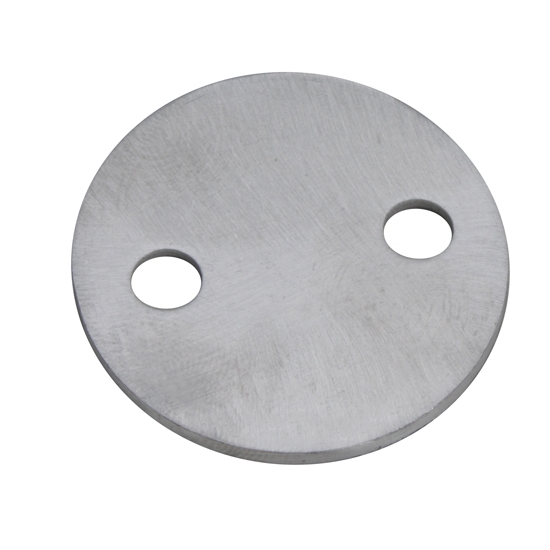

Universal Fit, 1.25" Overall Diameter, Aluminum

  • Our aluminum secondary throttle plates are for three deuce carbs with out-of-round butterflies
  • Fits all 3 bolt AA-1 Holleys marked 94--1--and--1 1/16 on the back of the bowl section
  • Beveled on a 12 degree angle so they will shut tight in the throttle bore
  • Use only in carbs that you're not using the idle circuits in

Key Specs

MFG. Part #91011635
Overall Diameter1.25"
Overall Thickness.059"
Material TypeAluminum
FinishNatural

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Speedway Motors 91011635 Details

About the only way your 94 could have a tight throttle would be if you found a NOS carb somewhere. Using old worn throttle plates make carbs sluggish and increases your idle speed. Our aluminum secondary throttle plates are for three deuce carbs with out-of-round butterflies.

  • Use in a secondary carb in a multi-carb set up
  • Beveled on a 12 degree angle so they will shut tight in the throttle bore without sticking
  • Eliminate all throttle stop screws when using these plates without fear of your plates wedging in the bores
  • Use only in carbs that you're not using the idle circuits in

Note: Screws not included (sold separately with extended throttle shafts).

Application

  • Fits all 3 bolt AA-1 Holleys marked 94--1--and--1 1/16 on the back of the bowl section
  • Will not fit the big 2110 Holley marked 1 5/32

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Speedway Motors 91011635 Specifications

KEY SPECS
MFG. Part #91011635
BrandSpeedway Motors
Overall Diameter1.25"
Overall Thickness.059"
Material TypeAluminum
FinishNatural
GENERAL
Centerline of Holes.740"
Sold in QuantityEach
