Add to Cart
$2,390.00
FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750
FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750

FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750

Universal Fit, 4-Barrel Square Bore Carburetor Flange Type, Throttle Body Injection Style

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750
FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750
FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750
FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750
FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750
FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750
X
FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750
FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750
FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750
FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 750
Zoomed In Image
Part # 52174014
$2,390.00
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Carburetor Flange Type:
4-Barrel Square Bore
Injection Style:
Throttle Body
User Tunable:
Yes
Self Tuning:
Yes
Injectors Included:
Yes
Injector Size:
100 lbs./hr.
Intake Manifold Included:
No
Metering Style:
Speed density
EGR:
No
CFM:
800 CFM
Throttle Body Included:
Yes
Throttle Body Material:
Cast Aluminum
Throttle Body Finish:
Polished
Venturi Quantity:
4
Fuel Pump Included:
No
Fuel Rails Included:
Yes
Calibration Module Included:
Yes
ECM Included:
Yes
Wiring Harness Included:
Yes
Fuel Pressure Regulator Included:
Yes
Distributor Included:
No
MAP Sensor Included:
Yes
IAC Motor Included:
Yes
IAT Sensor Included:
Yes
TPS Sensor Included:
Yes
Use with Power Adder:
No
Max Horsepower Rating:
650
MFG. Part #:
74014
GTIN Code:
090127728994
Sold in Quantity:
Kit

Info

The FiTech Ultimate LS EFI kit is the ultimate LS ECU for DIY enthusiasts who want full control over their engine. Avoid having to buy additional software programs, learning how to think in computer code, or relying on a questionable 3rd party tuner. FiTech puts the engine and transmission EFI management back in your hands. The included color touch screen handheld controller allows for custom tuning adjustments to your LS engine as well as a self-learning program to get you on the road.

Leave the factory LS computer, wiring harness and intake in the junkyard where they belong. The FiTech Ultimate LS combo is a perfect match for 6.2 LS truck motors with tall and not so elegant factory intakes. The low profile fabricated sheet metal intake features short runners for a tricked out engine bay as compared to factory plastic engine covers. FiTech technology is custom cam friendly and is suitable for use with most LS3 and 6.2 L92 engines with rectangular port cylinder heads producing up to 750 HP.

FiTech Fuel Injection now offers the Hy-Fuel In-Tank Retrofit Kit. You can experience the advantage of a high volume fuel system with the pump inside the fuel tank. With the pump submerged in fuel, it will run quieter and last longer. This is the easiest way to convert your existing or new fuel tank to an in-tank EFI fuel system.

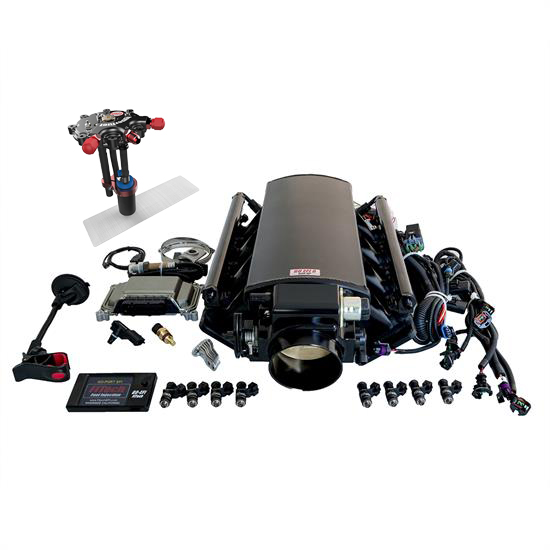

  • Ultimate LS3/L92 750HP Kit W/ Trans Control &HyperFuel In-tank Fuel Pump
  • Fabricated LS sheetmetal intake manifold
  • 102mm billet LS throttle body
  • Fuel rail with 55 lb/hr fuel injectors
  • Handheld controller with data logging capability and windshield mount
  • Fully programmable self-learning LS ECU
  • LS wiring harness
  • Wideband O2 sensors
  • Includes Hy-Fuel tank

Installation Instructions (PDF)

Warranty

Notes

  • Includes trans control

The Ultimate LS 750HP Kit with trans control for LS3/L92 (Part No: #70014) are a complete self-tuning induction systems for LS engines designed for the do-it-yourself hot rodder to the professional EFI tuner! This system is ready to go with everything needed to complete the induction system of your LS engine and get you on the road easily and faster than any system on the market today. Forget sourcing mismatched parts and cutting and splicing old harnesses and re-flashed ECU’s from “Craigs List” tuners. FiTech’s Ultimate EFI is a complete Kit. Suitable for that junkyard 5.3 to a stroker 427, we have you covered! Check out the list of features and you will wonder why it’s never been so simple to ditch that old factory hardware or top off that fresh long block. We have taken the work out of getting your new or pull-out LS up and running in a flash. That’s why we call this kit the Ultimate EFI.

Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • FiTech 70014 Ultimate LS EFI, LS3/L92, 750 HP, w/ Trans Control
    Qty x 1
  • HyperFuel 40019 Hy-Fuel Single Pump In-Tank Retrofit Kit
    Qty x 1
