FiTech Ultimate LS EFI Fuel Injection System w/Hy-Fuel Tank, 500
Universal Fit, Multi-port Injection Style, User Tunable, Self Tuning, Injectors Included









Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Details
Info
The FiTech Ultimate LS EFI kit is the ultimate LS ECU for DIY enthusiasts who want full control over their engine. Avoid having to buy additional software programs, learning how to think in computer code, or relying on a questionable 3rd party tuner. FiTech puts the engine and transmission EFI management back in your hands. The included color touch screen handheld controller allows for custom tuning adjustments to your LS engine as well as a self-learning program to get you on the road.
Leave the factory LS computer, wiring harness and intake in the junkyard where they belong. The FiTech Ultimate LS combo is a perfect match for 5.3 LS and 6.0 LS truck motors with tall and not so elegant factory intakes. The low profile fabricated sheet metal intake features short runners for a tricked out engine bay as compared to factory plastic engine covers. FiTech technology is custom cam friendly and is suitable for use with most 4.8 LS, 5.3 LS, LS1/LS6, and 6.0 LS engines with cathedral port cylinder heads producing up to 500 HP.
FiTech Fuel Injection now offers the Hy-Fuel In-Tank Retrofit Kit. You can experience the advantage of a high volume fuel system with the pump inside the fuel tank. With the pump submerged in fuel, it will run quieter and last longer. This is the easiest way to convert your existing or new fuel tank to an in-tank EFI fuel system.

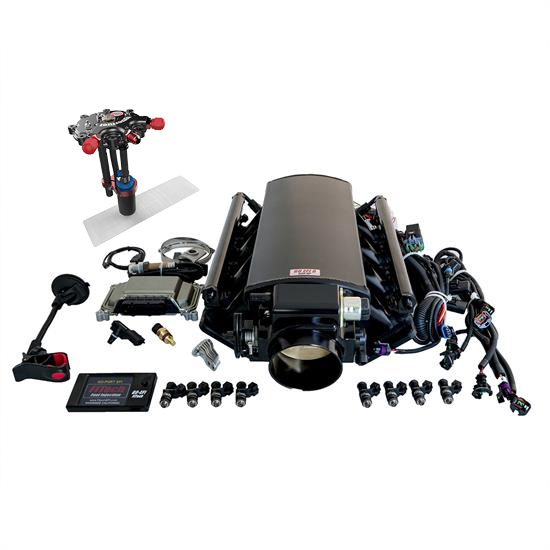

- Fabricated LS sheetmetal intake manifold
- 92mm billet LS throttle body
- Fuel rail with 36 lb/hr fuel injectors
- Handheld controller with data logging capability and windshield mount
- Fully programmable self-learning LS ECU
- LS wiring harness
- Wideband O2 sensors
- Includes Hy-Fuel Tank
Application
- Intake manifold will fit Cathedral Port LS1/LS2/LS6 heads
- Small Block V8 GEN. III/IV LS-based Chevrolet street and performance engines with a 1500-6500 rpm power-band up to 500 HP to the flywheel.
- 4.8 L / 293 c.i. LR4, LS1, LS2, LS6
- 5.3 L / 325 c.i. L33, L59, LM4, LM7
- 5.7 L / 346 c.i. LS1, LS6
- 6.0 L / 364 c.i. LQ4, LQ9, LS2
Notes
*Does not include trans control
- Intake manifold is 6.5 inches tall.
- 92mm high flow cable operated throttle body sits at 7 degrees.
- Throttle body will clear any stock truck accessories depending on the type of water pump, if there is truck water pump accessory clearance interference you will need to get a new water pump bracket.
Parts required, not included:
- Coil packs
Optional, not included:
- throttle cable mounting bracket (FiTech part number 70063)
What's In The Kit
-
FiTech 70001 Ultimate LS EFI, LS1/LS2, 500 HP, w/o Trans ControlPart # 52170001Qty x 1
-
HyperFuel 40019 Hy-Fuel Single Pump In-Tank Retrofit KitPart # 52140019Qty x 1
