FiTech Ultimate LS EFI Fuel Injection System w/G-Surge Tank, 500
Universal Fit, Multi-port Injection Style, User Tunable, Self Tuning, Injectors Included











- Specially designed for DIY enthusiasts who want full control over their engine
- This kit puts the engine and transmission EFI management back in your hands
- An included color touch screen handheld controller allows for custom tuning adjustments to your LS engine as well as a self-learning program to get you on the road
- Intake features short runners for a tricked out engine bay as compared to factory plastic engine covers
- It is custom cam friendly and is suitable for use with most 4.8 LS, 5.3 LS, LS1/LS6, and 6.0 LS engines with cathedral port cylinder heads producing up to 500 HP
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Details
Info
The FiTech Ultimate LS EFI kit is the ultimate LS ECU for DIY enthusiasts who want full control over their engine. Avoid having to buy additional software programs, learning how to think in computer code, or relying on a questionable 3rd party tuner. FiTech puts the engine and transmission EFI management back in your hands. The included color touch screen handheld controller allows for custom tuning adjustments to your LS engine as well as a self-learning program to get you on the road.
Leave the factory LS computer, wiring harness and intake in the junkyard where they belong. The FiTech Ultimate LS combo is a perfect match for 5.3 LS and 6.0 LS truck motors with tall and not so elegant factory intakes. The low profile fabricated sheet metal intake features short runners for a tricked out engine bay as compared to factory plastic engine covers. FiTech technology is custom cam friendly and is suitable for use with most 4.8 LS, 5.3 LS, LS1/LS6, and 6.0 LS engines with cathedral port cylinder heads producing up to 500 HP.
The HyperFuel Single Pump G-Surge Tank is designed to be used in vehicles that have fuel starvation issues when being used in extreme lateral G-force environments. Typically, this is due to poor fuel tank baffling in the existing fuel tank. The G-Surge eliminates that problem. The pump in the G-Surge never gets uncovered because it receives a steady supply of fuel from your existing fuel system as well as the fuel returning from the fuel injection system. So your system maintains a constant flow of fuel. Since the G-surge is constantly circulating fuel to and from your tank, your fuel pump stays cooler and will have a longer life. The fuel pump noise is also muffled by being submerged in fuel 100% of the time. The G-surge is also the best way to provide the necessary increase in fuel volume when adding a power adder, such as boost or nitrous to your engine.

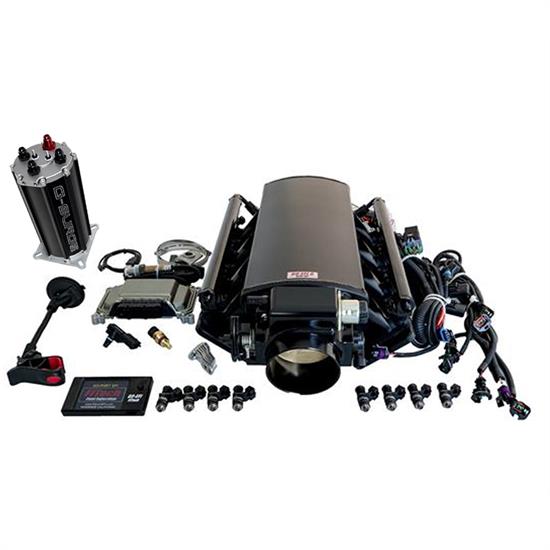

Kit includes:
- Fabricated LS sheetmetal intake manifold
- 92mm billet LS throttle body
- Trans cooler
- Fuel rail with 36 lb/hr fuel injectors
- Handheld controller with data logging capability and windshield mount
- Fully programmable self-learning LS ECU
- LS wiring harness
- Wideband O2 sensors
- HyperFuel G-Surge Fuel Pump System
Application
Intake manifold will fit Cathedral Port LS1/LS2/LS6 heads. Transmission control feature is suitable for 4L60, 4L65, 4L80 or 4L85 GM transmissions.
Small Block V8 GEN. III/IV LS-based Chevrolet street and performance engines with a 1500-6500 rpm power-band up to 500 HP at the flywheel.
- 4.8 L / 293 c.i. LR4, LS1, LS2, LS6
- 5.3 L / 325 c.i. L33, L59, LM4, LM7
- 5.7 L / 346 c.i. LS1, LS6
- 6.0 L / 364 c.i. LQ4, LQ9, LS2
Notes
*Includes trans control
Parts required, not included:
- Coil packs
Optional, not included:
- Throttle cable mounting bracket (FiTech part number 70063)
Charts
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
-
FiTech 70002 Ultimate LS EFI, LS1/LS2, 500 HP, w/ Trans ControlPart # 52170002Qty x 1
-
HyperFuel 40007 G-Surge Single Fuel Pump SystemPart # 52140007Qty x 1
