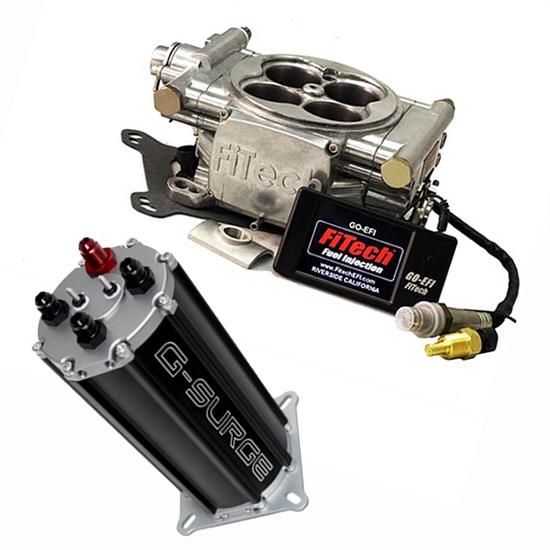

FiTech Go EFI 4 Fuel System Kit w/G-Surge Tank, 600 HP
FiTech Go EFI 4 Fuel System Kit w/G-Surge Tank, 600 HP

FiTech Go EFI 4 Fuel System Kit w/G-Surge Tank, 600 HP

Universal Fit, 4-Barrel Square Bore Carburetor Flange Type, Throttle Body Injection Style

0 Reviews | 0 Answered Questions
On Backorder
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
FiTech Go EFI 4 Fuel System Kit w/G-Surge Tank, 600 HP
FiTech Go EFI 4 Fuel System Kit w/G-Surge Tank, 600 HP
FiTech Go EFI 4 Fuel System Kit w/G-Surge Tank, 600 HP
FiTech Go EFI 4 Fuel System Kit w/G-Surge Tank, 600 HP
Zoomed In Image
FiTech estimates this item will ship on or before June 30th.
Part # 52133001
Save 5%
Call to Order
Add to Buildlist
What's In The Kit
Videos & Articles

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Add to Cart


Carburetor Flange Type:
4-Barrel Square Bore
Injection Style:
Throttle Body
User Tunable:
Self Tuning:
Injectors Included:
Injector Size:
56 lbs./hr.
Intake Manifold Included:
Metering Style:
Speed Density and Speed Throttle
850 CFM
Throttle Body Included:
Throttle Body Material:
Cast Aluminum
Throttle Body Finish:
Venturi Quantity:
Fuel Pump Included:
Fuel Rails Included:
Calibration Module Included:
ECM Included:
Wiring Harness Included:
Fuel Pressure Regulator Included:
Distributor Included:
MAP Sensor Included:
IAC Motor Included:
IAT Sensor Included:
TPS Sensor Included:
Use with Power Adder:
Venturi Diameter:
Max Horsepower Rating:
MFG. Part #:
Sold in Quantity:


FiTech takes all the guesswork and struggles out of converting to a modern fuel injection system. It couldn't be anymore simpler to update your new build or existing classic car or truck with a simple and efficient fuel injection set up. FiTech Go EFI 4 Fuel Injection Kits bring together everything one would ever need to make the switch to a modern fuel injection system. FiTech has done all the hard work for you by providing all the necessary parts and accessories for a seamless and simple upgrade to fuel injection. Featuring a Go EFI Self Tuning Fuel Injection throttle body rated at 600 HP that mounts to any standard 4-bbl intake manifold. No need to worry about cutting up your firewall to run a mess of wires and ECU into the cabin, as the FiTech throttle body features a built in ECU with built in spark control. That means no need for an ignition box or special distributor. A hand-held controller offers simple touch screen access for simplified initial set-up.

The FiTech Go EFI Fuel Injection Kits truly takes all the guesswork out of the fuel injection equation, which amounts to less time researching what parts you need and how they all go together. FiTech has changed the game with their simple and affordable modern fuel injection systems.

The HyperFuel Single Pump G-Surge Tank is designed to be used in vehicles that have fuel starvation issues when being used in extreme lateral G-force environments. Typically, this is due to poor fuel tank baffling in the existing fuel tank. The G-Surge eliminates that problem. The pump in the G-Surge never gets uncovered because it receives a steady supply of fuel from your existing fuel system as well as the fuel returning from the fuel injection system. So your system maintains a constant flow of fuel. Since the G-surge is constantly circulating fuel to and from your tank, your fuel pump stays cooler and will have a longer life. The fuel pump noise is also muffled by being submerged in fuel 100% of the time. The G-surge is also the best way to provide the necessary increase in fuel volume when adding a power adder, such as boost or nitrous to your engine.

Kit Includes:

  • Die Cast Throttle Body
  • Aluminum finish
  • Handheld Controller
  • Windshield Mount
  • (4) Hi-Flow 600 HP injectors
  • Built-in pressure regulator
  • 2.5 BAR Internal MAP Sensor
  • Throttle Position Sensor
  • Idle Air Control
  • Coolant Temp Sensor
  • Wide band O2 Sensor
  • O2 Bung Kit
  • -06AN Fuel Inlet Fitting
  • Gasket Kit
  • Hyperfuel G-Surge Main Assembly


  • (4) Hi-Flow 600 HP injectors
  • Initial setup is quick and easy. Simple touch screen selections get you up and running in minutes
  • Self-tuning** After startup the ECU immediately takes over and provides your vehicle with an optimum tune!
  • Basic install can be done with just 4 wires and 2 sensors to install
  • Uses a Bosch 4.2 wide band O2 sensor while all other sensors are easily replaceable GM style parts
  • The ECU is mounted on the throttle body so there is NO external boxes or harnesses to clutter up your engine compartment or under dash. This saves you a huge amount of time and keeps things simple and neat
  • Throttle bodies have a completely universal base to fit any 4-bbl manifold
  • Throttle Linkage suits most transmissions
  • Choice of three fuel inlet connections
  • All Go-EFI’s feature Voltage Control fuel pump control. This feature reduces the voltage to the pump under low load conditions such as idle and cruise thus reducing noise and heat. This will extend the life of your pump and keep the fuel in the tank cooler and your ears from ringing!
  • Go-EFI Systems feature Wet flow technology and have a unique Swirl Spray Annular discharge design that assures COMPLETE ATOMIZATION!! Check out our videos, you need to see it
  • Ignition timing can be controlled and adjusted on the fly from your touch screen controller
  • Air Fuel ratios can be optimized on the fly as you drive! Try that with your Carb
  • Part #30001 & #30002 feature 1 adjustable fan control switch
  • Will work with CDI box but not required to control timing
  • Built in Fuel pressure regulator. No extra regulator to mount on your fire wall
  • Use of ignition timing control is optional and not required
  • Ignition timing control does not learn, and requires synchronizing distributor to engine with a timing light

Quick Start Guide - Handheld Controller (PDF)

Handheld Controller Feature Definitions (PDF)




Installation Instructions (PDF)

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • FiTech 30001 Go EFI 600 HP Self-Tuning Fuel Injection, Bright
    Qty x 1
  • HyperFuel 40007 G-Surge Single Fuel Pump System
    Qty x 1
