Add to Cart
$1,236.40
FiTech 31001 Go EFI 4 600 HP System, Polished
FiTech 31001 Go EFI 4 600 HP System, Polished

FiTech 31001 Go EFI 4 600 HP System, Polished

Universal Fit, 4-Barrel Square Bore Carburetor Flange Type, Throttle Body Injection Style

1 Review | 1 Answered Question
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
FiTech 31001 Go EFI 4 600 HP System, Polished
FiTech 31001 Go EFI 4 600 HP System, Polished
FiTech 31001 Go EFI 4 600 HP System, Polished
X
FiTech 31001 Go EFI 4 600 HP System, Polished
Zoomed In Image
Part # 52131001
$1,236.40
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Carburetor Flange Type:
4-Barrel Square Bore
Injection Style:
Throttle Body
User Tunable:
Yes
Self Tuning:
Yes
Injectors Included:
Yes
Injector Size:
80 lbs./hr.
Intake Manifold Included:
No
Metering Style:
Speed Density and Speed Throttle
EGR:
No
CFM:
850 CFM
Throttle Body Included:
Yes
Throttle Body Material:
Cast Aluminum
Throttle Body Finish:
Polished
Venturi Quantity:
4
Fuel Pump Included:
Yes
Fuel Rails Included:
No
Calibration Module Included:
Yes
ECM Included:
Yes
Wiring Harness Included:
Yes
Fuel Pressure Regulator Included:
Yes
Distributor Included:
No
MAP Sensor Included:
Yes
IAC Motor Included:
Yes
IAT Sensor Included:
Yes
TPS Sensor Included:
Yes
Use with Power Adder:
No
Venturi Diameter:
44.45mm
Max Horsepower Rating:
600
MFG. Part #:
31001
GTIN Code:
854549007002
Sold in Quantity:
Kit

Info

The Go EFI 4 Self Tuning Fuel Injection is rated at 600 HP but is suitable for engines from 250 HP thru 600 HP. This system is perfect for your everyday Driver right up to your weekend Street Machine or Bracket Racer. It features the FASTEST most accurate Self Learning available, Timing control, Wet flow Annular discharge and tons of additional features.

It fits any 4-bbl intake manifold and is the most self-contained and full-featured unit of this type. The ECU (computer) is mounted on the throttle body, which greatly simplifies installation. No hole in your firewall and no unsightly harness draped across your engine. This is also the only computer mounted throttle body that offers spark control without the need for an external spark box or special distributor. It also has a built-in fuel pressure regulator. A hand-held controller features a touch screen for quick and easy initial set-up.

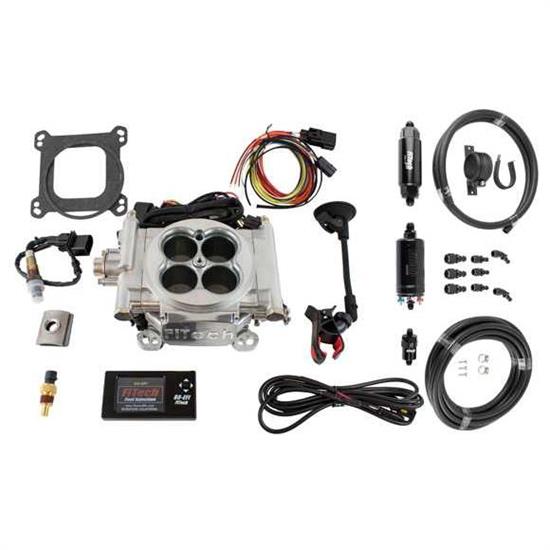

Kit Includes:

  • Die Cast Throttle Body
  • Handheld Controller
  • Windshield Mount
  • (4) Hi-Flow 600 HP injectors
  • Built-in pressure regulator
  • 2.5 BAR Internal MAP Sensor
  • Throttle Position Sensor
  • Idle Air Control
  • Coolant Temp Sensor
  • Wide band O2 Sensor
  • O2 Bung Kit
  • -06AN Fuel Inlet Fitting
  • Gasket Kit

Features:

  • 4) Hi-Flow 600 HP injectors
  • Initial setup is quick and easy. Simple touch screen selections get you up and running in minutes
  • Self-tuning After startup the ECU immediately takes over and provides your vehicle with an optimum tune
  • Basic install can be done with just 4 wires and 2 sensors to install
  • Uses a Bosch 4.2 wide band O2 sensor while all other sensors are easily replaceable GM style parts
  • The ECU is mounted on the throttle body so there is NO external boxes or harnesses to clutter up your engine compartment or under dash. This saves you a huge amount of time and keeps things simple and neat
  • Throttle bodies have a completely universal base to fit any 4-bbl manifold
  • Throttle Linkage suits most transmissions
  • Choice of three fuel inlet connections
  • All Go-EFI’s feature Voltage Control fuel pump control. This feature reduces the voltage to the pump under low load conditions such as idle and cruise thus reducing noise and heat. This will extend the life of your pump and keep the fuel in the tank cooler and your ears from ringing
  • Go-EFI Systems feature Wet flow technology and have a unique Swirl Spray Annular discharge design that assures Complete Atomization
  • Ignition timing can be controlled and adjusted on the fly from your touch screen controller
  • Air Fuel ratios can be optimized on the fly as you drive! Try that with your Carb
  • Will work with CDI box but not required to control timing
  • Built in Fuel pressure regulator. No extra regulator to mount on your fire wall
  • Use of ignition timing control is optional and not required
  • Ignition timing control does not learn, and requires synchronizing distributor to engine with a timing light

Quick Start Guide - Handheld Controller (PDF)

Handheld Controller Feature Definitions (PDF)

Application

  • Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, Etc. engines making 200 HP up to 650 HP with a 4-barrel intake manifold.
  • Replacement for any 4-barrel carburetors for engines with 200 HP up to 650 HP.
  • Use the same size air cleaner you would normally use for your 4-barrel carburetor.

Notes

The Go EFI 4 with bright aluminum finish combined with the Inline Fuel Pump Fuel Delivery Kit is rated at 600HP but is suitable for engines from 200HP thru 650HP. This self-tuning fuel injection system is perfect for your everyday Driver right up to your weekend Street Machine or Bracket Racer. It features the fastest most accurate self-learning available, timing control, wet flow annular discharge and tons of additional features.

It fits any 4-bbl intake manifold and is the most self-contained and full-featured unit of this type. The ECU (computer) is mounted on the throttle body, which greatly simplifies installation. No hole in your firewall and no unsightly harness draped across your engine. This is also the only computer mounted throttle body that offers spark control without the need for an external spark box or special distributor. It also has a built-in fuel pressure regulator. A hand-held controller features a touch screen for quick and easy initial set-up.

The Inline Fuel Pump Fuel Delivery Kit includes an EFI grade 255 L/PH inline external fuel pump that is suitable for engines making up to 600HP. (Note that some of our EFI kits are limited to less than 750HP due to maximum usable injector sizes). This kit also includes 20-feet of EFI grade fuel hose suitable for both the inlet and return lines between the fuel tank and the engine. The kit includes two billet fuel filters. The filters include a 100-micron pre-filter and a 30-micron post filter.

Charts

Instructions (PDF)

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
