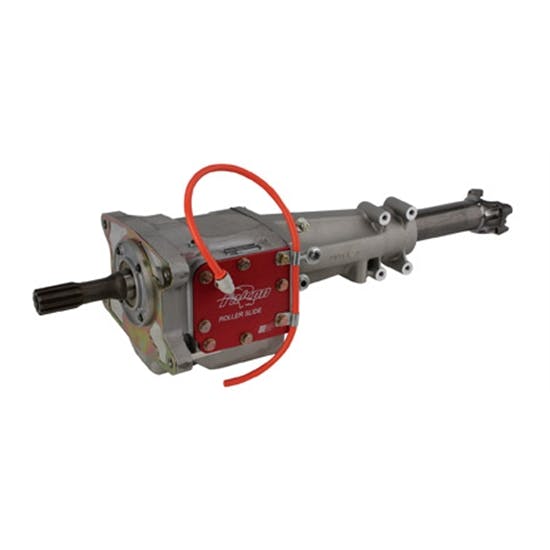

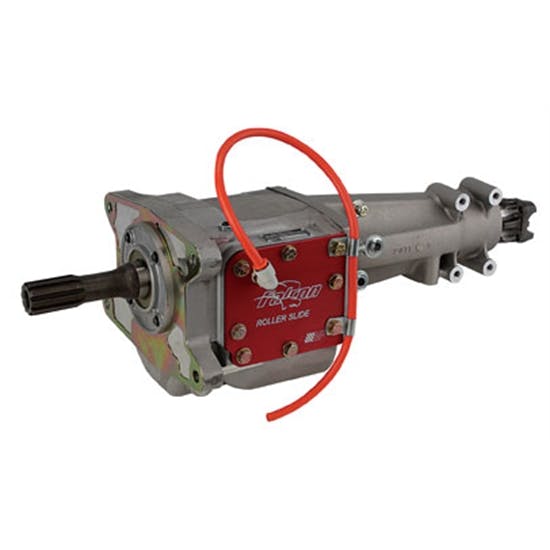

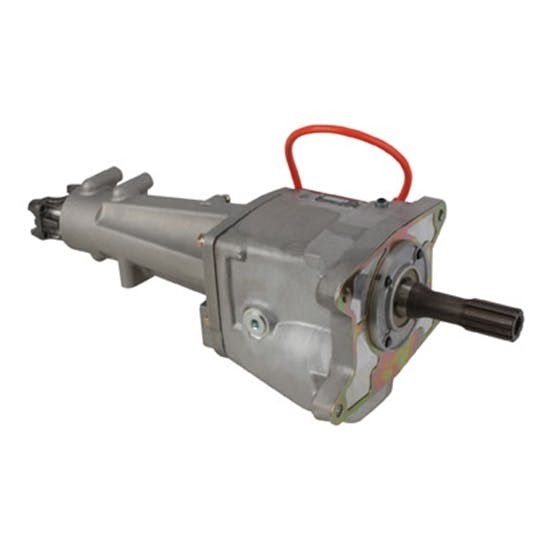

Falcon Roller Slide Late Model Transmission with Free Stand
- This Roller Slide Late Model transmission has 2 forward gears and reverse
- Transmission has a 10 spline count and comes with a yoke
- Has an aluminum case and weighs only 43 pounds
$2,600.99
/kit
In Stock
Order soon, only 3 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Falcon, 2-Speed Transmission Speeds
- This Roller Slide Late Model transmission has 2 forward gears and reverse
- Transmission has a 10 spline count and comes with a yoke
- Has an aluminum case and weighs only 43 pounds
- Features a floating input shaft and has high a gear ratio of 1.00:1
- Telescopes 5-1/2 inches at rear yoke to allow forward and backward movement without limiting or inducing roll steer
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 60120-80111 |
| Transmission Speeds | 2-Speed |
| Torque | 600 ft./lbs. |
| Input Shaft Spline Count | 10 |
| Input Shaft Diameter | 1.0625" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyFalcon Transmission 60120-80111 Details
Falcon Transmission 60120-80111 Details
Gliding on roller bearings, the Falcon Roller Slide Late Model Transmission telescopes 5-1/2 inches at the rear yoke allowing your drive line and suspension the freedom to move forward and backward without inducing or limiting roll steer.
The Roller Slide has all the advantages of more drive line travel and less maintenance while being durable enough to handle the tough environment of today's racing.
As with all Falcon Transmissions, the Roller Slide Late Model transmission provides two speeds forward, neutral, reverse, and an integral hydraulic clutch which operates on low and reverse gear. This is the 80111 option with the 10 spline, one-piece input shaft.
High gear is direct 1:1 drive ratio. Well lubricated, frictionless bearings support all rotating components for superior durability.
- 2 forward gears and a reverse
- 10 spline, one-piece input shaft
- 43 lbs. Aluminum-cased transmission
- Floating input shaft
- High gear is direct drive 1 to 1 ratio
FREE STAND With Purchase!
Falcon Transmission 60120-80111 Specifications
Falcon Transmission 60120-80111 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 60120-80111 |
| Brand | Falcon Transmission |
| Transmission Speeds | 2-Speed |
| Torque | 600 ft./lbs. |
| Input Shaft Spline Count | 10 |
| Input Shaft Diameter | 1.0625" |
| GENERAL | |
| Output Shaft Spline Diameter | 1.1875" |
| Output Shaft Spline Count | 27 |
| Case Material | Aluminum |
| Bellhousing Included | No |
| Yoke Included | No |
| Shifter Included | No |
| Gear Ratio (High) | 1.00:1 |
| Notes | 1-3/8"-10 spline input shaft. Output features built in slip yoke to accept 1310 U-joint and 910-48319 U-bolts |
| Sold in Quantity | Each |
| Yoke Style | Slip On |
| Shifter Style | Linkage operated |
Ratings & Reviews
5
2 Reviews
Customers praise the product for its excellent performance, particularly in late model dirt cars. The usability and reliability of this transmission are consistently highlighted. It's also noted for offering great value, compounded by the inclusion of a free stand. The product drew comparisons to the same model utilized by racer Scott Bloomquist - further proof of its quality. The transmission is evidently a top choice for hassle-free operation in demanding automotive applications, standing out from competing products.
Ratings & Reviews
5
2 Reviews
Customers praise the product for its excellent performance, particularly in late model dirt cars. The usability and reliability of this transmission are consistently highlighted. It's also noted for offering great value, compounded by the inclusion of a free stand. The product drew comparisons to the same model utilized by racer Scott Bloomquist - further proof of its quality. The transmission is evidently a top choice for hassle-free operation in demanding automotive applications, standing out from competing products.
5
2 reviews
5
2
4
0
3
0
2
0
1
0
Filter by Ratings
Works great
5.0
4 years ago
Ed
Indiana
Verified
Works great in late model dirt car
Great price and comes with a free stand
5.0
12 years ago
24Steve
Centralia, MO 65240, USA
I have one of these transmissions in my late model, Scott Bloomquist uses the same one. trouble free!
Would Recommend
Showing 2 of 2 reviews
Questions & Answers
Questions & Answers
4 Questions • 4 Answers
So does this trans require no pedal to put into gear to either reverse or to get car rolling from a dead stop and into Low? When shifting from low to High gear, what is recommended rpm max?
by Josh
• 7 years ago
1 answer
View Answer
Can I shift this Falcon trans from low to reverse without stopping the motor? In reading your 2019 catalog pg 189 you state to check out with "Falcon trans shifters to get it into high gear and into the winners circle."
by Gary
• 7 years ago
1 answer
View Answer
Is this IMCA legal P/N 60100 Transmission?
by siebs
• 9 years ago
1 answer
View Answer
clutchless shift can you clutchless shift these trannies with damage?
by 79bronco429
• 12 years ago
1 answer
View Answer
4 of 4 questions shown
