$599.99

Ford Front 48 Axle Steering & Brake Kit 5 on 4.75 Cross Steer-Plain

Ford Front Axle Steering & Brake Kit, 48 Inch Axle

Ford Front 48 Axle Steering & Brake Kit 5 on 4.75 Cross Steer-Plain

Universal Fit, Straight Axle Front Suspension Type, Stock Height Suspension Height Adjustment

43 Reviews | 36 Answered Questions

On Backorder

Ships FREE

STORE PICKUP

Availability

Select your vehicle to verify fitment.

Select a vehicle to verify fitment.

Select Vehicle

Part # 9133902-4 3/4-CROS-PLN

$599.99

kit

Call to Order

Add to Buildlist

Click to Login

Compare

Details

What's In The Kit

Reviews

Q&A

Videos & Articles

Fits 48" kingpin Center to Center Ford Axles with .813" kingpin diameter
Your Choice of Cross Steering (Vega Style) or Traditional Steering (Corvair) With Flat Plate Steering Arms and 5/8" Standard Rod Ends (Heims)
Available with either 5x4.5" (Ford) or 5x4.75" (Chevy) wheel bolt pattern
One Piece Forged 4140 Steel Spindles Modeled after 37-41 Round Back Design with Standard kingpins Fit to Spindle
11" Brake Kit Featuring 78-88 GM Metric Brake Calipers with 2-1/2" Piston for Increased Stopping Performance

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.

Details

Front Suspension Type:

Straight Axle

Suspension Height Adjustment:

Stock Height

Control Arm Style:

Not Included

Shock Type:

Not Included

Spring Type:

Not Included

Finish:

Natural

Bolt Pattern:

5 on 4.75"

Rotor Diameter:

11 Inch

Spindle Style:

Ford Custom

Dropped Spindles:

Dropped Axle:

Dropped Control Arms:

Spindles Included:

Yes

Steering Included:

Yes

MFG. Part #:

9133902-4 3/4-CROS-PLN

Welding Required:

Info

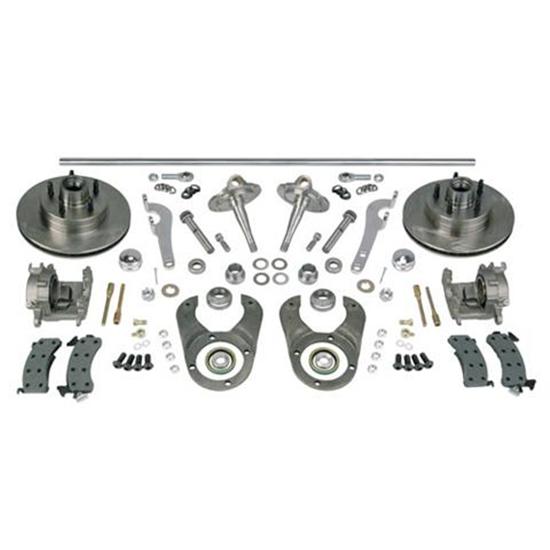

Speedways exclusive steering & brake kits save you time and money by combining all necessary parts into one part number. Each kit includes brake kit, spindles, dust caps, spindle nuts, Rubber Brake Lines, AN3 caliper fittings, kingpins, flat steering arms, tie rod assembly and hardware.

For 48" kingpin-to-kingpin axles
Traditional steering arm for left front wheel NOT included with Traditional steering kit
Available with 5x4.5" or 5x4.75" hubs

Spindle Identification Guide (GIF)

Item Details

11" rotors

Application

Ford 1928-48 spindles are generally your best choice when using an original Ford axle or spring behind application using 37-48 Ford spindles.
Chevy 1949-54 spindles are specifically designed for use on tube axles. A shorter, thicker axle stub makes this a slightly stronger spindle ideal for use with heavier street rods.

Ford kit features:

1928-48 Ford Spindles
- One piece forged 4140 steel
- Modeled after the 1937-41 round-back design
- Standard king pins fit to spindles
Speedway 11" Brake Kit
- 11" vented iron rotor, 1" thick
- 5 x 4-1/2" or 5 x 4-3/4" bolt patterns
- Wheel studs - 1/2" Fine (4-1/2" BP), 7/16" Fine (4-3/4" BP)
- Hub flange (hat) diameter - 6-1/4"
- GM Metric '78-'88 calipers, 2-1/2" piston
- 7/16" banjo bolt to AN-3 line adapter kit
Traditional or Cross Steering Kit
- Flat plate steering arms
- 5/8" tie rod steering link
- 5/8" standard heim joint rod ends
- Seals-it 5/8" rod end seals

Notes

Cross Steering vs. Traditional Steering

Traditional steering provides an original, period look, but will only work in these applications:

Four bar setup with '68-'73 Mustang box
Split wishbone or hairpin radius rod with reversed Corvair or '48-'56 Ford Puckup steering box
Parallel Steering Set-Up Guide (GIF)

Cross steering (using a Vega box) is the preferred method for nearly all cross spring, beam axle suspensions. Ford used this design from 1935-on.

Less bumpsteer
More comfortable steering column angle
Frees up foot pedal / bellhousing room
Cleaner vehicle profile
Cross Steering Guide (GIF)

Specs

Ford kit features:

1928-48 Ford Spindles
- One piece forged 4140 steel
- Modeled after the 1937-41 round-back design
- Standard king pins fit to spindles
Speedway 11" Brake Kit
- 11" vented iron rotor, 1" thick
- 5 x 4-1/2" or 5 x 4-3/4" bolt patterns
- Wheel studs - 1/2" Fine (4-1/2" BP), 7/16" Fine (4-3/4" BP)
- Hub flange (hat) diameter - 6-1/4"
- GM Metric '78-'88 calipers, 2-1/2" piston
- 7/16" banjo bolt to AN-3 line adapter kit
Traditional or Cross Steering Kit
- Flat plate steering arms
- 5/8" tie rod steering link
- 5/8" standard heim joint rod ends
- Seals-it 5/8" rod end seals

Important Messages

Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.

Speedway 1928-1948 Ford Forged Spindles w/ King Pins

Part # 91032104

Qty x 1
Speedway Soft Street Brake Pads, GM Metric 1978-Up D154

Part # 9193381

Qty x 1
IMCA Approved 1978-88 GM Metric LH Brake Caliper, 7/16-20 Inlet

Part # 91031045-L

Qty x 1
IMCA Approved 1978-88 GM Metric RH Brake Caliper, 7/16-20 Inlet

Part # 91031045-R

Qty x 1
Brake Bracket Kit 1978-88 GM Caliper to Early Ford Spindles

Part # 7024475

Qty x 1
Wheel Bearing Outer Cone, 3/4", Steel

Part # 912TLM11949

Qty x 2
1973-77 GM Midsize 11 Inch Disc Brake Rotor

Part # 91031063

Qty x 2
47 Inch Plain Steel Hod Rod Tie Rod/Drag Link Sleeve for 5/8-18 Ends

Part # 91631-47

Qty x 1

Standard Steel Heim Joint Rod Ends, 5/8-18 RH Male

Part # 1750106

Qty x 1
Standard Steel Heim Joint Rod Ends, 5/8-18 LH Male

Part # 1750306

Qty x 1
Steel Jam Nut, 5/8-18 RH

Part # 1750246

Qty x 1
Steel Jam Nut, 5/8-18 LH

Part # 1750446

Qty x 1
Speedway Ford Flat Plate Steering Arms, Plain

Part # 91632029

Qty x 1
Steel Cone Spacers for Rod Ends, 5/8 Inch

Part # 5464110

Qty x 1
Seals-It WS6250 Heim Joint Rod End Seals, 5/8 Inch Hole, Set/6

Part # 91001504

Qty x 1
1937-1948 Ford Spindle Castle Nuts

Part # 910616004

Qty x 1

Bolt Kit for 913-3902

Part # 9133902-2-PLN

Qty x 1
Bolt Kit for 1937-48 Ford Spindle Flat Steering Arms

Part # 7024475-3

Qty x 1
Front Disc Brake Hardware Kit

Part # 9103142.1

Qty x 1
Flat Plate Steering Arm Spacers

Part # 913390000

Qty x 1
