#1750814

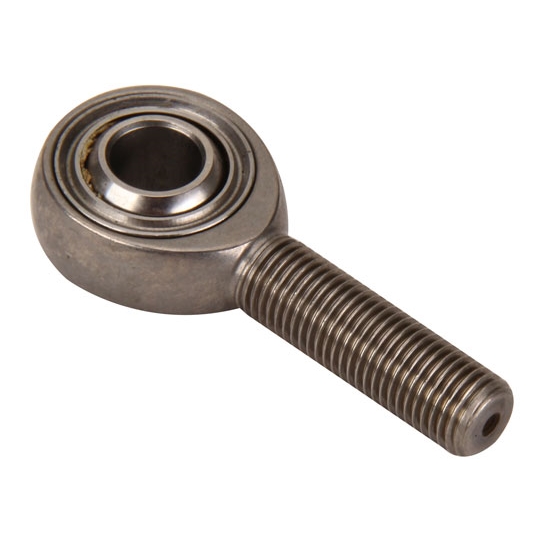

FK Rod Ends SJML7T Stainless Steel 7/16 Inch LH Male Heim Joint
by
FK Rod Ends
$42.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Stainless Steel
See more details
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 7/16"-20 |
| Material Type | Stainless Steel |
| Hole Diameter | 0.438" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyFK Rod Ends SJML7T Details
FK Rod Ends SJML7T Details
FK SJM-T/SJF-T/SRSM-T Series rod ends feature 3-piece precision stainless steel construction. These self-lubricating, high-strength rod ends feature bodies and races composed of 17-4PH CRES heat-treated stainless steel and a 440C CRES heat-treated stainless steel ball. FK SJM-T/SJF-T/SRSM-T Series rod ends come standard with a PTFE fabric liner bonded to the race i.d.
- 7/16" LH male threads
- 3-piece precision stainless steel construction
- Self-lubricating, high-strength
- 17-4PH CRES heat-treated stainless steel bodies and races
- 440C CRES heat-treated stainless steel ball
Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
FK Rod End Chart (Link)
FK Rod Ends SJML7T Specifications
FK Rod Ends SJML7T Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | SJML7T |
| Brand | FK Rod Ends |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 7/16"-20 |
| Material Type | Stainless Steel |
| Hole Diameter | 0.438" |
| Rod End Style | Heat-Treated Stainless Steel/PTFE Lined |
| Rod End Construction | 3-piece |
| Grease Fitting | No |
| Finish | Natural |
| Color | Natural |
| Rod End Misalign Angle | 13 degrees |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.281" |
| Rod End Ball Diameter | 0.562" |
| Rod End Head Diameter | 1.150" |
| Rod End Head Width | 0.452" |
| Center Hole to End of Shank | 1.125" |
| Heat Treated | Yes |
| Load Capacity | 12000 lbs. |
| GTIN Code | 800199880717 |
| Sold in Quantity | Each |
