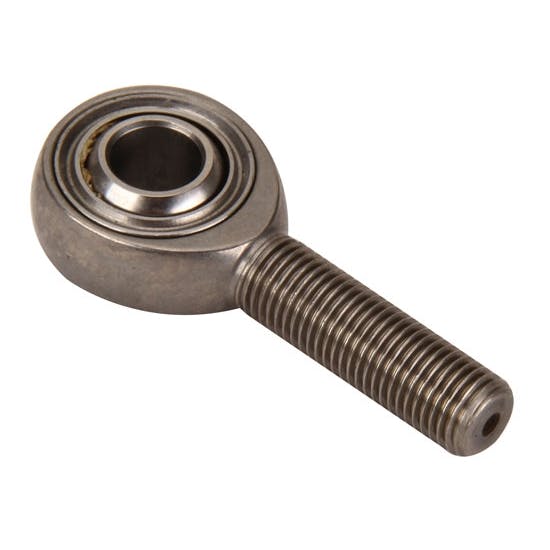

FK Rod Ends SJM7T Stainless Steel 7/16 Inch RH Male Heim Joint
FK Rod Ends SJM7T Stainless Steel 7/16 Inch RH Male Heim Joint

FK Rod Ends SJM7T Stainless Steel 7/16 Inch RH Male Heim Joint

Universal Fit, RH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Stainless Steel

0 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
FK Rod Ends SJM7T Stainless Steel 7/16 Inch RH Male Heim Joint
FK Rod Ends SJM7T Stainless Steel 7/16 Inch RH Male Heim Joint
FK Rod Ends SJM7T Stainless Steel 7/16 Inch RH Male Heim Joint
X
FK Rod Ends SJM7T Stainless Steel 7/16 Inch RH Male Heim Joint
Zoomed In Image
Part # 1750714
$39.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Thread Type:
RH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
7/16"-20
Material Type:
Stainless Steel
Hole Diameter:
0.438"
Rod End Style:
Heat-Treated Stainless Steel/PTFE Lined
Rod End Construction:
3-piece
Grease Fitting:
No
Finish:
Natural
Color:
Natural
Thread Length:
1.281"
Rod End Ball Diameter:
0.562"
Rod End Head Diameter:
1.150"
Rod End Head Width:
0.452"
Rod End Misalign Angle:
13 degrees
Center Hole to End of Shank:
1.125"
Jam Nut Included:
No
Heat Treated:
Yes
Load Capacity:
12000 lbs.
MFG. Part #:
SJM7T
GTIN Code:
800199870718
Sold in Quantity:
Each

Info

FK SJM-T/SJF-T/SRSM-T Series rod ends feature 3-piece precision stainless steel construction. These self-lubricating, high-strength rod ends feature bodies and races composed of 17-4PH CRES heat-treated stainless steel and a 440C CRES heat-treated stainless steel ball. FK SJM-T/SJF-T/SRSM-T Series rod ends come standard with a PTFE fabric liner bonded to the race i.d.
  • 7/16" RH male threads
  • 3-piece precision stainless steel construction
  • Self-lubricating, high-strength
  • 17-4PH CRES heat-treated stainless steel bodies and races
  • 440C CRES heat-treated stainless steel ball

Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

FK Rod End Chart (Link)
