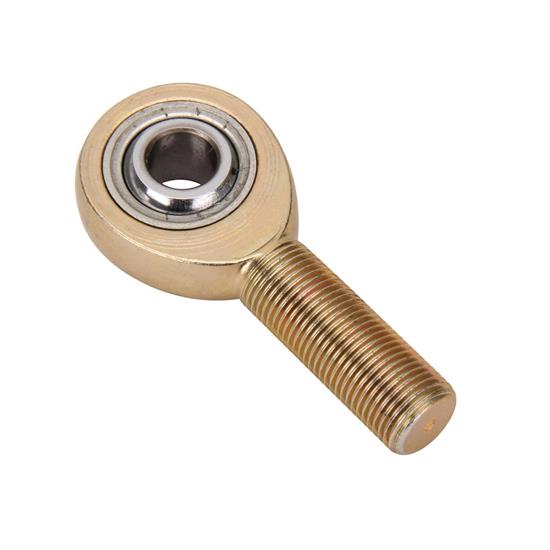

FK Rod Ends RSML8 5/8 LH Male x 1/2 Inch Hole Steel Heim Joints
FK Rod Ends RSML8 5/8 x 1/2 Inch Steel Male Rod End

FK Rod Ends RSML8 5/8 LH Male x 1/2 Inch Hole Steel Heim Joints

Universal Fit, Male Threads/Eyelet Rod End Attachment, 5/8"-18 Thread Pitch, Steel, Zinc Plated

3 Reviews | 1 Answered Question
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Limited Qty
Select your vehicle to verify fitment.
Select Vehicle
FK Rod Ends RSML8 5/8 x 1/2 Inch Steel Male Rod End
FK Rod Ends RSML8 5/8 x 1/2 Inch Steel Male Rod End
FK Rod Ends RSML8 5/8 LH Male x 1/2 Inch Hole Steel Heim Joints
X
FK Rod Ends RSML8 5/8 x 1/2 Inch Steel Male Rod End
Zoomed In Image
Part # 150016-LH
$12.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Has a 5/8"-18 thread pitch and a 0.500" hole diameter
  • The ball is made from 52100 steel, heat treated and hard chrome plated
  • Race is manufactured from alloy steel, heat treated, zinc plated, chromate treated
  • Body is low carbon steel that has been heat treated, chromate treated, and zinc plated
  • It has a rod misalign angle of 10 degrees and a center hole to end of shank distance of 2.625"

Details

Thread Type:
LH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
5/8"-18
Material Type:
Steel
Hole Diameter:
0.5"
Rod End Style:
Heat-Treated Alloy Steel Race
Rod End Construction:
3-piece
Grease Fitting:
No
Finish:
Zinc Plated
Color:
Natural
Thread Length:
1.625"
Rod End Ball Diameter:
0.937"
Rod End Head Diameter:
1.500"
Rod End Head Width:
0.500"
Rod End Misalign Angle:
10 degrees
Center Hole to End of Shank:
2.625"
Jam Nut Included:
No
Heat Treated:
Yes
Load Capacity:
12843 lbs.
MFG. Part #:
RSML8
GTIN Code:
800199460803
Sold in Quantity:
Each

Info

FK Rod Ends offers this three piece male heim. The ball is made of 52100 steel that is heat treated and hard chrome plated. The body is made of low carbon steel and is heat treated, chromate treated, and zinc plated. The race is heat treated steel alloy that has been zinc plated and chromate treated.
  • Ball is 52100 steel, heat treated and hard chrome plated
  • Body is low carbon steel that has been heat treated, chromate treated, and zinc plated
  • Race is alloy steel, heat treated, zinc plated, chromate treated

Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.

Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Standard Rod End Chart (JPG)
