FAST 301400K Power Adder Harness Connector Kit, Nitrous/Turbo Apps.
- This item ships directly from the manufacturer. It may take an additional 2 business days for FAST Fuel Air Spark Technology to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

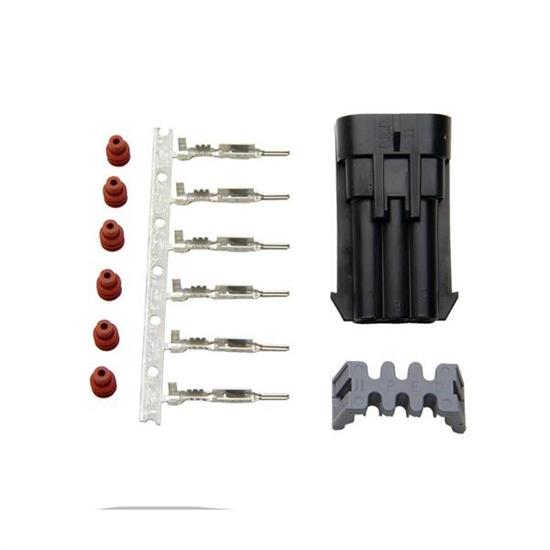

Part Number 301400K Connector Kit:
- Includes: Connectors, Terminals, and Seals - NO Wires
FAST XFI/XFI 2.0 has provisions for the use of power adders (Ex: Nitrous and Turbo Applications). There are four separate stages of power adder control available. Each stage also allows for changes to fueling and ignition timing using a variety of control strategies. The first stage allows for a Progressive controlled power adder, which will allow for a power adder as well as supplemental fuel to be ramped in at any rate over time. The stages occur one after the other at specific intervals. These intervals are user programmable. The first stage - and the timer for the second through fourth stages - begins when three conditions have been met. The TPS and RPM values must be above user-programmed thresholds and battery voltage must be applied to the Power Adder Enable input. This can be wired to a dash-mounted switch to allow the driver to enable the power adder functions. Or in a drag racing application, it might be wired to a clutch pedal switch or a trans brake switc
