Electric Power Master Cylinder - Disc/Drum
Electric Power Master Cylinder - Disc/Drum

Electric Power Master Cylinder - Disc/Drum

1 Review | 10 Answered Questions
In Stock
Ships FREE
Electric Power Master Cylinder - Disc/Drum
Electric Power Master Cylinder - Disc/Drum
Zoomed In Image
Part # 10410562
$1,299.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Bore Size:
1.19"
Centerline of Holes:
3.33"
Material Type:
Aluminum
Mounted Length:
9.25"
Overall Width:
3.50"
Overall Height:
4.50"
Finish:
Polished
Sold in Quantity:
Each

Info

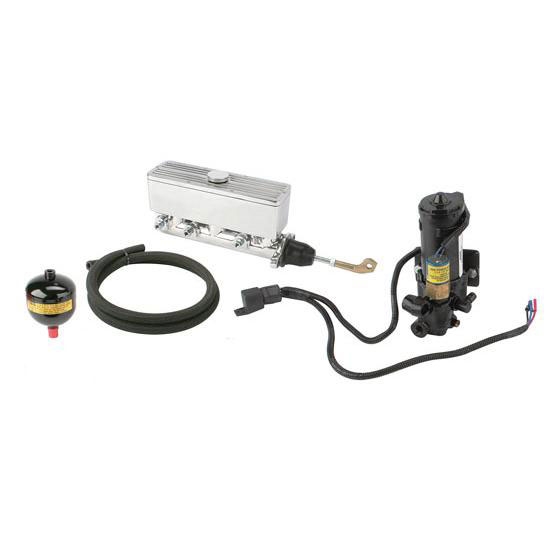

These electrically boosted master cylinders are really slick. Rather than using bulky vacuum boosters to generate increased hydraulic force, they employ remote-mounted electric pumps and accumulators to build brake pressure.

The compact and attractive aluminum master cylinder can easily be retro-fitted on the firewall of most American cars, or can be frame mounted if you have 5-1/4" of under-floor clearance.

12 volt electric pump and accumulator assembly can be mounted out of sight on the frame or in the trunk. For disc/drum applications.

Instructions for Bleeding System (GIF)

Low pressure or return line is a 3/8" hose fitting, located on the drivers side of the master cylinder when mounted to the firewall.

The pumps feature 3/8"-24 IFF high pressure line from the master cylinder. A return or low pressure line is a 3/8" hose fitting. A 48" piece of return line is supplied with both kits.

The master cylinder has slotted mounting holes with spacing that will accept a 3-1/16" to 3-7/16" on center mounting distance, and will accept both 3/8" and 10MM bolts. The reservoir is 10" long by 3" wide by 3" tall.

The master cylinder and reservoir together measure 10" long by 3-1/4" wide by 5-1/4" tall. The pushrod has 3/8"-24 thread and will adjust from 5-3/4" to 6-3/8" from the face of the master cylinder mounting flange.

Master Cylinder contains a bore size of 1 3/16".

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection

Item Details

Disc/Drum Application. Both fitting sizes are 7/16"-24 IFF.

Application

This electric boost master cylinder may be too big for street cars and hot rods, but will work well for muscle cars.

Notes

Brake System Builder's Tip (Link)

The front and rear brake fitting and the pressure line fitting to the pump are all 3/8"-24 IFF.

Low pressure or return line is a 3/8" hose fitting, located on the driver's side of the master cylinder when mounted to the firewall.

Low pressure or return line is a 3/8" hose fitting, located on the driver's side of the master cylinder when mounted to the firewall.

The pumps feature 3/8"-24 IFF high pressure line from the master cylinder. A return or low pressure line is a 3/8" hose fitting. A 48" piece of return line is supplied with both kits.

Some parts are not legal for use in California or other states with similar laws/regulations
