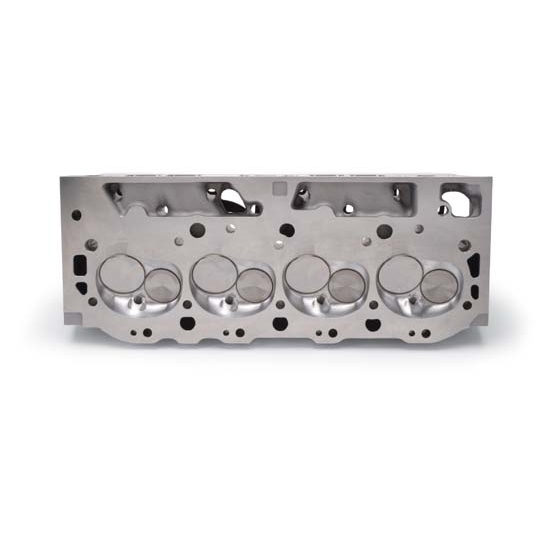

Edelbrock 79539 E-CNC 355 Cylinder Head, Rectangular Port, BB Chevy
Edelbrock 79539 E-CNC 355 Cylinder Head, Rectangular Port, BB Chevy

Edelbrock 79539 E-CNC 355 Cylinder Head, Rectangular Port, BB Chevy

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Edelbrock 79539 E-CNC 355 Cylinder Head, Rectangular Port, BB Chevy
Edelbrock 79539 E-CNC 355 Cylinder Head, Rectangular Port, BB Chevy
Zoomed In Image
We estimate this item will ship on or before November 1st.
Part # 32579539
Save 40%
$1,299.99
$2,175.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for Edelbrock to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Assembled
Material Type:
Aluminum
Combustion Chamber:
110cc
Intake Valve Diameter:
2.3"
Exhaust Valve Diameter:
1.88"
Spark Plug Style:
Angle
Finish:
Natural
Sold in Quantity:
Each
CNC-Machined Combustion Chamber:
Yes
Intake Port Location:
Standard
Intake Port Shape:
Rectangle
Exhaust Port Location:
Standard
Exhaust Port Shape:
Rectangle
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Valve Spring Included:
Yes
Maximum Lift:
0.7"
Outside Diameter of Outer Spring:
1.55"
Damper Spring Included:
No
Number of Springs Per Valve:
Dual
Retainers Included:
Yes
Retainer Material:
Steel
Locks Included:
Yes
Lock Style:
7 Degree
Valve Stem Seal Type:
Positive Stop
Rocker Arm Studs Included:
Yes
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
Yes
Guideplate Pushrod Size:
8-Mar"
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile Iron
Steam Holes Drilled:
No
Oiling Style:
Through Pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Intake Valve Angle:
24.5/4.4
Exhaust Valve Angle:
15.5/4.2
Intake Runner Volume:
348cc/356cc cu. in.
Exhaust Runner Volume:
145cc cu. in.
CNC-Machined Exhaust Runner:
Yes
CNC-Machined Intake Runner:
Yes
Valve Stem Seals Included:
Yes
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes
GTIN Code:
085347795390

Info

These unported versions of race-wining Edelbrock Victor Series CNC heads are designed specifically for the professional cylinder head porter and engine builder. Like all other Edlebrock Cylinder heads, Pro-Port cylinder heads are also cast int he USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed.
  • CNC Ported To Achieve Optimal Air Flow
  • For Maximum Horsepower And Torque
  • For High Performance Street/Light Duty Racing
  • High Quality Valve Springs
  • Modified To Increase Fuel Efficiency
  • And Maximum Power
  • Made In U.S.A.

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
