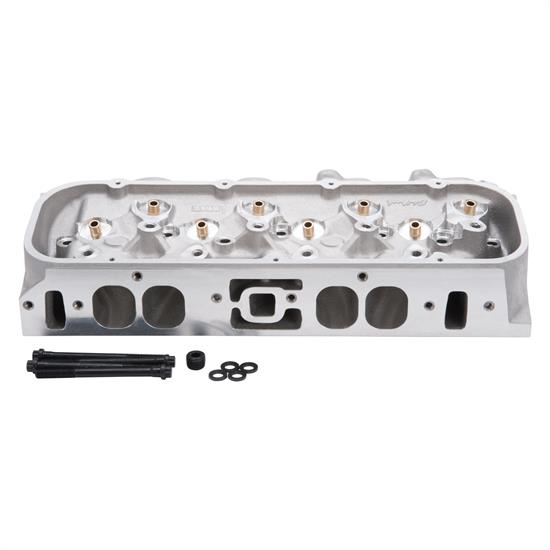

Edelbrock 79449 E-CNC 325 Cylinder Head
Edelbrock 79449 E-CNC 325 Cylinder Head

Edelbrock 79449 E-CNC 325 Cylinder Head

Chevy Big Block V8, Bare Cylinder Head Style, Aluminum, Natural, Is CNC-Machined Runners

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Edelbrock 79449 E-CNC 325 Cylinder Head
Edelbrock 79449 E-CNC 325 Cylinder Head
Zoomed In Image
We estimate this item will ship on or before June 8th.
Part # 32579449
Save 32%
$956.99
$1,423.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for Edelbrock to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Bare
Material Type:
Aluminum
Finish:
Natural
Combustion Chamber Volume:
112cc
Intake Runner Volume:
308cc/325cc
Exhaust Runner Volume:
133cc
Combustion Chamber Volume Range:
110cc - 119cc
Intake Runner Volume Range:
300cc - 309cc
Exhaust Runner Volume Range:
130cc - 139cc
CNC-Machined Runners:
Yes
CNC-Machined Combustion Chamber:
Yes
Spark Plug Style:
Angle
Intake Port Shape:
Oval
Intake Port Location:
Standard
Exhaust Port Shape:
Oval
Exhaust Port Location:
Standard
Intake Valve Diameter:
2.25"
Intake Valves Included:
No
Intake Valve Angle:
24.5/4.4
Exhaust Valve Diameter:
1.88"
Exhaust Valves Included:
No
Exhaust Valve Angle:
15.5/4.2
Valve Spring Included:
No
Damper Spring Included:
No
Machined for O-Ring:
No
Valve Seats Machined:
No
Valve Seat Material:
Ductile Iron
Valve Stem Seals Included:
No
Valve Guides Included:
Yes
Valve Guide Material:
Manganese bronze
Locks Included:
No
Retainers Included:
No
Guideplates Included:
No
Rocker Arms Included:
No
Rocker Arm Studs Included:
No
Rocker Arm Nuts Included:
No
Oiling Style:
Through Pushrod
Heat Crossover:
No
Steam Holes Drilled:
No
Accessory Bolt Holes Drilled:
Yes
Sold in Quantity:
Each
GTIN Code:
085347794492

Info

E-CNC oval port heads for big-block Chevy have a 24.5 degree x 4.4 degree intake valve angle, 15.5 degree x 4.2 degree exhaust valve angle, stock exhaust port locations and spark plug angles that have been modified to produce a smooth flame front for increased fuel efficiency and maximum power. These heads are equipped with high-quality valve springs for valve lifts up to .700in. These E-CNC heads are also treated to a full CNC porting of the combustion chambers as well as the intake and exhaust runners; this improves air-flow and overall performance potential.
  • CNC Ported To Achieve Optimal Air Flow
  • For Maximum Horsepower And Torque
  • High Quality Valve Springs
  • Modified To Increase Fuel Efficiency
  • And Maximum Power
  • Made In U.S.A.

Installation Instructions (PDF)

Notes

Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Heads have CNC intake ports, combustion chambers and exhaust ports, stock exhaust port locations, and the spark plug angles have been modified to produce a smooth flame front.
Some parts are not legal for use in California or other states with similar laws/regulations
