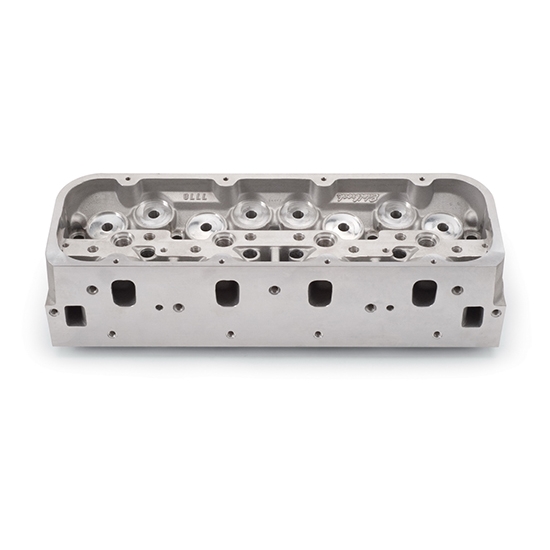

Edelbrock 777668 Victor ROX Series Dirt Track Cylinder Head, Chevy
Edelbrock 777668 Victor ROX Series Dirt Track Cylinder Head, Chevy

Edelbrock 777668 Victor ROX Series Dirt Track Cylinder Head, Chevy

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Edelbrock 777668 Victor ROX Series Dirt Track Cylinder Head, Chevy
Edelbrock 777668 Victor ROX Series Dirt Track Cylinder Head, Chevy
Zoomed In Image
We estimate this item will ship on or before November 3rd.
Part # 325777668
Save 12%
$1,613.99
$1,850.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for Edelbrock to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Bare
Material Type:
Aluminum
Combustion Chamber:
20cc
Intake Valve Diameter:
2.2"
Exhaust Valve Diameter:
1.6"
Spark Plug Style:
Angle
Finish:
Natural
Sold in Quantity:
Each
CNC-Machined Combustion Chamber:
No
Intake Port Location:
Standard
Intake Port Shape:
Rectangle
Exhaust Port Location:
Raised
Exhaust Port Shape:
Square
Intake Valves Included:
No
Exhaust Valves Included:
No
Valve Spring Included:
No
Damper Spring Included:
No
Retainers Included:
No
Locks Included:
No
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Valve Seats Machined:
No
Valve Seat Material:
Powdered Metal
Steam Holes Drilled:
No
Oiling Style:
Through Pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Intake Valve Angle:
10.5/3.4
CNC-Machined Exhaust Runner:
No
CNC-Machined Intake Runner:
No
Valve Stem Seals Included:
No
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
No
GTIN Code:
085347996421

Info

Fully race-oriented designed. Cast with extra material in the ports and chambers. Raised exhaust ports to improve flow efficiency. Supplied with reamed and semi finished valve stem guides. HIP processed for improved quality and strength. Works with existing Edelbrock #2862 SB2 manifold.
  • Fully Race-Oriented Designed
  • Cast With Extra Material In The Ports And Chambers
  • Raised Exhaust Ports To Improve Flow Efficiency
  • Supplied w/Reamed/Semi Finished Valve Stems Guides
  • HIP Processed For Improved Quality And Strength

Notes

Fits blocks with 4.5"" bore spacing and accepts GM ROX style valve covers. This head features raised intake and exhaust spring pockets. Cast with extra material in the intake and exhaust ports and combustion chambers to allow professional CNC porting, along with extra material on the deck to allow for fine tuning of the combustion chamber. These heads require professional preparation.
Some parts are not legal for use in California or other states with similar laws/regulations
