Add to Cart
$1,291.95
$860.99

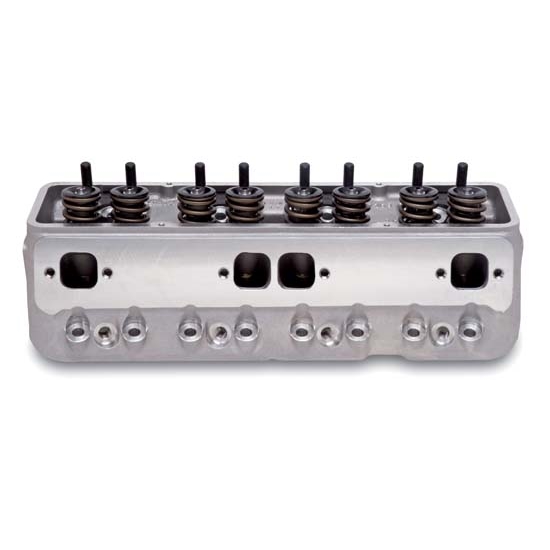

Edelbrock 77619 Victor Jr Cylinder Head, 70 cc, Chevy 302,327,350,400
Edelbrock 77619 Victor Jr Cylinder Head, 70 cc, Chevy 302,327,350,400

Edelbrock 77619 Victor Jr Cylinder Head, 70 cc, Chevy 302,327,350,400

Chevy Small Block V8, Assembled Cylinder Head Style, Aluminum, Natural, Angle Spark Plug Style

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Edelbrock 77619 Victor Jr Cylinder Head, 70 cc, Chevy 302,327,350,400
Edelbrock 77619 Victor Jr Cylinder Head, 70 cc, Chevy 302,327,350,400
Zoomed In Image
We estimate this item will ship on or before October 23rd.
Part # 32577619
Save 33%
$860.99
$1,291.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 4 business days for Edelbrock to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Assembled
Material Type:
Aluminum
Finish:
Natural
Combustion Chamber Volume:
70cc
Intake Runner Volume:
215cc
Exhaust Runner Volume:
85cc
Combustion Chamber Volume Range:
70cc - 79cc
Intake Runner Volume Range:
210cc - 219cc
Exhaust Runner Volume Range:
80cc - 89cc
CNC-Machined Runners:
No
CNC-Machined Combustion Chamber:
No
Spark Plug Style:
Angle
Intake Port Shape:
Rectangle
Intake Port Location:
Standard
Exhaust Port Shape:
Square
Exhaust Port Location:
Standard
Intake Valve Diameter:
2.08"
Intake Valves Included:
Yes
Intake Valve Angle:
23
Exhaust Valve Diameter:
1.6"
Exhaust Valves Included:
Yes
Valve Spring Included:
Yes
Spring Diameter:
1.55"
Damper Spring Included:
Yes
Number of Springs Per Valve:
Dual
Maximum Lift:
0.65"
Machined for O-Ring:
No
Valve Seat Machine Style:
3-angle
Valve Seats Machined:
Yes
Valve Seat Material:
Ductile Iron
Valve Stem Seals Included:
Yes
Valve Stem Seal Type:
Positive Stop
Valve Guides Included:
Yes
Valve Guide Material:
Manganese Bronze
Locks Included:
Yes
Lock Style:
7 Degree
Retainers Included:
Yes
Retainer Material:
Steel
Guideplates Included:
Yes
Guideplate Pushrod Size:
16-May"
Rocker Arms Included:
No
Rocker Arm Studs Included:
Yes
Rocker Arm Nuts Included:
No
Oiling Style:
Through Pushrod
Heat Crossover:
No
Steam Holes Drilled:
No
Accessory Bolt Holes Drilled:
Yes
Notes:
Uses 14mm spark plugs with 3/4" reach, and flat gasket seals
Sold in Quantity:
Each
GTIN Code:
085347776191

Info

Affordable maximum power head for competition and ultra high-performance street. 530-580 hp potential, out-of-the-box, for a cost effective, race-winning set-up. 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8.
  • Ready To Bolt On; Out-Of-The-Box
  • Affordable; Top Quality
  • Race Winning Set-Up
  • Accepts Standard 23 deg. Valvetrain Hardware

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
