Product Summary

318, 340, 360, Carbureted Fuel System Type, Aluminum

    Key Specs

    MFG. Part #7176
    Fuel System TypeCarbureted
    Intake Manifold TypeDual Plane
    Carburetor QuantityOne
    Carburetor Flange Type4-Barrel Square Bore

    Need To Know

    This Product Will Ship Free

    Quick and Easy Returns

    Details

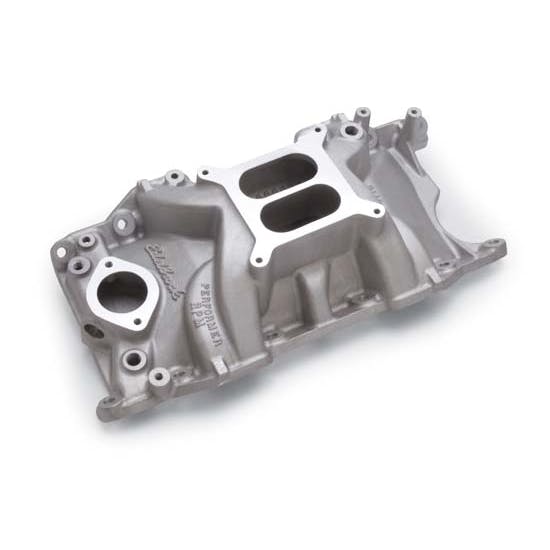

    Performer RPM 340/360 Intake Manifold is designed for 340-360 c.i.d. Chrysler V8's and 318 c.i.d. engines with 340-360 cylinder heads. Latest technology in dual-plane design results in both excellent low-rpm torque and outstanding high-rpm horsepower.
    • Best for the Ultimate in Street High-Performance
    • Designed for 1500 to 6500 RPM Street-Driven Power
    • Dual-Plane High-Rise Intake w/180 deg Firing Order
    • Produces Incredible Top-End Horsepower
    • Retains Good Throttle Response and Acceleration
    • Larger Plenum and Runners Maximizes Other Upgrades
    • Edelbrock Total Power Package Maximizes Gains
    • Cast Finish

    Charts

    CARB Warning

    Follow EPA, CARB, and state regulations for engine changes

    Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

    Specifications

    KEY SPECS
    MFG. Part #7176
    BrandEdelbrock
    Fuel System TypeCarbureted
    Intake Manifold TypeDual Plane
    Carburetor QuantityOne
    Carburetor Flange Type4-Barrel Square Bore
    GENERAL
    RPM Range1,500-6,500
    Material TypeAluminum
    FinishNatural
    EGRNo
    Intake Section IncludedComplete
    Gaskets IncludedNo
    Overall Height5.35"
    Bolt Hole Pattern5.160" x 5.625"
    Sold in QuantityEach
    NotesWill not fit 1992 and later Magnum engines. Accepts early-style water neck only. No provision for exhaust-heated chokes. No exhaust crossover.
    GTIN Code085347071760
