#3257106

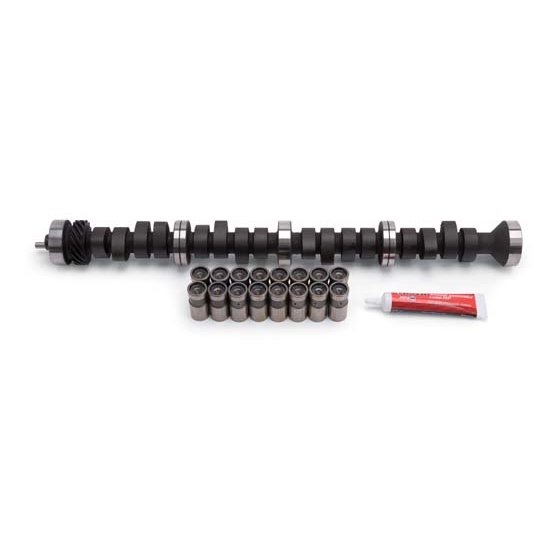

Edelbrock 7106 Performer RPM Camshaft/Lifter Kit, Ford 352-428 FE
Discontinued
This item is currently not available
Shop all Edelbrock Performer RPM Cam and Lifter Kits
Product Summary
352, 360, 390, 406, 427, 428, 296 Intake Duration
See more details
Key Specs
Camshaft Type | Hydraulic Flat Tappet |
Intake Duration (.050" Lift) | 236 |
Exhaust Duration (.050" Lift) | 236 |
RPM Range | 1,500-6,500 |
Lifter Type | Hydraulic Flat Tappet |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Designed for street high-performance applications, Performer RPM cams provide power from 1500 to 6500 rpm.
- Designed for 1500 to 6500 Performance
- Maximum Power in High-RPM with Good Low-End Torque
- Matched to Edelbrock Performer RPM Intakes
- 10 to 12 in. of Manifold Vacuum at Idle
- More Lift and Duration than Most Street Camshafts
- Includes Hydraulic Lifters and Assembly Lube
- Dyno Matched/Street Proven Performance
- Take The Guesswork Out Of Camshaft Selection
Charts
Guides & Documents
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
CARB Warning
Follow EPA, CARB, and state regulations for engine changes
Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine
Specifications
Specifications
KEY SPECS | |
---|---|
Brand | Edelbrock |
Camshaft Type | Hydraulic Flat Tappet |
Intake Duration (.050" Lift) | 236 |
Exhaust Duration (.050" Lift) | 236 |
RPM Range | 1,500-6,500 |
Lifter Type | Hydraulic Flat Tappet |
GENERAL | |
Intake Valve Lift w/ Rocker Arm Ratio | 0.572" |
Exhaust Valve Lift w/ Rocker Arm Ratio | 0.572" |
Sold in Quantity | Kit |
Intake Duration | 296 |
Exhaust Duration | 296 |
GTIN Code | 085347071067 |
External Ignition Box Required | No |
Valve Spring Required | Yes |
Valve Spring Included | No |
Lifters Included | Yes |
Retainers Included | No |
Locks Included | No |
Timing Chain and Gears Included | No |
Assembly Lubricant Included | Yes |
Pushrods Included | |
Rocker Arms Included | No |
Notes | Will not fit factory Ford FE solid lifter engine blocks. Although the advertised RPM range for these camshafts is 1,500 to 6,500 rpm, for best performance we recommend a minimum 3,000 rpm stall torque converter be used in applications with automatic transmissions. |
