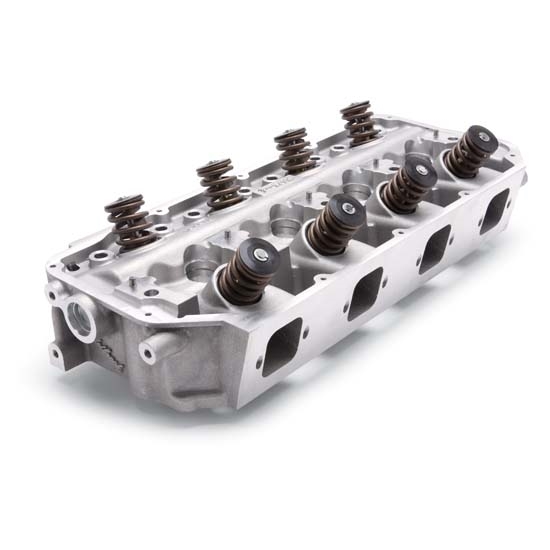

Edelbrock 61175 Victor Jr.CNC Head Cylinder Head, Chrysler 426-572
Edelbrock 61175 Victor Jr.CNC Head Cylinder Head, Chrysler 426-572

Edelbrock 61175 Victor Jr.CNC Head Cylinder Head, Chrysler 426-572

426 Chrysler Hemi V8, Assembled Cylinder Head Style, Aluminum, Natural, Round Intake Port Shape

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Edelbrock 61175 Victor Jr.CNC Head Cylinder Head, Chrysler 426-572
Edelbrock 61175 Victor Jr.CNC Head Cylinder Head, Chrysler 426-572
Zoomed In Image
We estimate this item will ship on or before October 5th.
Part # 32561175
Save 19%
$1,354.99
$1,683.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for Edelbrock to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Assembled
Material Type:
Aluminum
Finish:
Natural
Combustion Chamber Volume:
170cc
Intake Runner Volume:
245cc
Exhaust Runner Volume:
105cc
Combustion Chamber Volume Range:
170cc - 179cc
Intake Runner Volume Range:
240cc - 249cc
Exhaust Runner Volume Range:
100cc - 109cc
CNC-Machined Runners:
No
CNC-Machined Combustion Chamber:
Yes
Spark Plug Style:
Straight
Intake Port Shape:
Round
Intake Port Location:
Standard
Exhaust Port Shape:
Square
Exhaust Port Location:
Standard
Intake Valve Diameter:
2.32"
Intake Valves Included:
Yes
Exhaust Valve Diameter:
1.94"
Exhaust Valves Included:
Yes
Valve Spring Included:
Yes
Spring Diameter:
1.54"
Damper Spring Included:
Yes
Number of Springs Per Valve:
Single
Maximum Lift:
0.7"
Machined for O-Ring:
No
Valve Seats Machined:
Yes
Valve Stem Seals Included:
Yes
Valve Guides Included:
Yes
Valve Guide Material:
manganese bronze
Locks Included:
Yes
Retainers Included:
Yes
Guideplates Included:
No
Rocker Arms Included:
No
Rocker Arm Studs Included:
No
Rocker Arm Nuts Included:
No
Oiling Style:
Through Pushrod
Heat Crossover:
No
Steam Holes Drilled:
No
Accessory Bolt Holes Drilled:
Yes
Notes:
Uses 14mm spark plugs with 3/4" reach, and flat gasket seals
Sold in Quantity:
Each
GTIN Code:
085347611751

Info

These satin assembled aluminum Victor Jr. CNC cylinder heads from Edelbrock are direct bolt-on replacements for high performance Chrylser 426 and 572 HEMI engines. They feature fully CNC machined combustion chambers and blended seats for increased air flow as well as revised exhaust valve angles for larger intake valves and come equipped with springs for use with hydraulic roller camshafts.
  • CNC Chambers
  • CNC Blended Valve Seats
  • Revised Exhaust Valve Angle
Some parts are not legal for use in California or other states with similar laws/regulations
