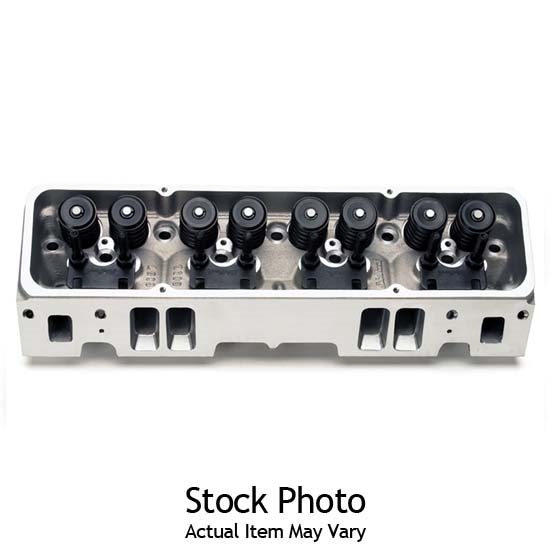

Edelbrock 60959 E-Tec Cylinder Head, 170 cc, Chevy 302,327,350,400
Edelbrock 60959 E-Tec Cylinder Head, 170 cc, Chevy 302,327,350,400

Edelbrock 60959 E-Tec Cylinder Head, 170 cc, Chevy 302,327,350,400

Chevy Small Block V8, Bare Cylinder Head Style, Aluminum, Natural, Not CNC-Machined Runners

0 Reviews | 1 Answered Question
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Edelbrock 60959 E-Tec Cylinder Head, 170 cc, Chevy 302,327,350,400
Edelbrock 60959 E-Tec Cylinder Head, 170 cc, Chevy 302,327,350,400
Zoomed In Image
We estimate this item will ship on or before June 1st.
Part # 32560959
Save 24%
$582.99
$772.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 4 business days for Edelbrock to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Bare
Material Type:
Aluminum
Finish:
Natural
Combustion Chamber Volume:
64cc
Intake Runner Volume:
170cc
Exhaust Runner Volume:
70cc
Combustion Chamber Volume Range:
60cc - 69cc
Intake Runner Volume Range:
170cc - 179cc
Exhaust Runner Volume Range:
70cc - 79cc
CNC-Machined Runners:
No
CNC-Machined Combustion Chamber:
No
Spark Plug Style:
Straight
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Intake Valve Diameter:
1.94"
Intake Valves Included:
No
Intake Valve Angle:
23
Exhaust Valves Included:
No
Valve Spring Included:
No
Damper Spring Included:
No
Machined for O-Ring:
No
Valve Seats Machined:
No
Valve Seat Material:
Powdered Metal
Valve Stem Seals Included:
No
Valve Guides Included:
Yes
Valve Guide Material:
Manganese bronze
Locks Included:
No
Retainers Included:
No
Guideplates Included:
No
Rocker Arms Included:
No
Rocker Arm Studs Included:
No
Rocker Arm Nuts Included:
No
Oiling Style:
Through Pushrod
Heat Crossover:
Yes
Steam Holes Drilled:
No
Accessory Bolt Holes Drilled:
Yes
Notes:
Uses 14mm spark plugs with 3/4" reach, and flat gasket seals
Sold in Quantity:
Each
GTIN Code:
085347609598

Info

Edelbrock E-Tec Series Cylinder Head is designed for 1987-95 Throttle Body Injected (T.B.I.) and Tuned Port Injected (T.P.I.) 5.7L S/B Chevy engines originally equipped with centerbolt valve covers.
  • 170cc Intake 64cc Chamber for Vortec-Style Intake
  • 20 Prct Inc Flow Over Cast-Iron Vortec Heads
  • Accept Standard or Center-Bolt Valve Covers
  • Hand-Blended Intake and Exhaust Bowls
  • Heli-Coils in Rocker Studs and Exhaust Bolt Holes

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
