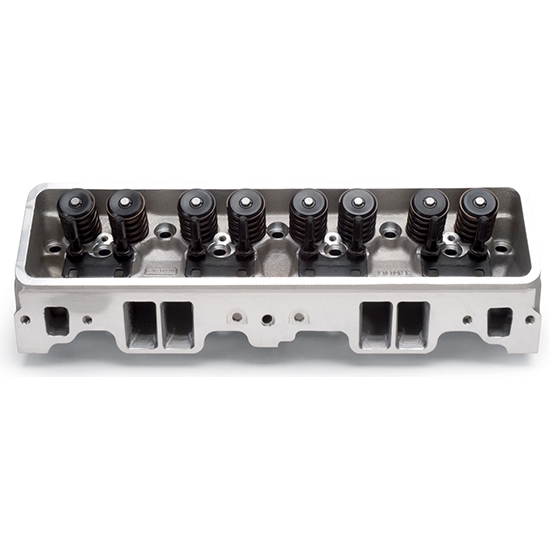

Edelbrock 60869 Performer Centerbolt Cylinder Head, Bare, SB Chevy
Edelbrock 60869 Performer Centerbolt Cylinder Head, Bare, SB Chevy

Edelbrock 60869 Performer Centerbolt Cylinder Head, Bare, SB Chevy

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Edelbrock 60869 Performer Centerbolt Cylinder Head, Bare, SB Chevy
Edelbrock 60869 Performer Centerbolt Cylinder Head, Bare, SB Chevy
Zoomed In Image
We estimate this item will ship on or before December 7th.
Part # 32560869
Save 23%
$577.99
$759.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for Edelbrock to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Bare
Material Type:
Aluminum
Combustion Chamber:
60cc
Intake Valve Diameter:
2.02"
Exhaust Valve Diameter:
1.6"
Spark Plug Style:
Straight
Finish:
Natural
Sold in Quantity:
Each
CNC-Machined Combustion Chamber:
No
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Exhaust Port Shape:
Square
Intake Valves Included:
No
Exhaust Valves Included:
No
Valve Spring Included:
No
Damper Spring Included:
No
Retainers Included:
No
Locks Included:
No
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
No
Valve Seat Material:
Powdered Metal
Steam Holes Drilled:
No
Oiling Style:
Through Pushrod
Machined for O-Ring:
No
Heat Crossover:
Yes
Intake Valve Angle:
23
Intake Runner Volume:
165cc cu. in.
Exhaust Runner Volume:
65cc cu. in.
CNC-Machined Exhaust Runner:
No
CNC-Machined Intake Runner:
No
Valve Stem Seals Included:
No
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes
GTIN Code:
085347608690

Info

Designed for 1986-91 Tuned Port Injected 5.7L small-block Chevy Corvette engines originally equipped with centerbolt valve covers. Performer centerbolt cylinder heads are 50-statelegal and accept factory centerbolt valve covers. The intake bolt pattern utilizes the 1986-91 straight 90 degree angle on all bolts. Spark plugs are angled like stock O.E. heads.
  • 50-State Street Legal Aluminum Cylinder Head
  • Out-of-the-Box Bolt-On Performance
  • 60cc Combustion Chamber Improves Performance

Installation Instructions (PDF)

Notes

Designed for 1986-91 Tuned Port Injected (T.P.I) 5.7L small-block Chevy Corvette engines originally equipped with centerbolt valve covers. The intake bolt pattern utilizes the 1986-91 (straight) 90? angle on all bolts. Spark plugs are angled like stock O.E. heads. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using.
Some parts are not legal for use in California or other states with similar laws/regulations
