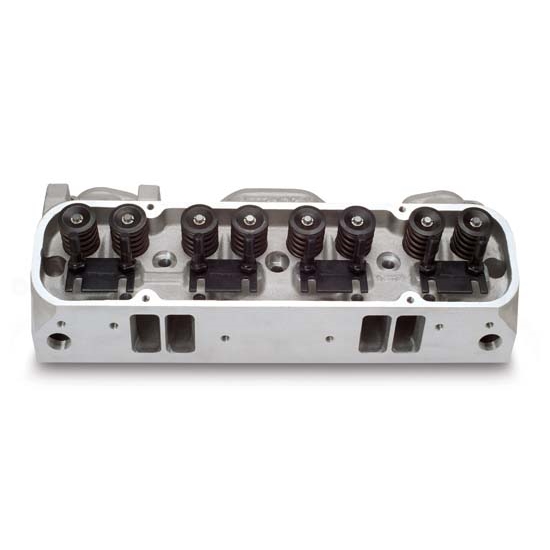

Edelbrock 60599 Performer RPM Cylinder Head, Pontiac
Edelbrock 60599 Performer RPM Cylinder Head, Pontiac

Edelbrock 60599 Performer RPM Cylinder Head, Pontiac

389 Pontiac V8, 400 Pontiac V8, 421 Pontiac V8, 428 Pontiac V8, 455 Pontiac V8, Aluminum

0 Reviews | 1 Answered Question
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Edelbrock 60599 Performer RPM Cylinder Head, Pontiac
Edelbrock 60599 Performer RPM Cylinder Head, Pontiac
Zoomed In Image
We estimate this item will ship on or before October 2nd.
Part # 32560599
Save 12%
$1,396.99
$1,601.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 4 business days for Edelbrock to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Assembled
Material Type:
Aluminum
Finish:
Natural
Combustion Chamber Volume:
72cc
Intake Runner Volume:
215cc
Exhaust Runner Volume:
175cc
Combustion Chamber Volume Range:
70cc - 79cc
Intake Runner Volume Range:
210cc - 219cc
Exhaust Runner Volume Range:
170cc - 179cc
CNC-Machined Runners:
No
CNC-Machined Combustion Chamber:
No
Intake Port Location:
Standard
Exhaust Port Shape:
Ram Air IV
Exhaust Port Location:
Standard
Intake Valve Diameter:
2.11"
Intake Valves Included:
Yes
Intake Valve Angle:
14
Exhaust Valve Diameter:
1.66"
Exhaust Valves Included:
Yes
Valve Spring Included:
Yes
Spring Diameter:
1.46"
Damper Spring Included:
Yes
Number of Springs Per Valve:
Single
Maximum Lift:
0.575"
Machined for O-Ring:
No
Valve Seat Machine Style:
3-angle
Valve Seats Machined:
Yes
Valve Seat Material:
Ductile Iron
Valve Stem Seals Included:
Yes
Valve Stem Seal Type:
Positive Stop
Valve Guides Included:
Yes
Valve Guide Material:
manganese bronze
Locks Included:
Yes
Lock Style:
7 Degree
Retainers Included:
Yes
Retainer Material:
Steel
Guideplates Included:
Yes
Guideplate Pushrod Size:
16-May"
Rocker Arms Included:
No
Rocker Arm Studs Included:
Yes
Rocker Arm Nuts Included:
No
Oiling Style:
Through Pushrod
Heat Crossover:
Yes
Steam Holes Drilled:
No
Accessory Bolt Holes Drilled:
Yes
Notes:
Uses 14mm spark plugs with 3/4" reach, and flat gasket seals
Sold in Quantity:
Each
GTIN Code:
085347605996

Info

These cylinder heads for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They are patterned after the 1969-70 Air IV Pontiac cylinder head. They feature 87cc combustion chambers designed to maximize performance while using less expensive, low-octane fuel with streetable 9.5:1 compression ratio. Our Performer RPM heads with the 72cc combustion chamber are for higher compression engine.
  • Out-of-the-Box Bolt-On Performance
  • Maximize Performance w/Low-Octane Fuel
  • Maximize Streetable Compression
  • Patterned After The Ram Air IV Pontiac Cyl. Head

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
