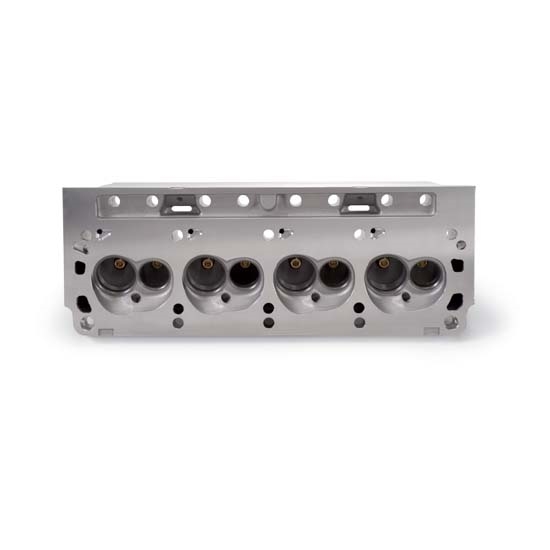

Edelbrock 5020 E-Street Cylinder Head, Small Block Ford, 1.90 Inch
Edelbrock 5020 E-Street Cylinder Head, Small Block Ford, 1.90 Inch

Edelbrock 5020 E-Street Cylinder Head, Small Block Ford, 1.90 Inch

289 Ford Small Block V8, 302 Ford Small Block V8, 351W Ford Small Block V8, Aluminum, Natural

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Edelbrock 5020 E-Street Cylinder Head, Small Block Ford, 1.90 Inch
Edelbrock 5020 E-Street Cylinder Head, Small Block Ford, 1.90 Inch
Zoomed In Image
We estimate this item will ship on or before December 31st.
Part # 3255020
Save 31%
$710.99
$1,030.95
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for Edelbrock to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Cylinder Head Style:
Bare
Material Type:
Aluminum
Finish:
Natural
Combustion Chamber Volume:
60cc
Intake Runner Volume:
170cc
Exhaust Runner Volume:
60cc
Combustion Chamber Volume Range:
60cc - 69cc
Intake Runner Volume Range:
170cc - 179cc
Exhaust Runner Volume Range:
60cc - 69cc
Combustion Chamber Style:
Heart
CNC-Machined Runners:
No
CNC-Machined Combustion Chamber:
No
Spark Plug Style:
Straight
Intake Port Location:
Standard
Exhaust Port Shape:
Square
Exhaust Port Location:
Standard
Intake Valve Diameter:
1.900"
Intake Valves Included:
No
Exhaust Valve Diameter:
1.600"
Exhaust Valves Included:
No
Valve Spring Included:
No
Damper Spring Included:
No
Machined for O-Ring:
No
Valve Seat Machine Style:
3-angle
Valve Seats Machined:
Yes
Valve Seat Material:
Powdered Metal
Valve Stem Seals Included:
No
Valve Guides Included:
Yes
Valve Guide Material:
Manganese Bronze
Locks Included:
No
Retainers Included:
No
Guideplates Included:
No
Rocker Arms Included:
No
Rocker Arm Studs Included:
No
Rocker Arm Nuts Included:
No
Oiling Style:
Through Pushrod
Heat Crossover:
No
Steam Holes Drilled:
No
Accessory Bolt Holes Drilled:
Yes
Notes:
Uses 14mm spark plugs with 3/4" reach, and flat gasket seals
Sold in Quantity:
Pair
GTIN Code:
085347050208

Info

Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. They are available for popular V8 engines.

The 75cc combustion chamber allows this head to be used with stock pistons, retaining the 9.5:1 compression. The modern combustion chamber design also improves the combustion process and the larger than stock intake and exhaust ports move more air through your engine. These features improve the engine's efficiency, resulting in more horsepower and torque.

  • Entry Level Street Performance Upgrade
  • A356 Aluminum
  • Sold As A Pair
  • Edelbrock Quality And Performance
  • Affordable Price
  • Made In U.S.A.

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
