Edelbrock 46890 E-Force Supercharged 5.0L Coyote Crate Engine

1 Question

Finish: Black powder coated
Displacement: 5.0L (302 c.i.d.)
Horsepower: 785 hp

$33,185.95

Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before October 10th.

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

5.0, Deluxe Crate Engine Crate Engine Type

Finish: Black powder coated
Displacement: 5.0L (302 c.i.d.)
Horsepower: 785 hp
Torque: 660 ft-lbs
Compression: 9.5:1

See more details

Key Specs

Crate Engine Type	Deluxe Crate Engine
Engine Displacement	302 cu. in.
Horsepower	785 horsepower
Compression Ratio	9.5:1
Torque	660 ft./lbs.

See more specs

Need To Know

Truck Ship

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

Quick and Easy Returns

Edelbrock 46890 Details

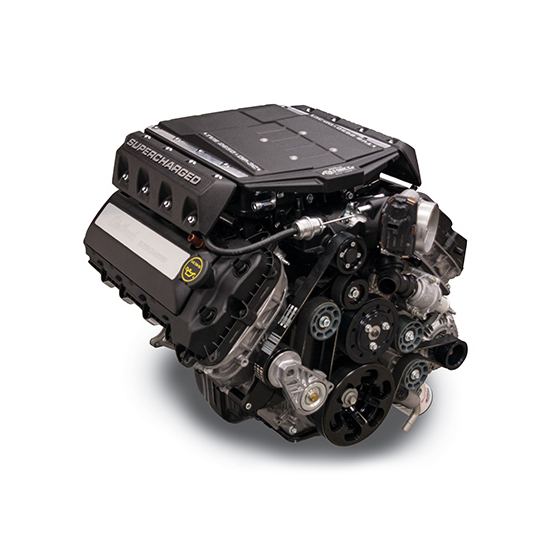

Edelbrock supercharged 5.0L Ford Coyote crate engine part #46890 produced 785 hp and 660 ft-lbs. of torque (with 93 octane fuel) at the flywheel. The core of this engine is a brand new Ford lightweight aluminum block with forged and balanced crankshaft, forged Manley H-Beam connecting rods and Mahle forged aluminum pistons. Sitting on top is an Edelbrock supercharger with Eaton TVS R2650 rotors. Also included are the essential supercharger kit components, such as the 8 rib drive belt, electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb./hr. fuel injectors, coils, mass air flow sensor (MAFS) housing and re-usable air filter. Includes all front end drive accessories: water pump, alternator, idlers, tensioners, belts and hardware. Pair with universal heat exchangers for a complete installation.

Engine Specifications

Finish: Black powder coated
Displacement: 5.0L (302 c.i.d.)
Horsepower: 785 hp
Torque: 660 ft-lbs
Compression: 9.5:1
Block: Ford Aluminum
Crankshaft: Forged
Pistons: Mahle Forged Aluminum
Rods: Manley Forged H-Beam
Camshafts: Stock Ford
Rocker Arms: Stock Ford 2-1 Ratio
Induction: Supercharger System
Cylinder Heads: Stock Four-Valve Aluminum w/ Boss 302 valve springs
Warranty: 2-year / Unlimited mileage

Guides & Documents

Crate Engines Instruction Sheet (32546890)

Crate Engines Guide/Document (32546890)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA Prop 65

CARB warning

Edelbrock 46890 Specifications

KEY SPECS
MFG. Part #	46890
Brand	Edelbrock
Crate Engine Type	Deluxe Crate Engine
Engine Displacement	302 cu. in.
Horsepower	785 horsepower
Compression Ratio	9.5:1
Torque	660 ft./lbs.
Camshaft Type	Stock Ford
Cylinder Head Material	Aluminum
Piston Material	Forged Aluminum
Crankshaft Material	Forged Steel
Intake Manifold Included	Yes
Distributor Included	Yes
Connecting Rod Material	Forged Steel
Valve Covers Included	Yes
Cylinder Heads Included	Yes
Water Pump Included	Yes
Harmonic Balancer Included	Yes
Air Cleaner Included	Yes
Wiring Harness Included	Yes
Recommended Fuel	Premium

GENERAL
Warranty	2-year/unlimited mileage
Assembled	Yes
Camshaft Included	Yes
Cylinder Heads	Stock Four-Valve Aluminum w/ Boss 302 valve springs
Rocker Arms	Stock Ford 2-1 Ratio
Block	Ford Aluminum
GTIN Code	085347468904
Notes	This engine package comes complete with essential supercharger kit components, such as the electric intercooler water pump, intercooler plumbing and intercooler recovery tank, as well as fuel rails, 60 lb/hr. fuel injectors, coils, mass air flow sensor (MAFS) housing and re-usable air filter. Includes all front end drive accessories: water pump, alternator, idlers, tensioners, belts and hardware.
Sold in Quantity	Each
