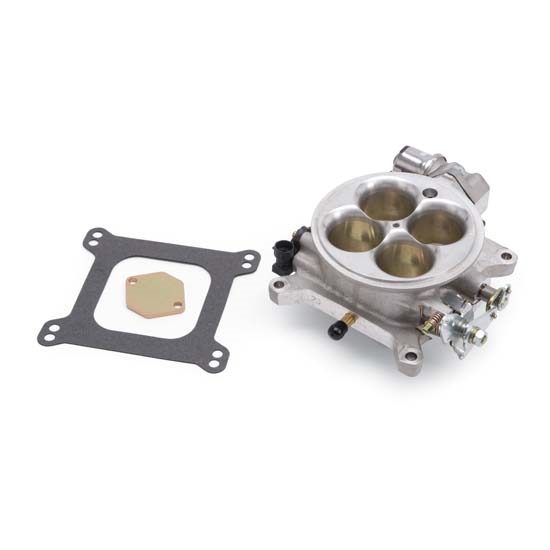

Edelbrock 38783 Throttle Body Assembly, 1,000 cfm, 4-Barrel
- This throttle body mounts on a standard 4150-style square-bore carburetor bolt spacing.
- It is sand cast, fully machined, and assembled by Edelbrock.
- The #38783 has 1.75" Throttle Bores and accepts a Standard (5-1/8" Flange) Air Cleaner assembly.
See More
$608.95
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before April 13th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 4-Barrel Throttle Body Barrels, Natural
- This throttle body mounts on a standard 4150-style square-bore carburetor bolt spacing.
- It is sand cast, fully machined, and assembled by Edelbrock.
- The #38783 has 1.75" Throttle Bores and accepts a Standard (5-1/8" Flange) Air Cleaner assembly.
- A 2-Pin Hitachi PWM Style IAC Motor and 3-Pin TPS are included.
- Satin Finish
See more details
Key Specs
| MFG. Part # | 38783 |
| Brand | Edelbrock |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 38783 Details
Edelbrock 38783 Details
The Edelbrock #38783 Victor EFI 4-Barrel Throttle Body complements our Victor EFI line of manifolds.
- This throttle body mounts on a standard 4150-style square-bore carburetor bolt spacing.
- It is sand cast, fully machined, and assembled by Edelbrock.
- The #38783 has 1.75" Throttle Bores and accepts a Standard (5-1/8" Flange) Air Cleaner assembly.
- A 2-Pin Hitachi PWM Style IAC Motor and 3-Pin TPS are included.
- Satin Finish
Guides & Documents
Edelbrock 38783 Specifications
Edelbrock 38783 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 38783 |
| Brand | Edelbrock |
| GENERAL | |
| Throttle Body Style | Multi-Port Injection (MPI) |
| Throttle Body Barrels | 4-Barrel |
| CFM | 1100 CFM |
| Throttle Body Flange Type | 4-Barrel Square Bore |
| Throttle Body Material | Cast Aluminum |
| Throttle Body Finish | Natural |
| Color | Natural |
| TPS Sensor Included | Yes |
| IAC Motor Included | Yes |
| Injectors Included | No |
| Gaskets Included | Yes |
| Hardware Included | Yes |
| Notes | Designed for use with Hitachi style linear IAC motor, 1.75 in. throttle bores, fits square bore carburetor flange intake manifolds only. |
| GTIN Code | 085347387830 |
| Sold in Quantity | Each |
| Venturi Quantity | 4 |
