#325358400
Edelbrock 358400 Pro-Flo 4, 4150, Gen V BBC, Oval Port, No Tablet
Discontinued
This item is currently not available
Shop all Edelbrock Pro-Flo 4 EFI Kits
Product Summary
396, 402, 427, 454, Multi-port Injection Style, Natural
See more details
Key Specs
Injection Style | Multi-port |
CFM | 1000 CFM |
Injector Size | 60 lbs./hr. |
Max Horsepower Rating | 850 |
ECM Included | Yes |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 358400 Details
Edelbrock 358400 Details

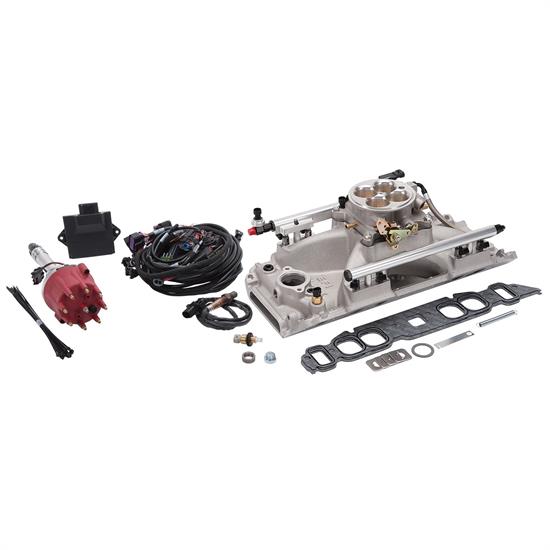

The Edelbrock part # 358400 Pro-Flo 4 EFI System for Big-Block Chevy Oval Port engines is equipped with the latest in technology and features. The EFI system comes complete with a traditional 4150-Style single plane intake manifold and 60 Lb/Hr injectors capable of 950 HP with 58 p.s.i. fuel pressure. Also included is a plug and play single connection distributor designed to work specifically with Pro-Flo 4 and a made in the USA fully terminated high-quality harness with clearly labeled connections to ensure a hassle-free installation. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. Please Note "Kit 358400 DOES NOT include a 7" Android tablet". If you don't have a compatible device, then we also offer kits that include a 7" Android tablet with the E-Tuner 4 app installed. Pro-Flo 4 does not require laptop tuning.
- Edelbrock 358400
- Pro-Flo 4 XT Sequential Port EFI System
- 60 Lb/Hr Injectors
- Capable of 950 HP
- No tablet included
- Big-Block Chevy Oval Port
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Edelbrock 358400 Specifications
Edelbrock 358400 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 358400 |
Brand | Edelbrock |
Injection Style | Multi-port |
CFM | 1000 CFM |
Injector Size | 60 lbs./hr. |
Max Horsepower Rating | 850 |
ECM Included | Yes |
GENERAL | |
User Tunable | Yes |
Self Tuning | Yes |
Injectors Included | Yes |
Intake Manifold Included | Yes |
Intake Section Included | Complete |
Metering Style | Speed density |
EGR | No |
Throttle Body Included | Yes |
Throttle Body Material | Aluminum |
Throttle Body Finish | Natural |
Throttle Body Flange Type | 4-Barrel Square Bore |
Intake Material | Aluminum |
Intake Finish | Natural |
Venturi Quantity | 4 |
Fuel Pump Included | No |
Fuel Rails Included | Yes |
Calibration Module Included | No |
Wiring Harness Included | Yes |
Fuel Pressure Regulator Included | No |
Distributor Included | Yes |
MAP Sensor Included | Yes |
IAC Motor Included | Yes |
IAT Sensor Included | Yes |
TPS Sensor Included | Yes |
Venturi Diameter | 44.45mm |
Notes | Requires an Android Bluetooth compatible device to sync with ECU (not included). |
GTIN Code | 085347999866 |
Sold in Quantity | Kit |
