Details

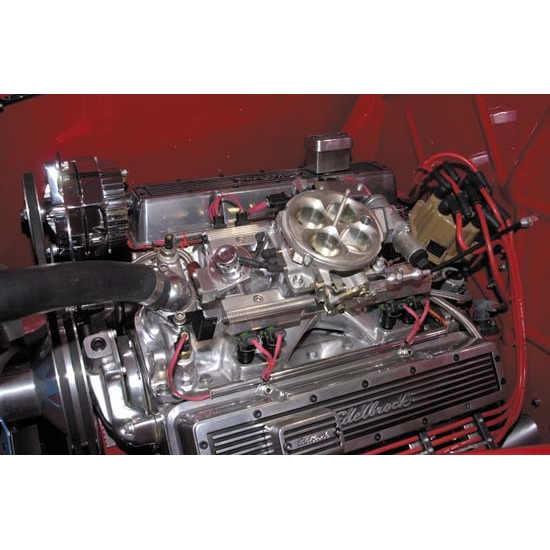

These Pro-Flo 2 systems are designed for 1986 and earlier small-block Chevy engines with standard heads or small-block Chevy's with Vortec-style heads, like the Edelbrock E-Tec aluminum heads. They feature a 4V throttle body for even greater performance potential. These systems deliver optimal horsepower and torque in the 1500 to 7000 rpm range.
  • Complete Fully Sequential EFI System
  • Convert Carbureted Engine To Modern EFI System
  • Includes Everything Needed

Installation Instructions (PDF)

Specifications

KEY SPECS
BrandEdelbrock
GENERAL
NotesA laptop or PC is required for initial flash set-up. A CD and USB hook-up are included.
Sold in QuantityKit
GTIN Code085347350001
EGRNo
Injection StyleSequential multi-port
Metering StyleSpeed density (Map-N) and speed throttle (Alpha-N)
Intake Manifold IncludedYes
Intake Section IncludedComplete
Fuel Rails IncludedYes
Throttle Body IncludedYes
Injectors IncludedYes
Calibration Module IncludedYes
Wiring Harness IncludedYes
Fuel Pump IncludedYes
Distributor IncludedNo
TPS Sensor IncludedYes
IAC Motor IncludedYes
IAT Sensor IncludedYes
MAP Sensor IncludedYes
Fuel Pressure Regulator IncludedYes
ECM IncludedYes
Injector Size27 lbs./hr.
Throttle Body FinishNatural
Throttle Body MaterialCast Aluminum
Venturi Quantity4
Throttle Body Flange Type4-Barrel Square Bore
Intake MaterialAluminum
Intake FinishNatural
ColorNatural
