Part # 3252066

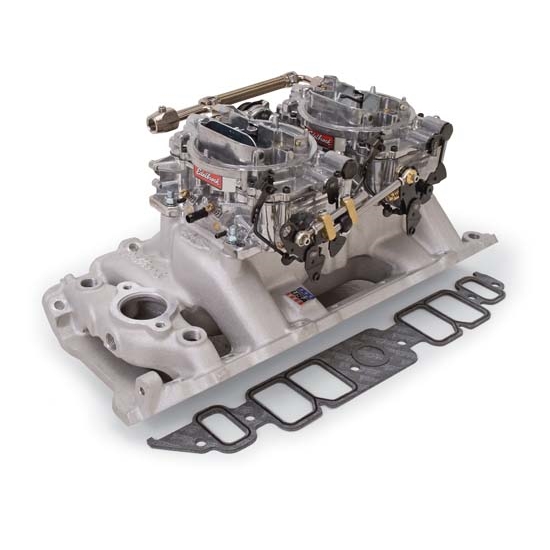

Edelbrock 2066 RPM Air-Gap Dual-Quad Intake Manifold/Carburetor Kit

by

|

$1,368.99

each

Discontinued

$1,752.95

Save $383.96


This item is currently not available

Shop all Intake Manifold/Carburetor Kits

Product Summary

396, 402, 427, 454, 496, 502, 572, 500 CFM CFM, Satin

    Key Specs

    Intake Manifold TypeDual Plane | High Rise
    Carburetor QuantityTwo
    Carburetor Barrels4-Barrel
    Carburetor Flange Type4-Barrel Square Bore
    CFM500 CFM

    Need To Know

    This Product Will Ship Free

    Need help? Call 800.979.0122

    Quick and Easy Returns

    Details

    This RPM Dual-Quad Manifold and Carb Kit from Edelbrock is just what you need for your Big-Block Chevy with rectangular ports. These offer the ultimate setup for anyone that wants the look and the performance of dual-quad carbs. These kits include a high-tech throttle linkage, Russel fuel inlet and high quality intake gaskets from Edelbrock for a simple installation. This manifold and carb kit comes in a standard satin finish.

    • For Big-Block Chevy with rectangular ports
    • High-tech throttle linkage
    • Satin Finish
    • Sold as Kit

    Kit includes:

    • Intake Manifold (3257522)
    • Electric Carburetor (3251803)
    • Manual Carburetor (3251804)
    • Throttle Linkage (3257094)
    • Fuel Line (3258091)
    • Intake Gaskets (7202)
    • Intake Bolt Kit (8564)
    • Carburetor Stud Kit (8008)

    Multiple Carburetor Tech Tip (Link)

    Specifications

    KEY SPECS
    MFG. Part #2066
    Intake Manifold TypeDual Plane | High Rise
    Carburetor QuantityTwo
    Carburetor Barrels4-Barrel
    Carburetor Flange Type4-Barrel Square Bore
    CFM500 CFM
    GENERAL
    RPM Range1,500-6,500
    Choke TypeElectric
    Fuel TypeGasoline
    Intake Manifold MaterialAluminum
    Intake Manifold FinishSatin
    Carburetor FinishSatin
    Air Cleaner TypeNot Included
    Secondary TypeAir Valve
    Fuel Inlet TypeSingle
    Overall Height5.56"
    EGRNo
    Linkage IncludedYes
    Throttle Linkage TypeProgressive
    Fuel Line IncludedYes
    Intake Gaskets IncludedYes
    Valve Cover Gaskets IncludedNo
    Gasket(s) IncludedYes
    Bolts/Studs IncludedYes
    Intake Manifold Fasteners IncludedNo
    NotesFor Big-Block Chevy Rectangular Port applications.
    GTIN Code085347020669
    Sold in QuantityKit
