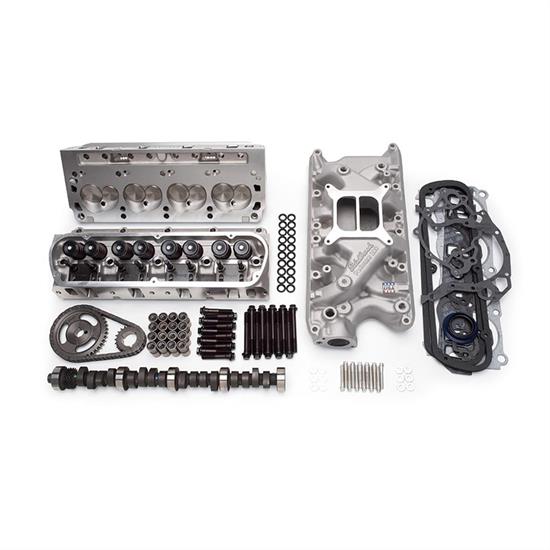

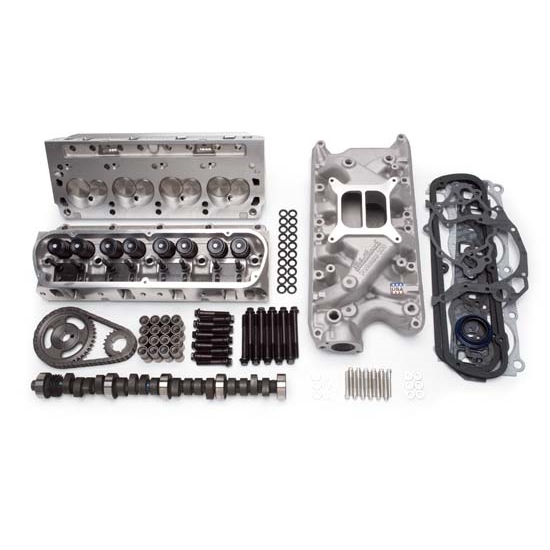

Edelbrock 2027 Power Package Top End Engine Kit, Ford
1 Review
|
5 Questions
- Cylinder heads and intake is made from aluminum
- Features all In one box convenience for less hassle
- Intake and exhaust ports are in the standard locations
See More
$2,787.95
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 15th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
289, 302, Assembled Cylinder Head Style, Locks Included
- Cylinder heads and intake is made from aluminum
- Features all In one box convenience for less hassle
- Intake and exhaust ports are in the standard locations
- Has all the matched parts available under one part number
- Intake valves have a 1.900" diameter and the exhaust valves are 1.600" in diameter
See more details
Key Specs
MFG. Part # | 2027 |
Brand | Edelbrock |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 2027 Details
Edelbrock 2027 Details
The Edelbrock Total Power Package concept of selling dyno-matched components has been popular since the 1980s, but with the introduction of the Performer RPM Power Package Top End Kits, Edelbrock matched parts are now available under one part number!
- Matched Parts Available Under One Part Number
- All In One Box Convenience
- Make Things Easier In Parts Selection
- Includes Almost Everything You Need
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Edelbrock 2027 Specifications
Edelbrock 2027 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 2027 |
Brand | Edelbrock |
GENERAL | |
Speedway Motors Catalog Part # | 325-2027 |
Cylinder Head Style | Assembled |
Combustion Chamber Volume | 60cc |
Intake Valve Diameter | 1.900 in. |
Exhaust Valve Diameter | 1.600 in. |
Valve Stem Included | Yes |
Rocker Arms Included | No |
Thread Pitch | 3/8-24 in. |
Camshaft Included | Yes |
Intake Manifold Included | Yes |
Intake Style | Dual Plane |
Lifters Included | Yes |
Cylinder Head Material | Aluminum |
CNC-Machined Combustion Chamber | No |
Intake Port Location | Standard |
Exhaust Port Location | Standard |
Spark Plug Style | Straight |
Intake Valves Included | Yes |
Exhaust Valves Included | Yes |
Valve Spring Included | Yes |
Outside Diameter of Outer Spring | 1.250 in. |
Damper Spring Included | Yes |
Number of Springs Per Valve | Single |
Retainer Material | Steel |
Retainers Included | Yes |
Locks Included | Yes |
Lock Style | 7 Degree |
Valve Stem Seal Type | Umbrella |
Rocker Arm Studs Included | No |
Guideplates Included | No |
Accessory Bolt Holes Drilled | Yes |
Valve Guide Material | Manganese Bronze |
Valve Seats Machined | Yes |
Steam Holes Drilled | No |
Valve Seat Material | Ductile Iron |
Machined for O-Ring | No |
Heat Crossover | No |
Oiling Style | Through Pushrod |
Cylinder Heads Included | Yes |
Head Gaskets Included | Yes |
Carburetor Quantity | One |
RPM Range | Idle-5,500 |
Intake Finish | Natural |
Intake Material | Aluminum |
Intake Manifold Fasteners Included | Yes |
Camshaft Type | Hydraulic Flat Tappet |
Intake Duration | 204 |
Exhaust Duration | 214 |
Exhaust Duration (.050" Lift) | 214 |
Intake Duration (.050" Lift) | 204 |
Intake Valve Lift w/ Rocker Arm Ratio | 0.448 in. |
Exhaust Valve Lift w/ Rocker Arm Ratio | 0.472 in. |
Valve Guides Included | Yes |
Intake Gaskets Included | Yes |
Advertised Intake Duration | 270 |
Advertised Exhaust Duration | 280 |
GTIN Code | 085347020270 |
Sold in Quantity | Kit |
CNC-Machined Runners | No |
