Edelbrock 2022 Power Package Top End Engine Kit, Chevy
Edelbrock 2022 Power Package Top End Engine Kit, Chevy
Chevy Small Block V8, Natural, Aluminum, 4-Barrel Square Bore Carburetor Flange Type
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Edelbrock 2022 Power Package Top End Engine Kit, Chevy
X
We estimate this item will ship on or before August 6th.
Part # 3252022
$1,798.95
$2,121.95
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Cylinder heads come fully assembled for ease of use
- Valve guides are manufactured from manganese bronze
- Kit includes intake and exhaust valves as well as valve springs
- Features a dual plane intake with a 4-barrel square bore carburetor flange
- Edelbrock put this kit together so that you can have all the matched parts available under one part number
Details
Finish:
Natural
Material Type:
Aluminum
Carburetor Flange Type:
4-Barrel Square Bore
Gasket(s) Included:
Yes
Cylinder Head Style:
Assembled
Combustion Chamber Volume:
64cc
Intake Valve Diameter:
2.02"
Exhaust Valve Diameter:
1.94"
Rocker Arms Included:
No
Thread Pitch:
3/8-24 in.
Camshaft Included:
Yes
Intake Manifold Included:
Yes
Fuel Delivery Style:
Carbureted
Intake Style:
Dual Plane
Timing Chain and Gears Included:
Yes
Lifters Included:
Yes
Cylinder Head Material:
Aluminum
CNC-Machined Combustion Chamber:
No
Intake Port Location:
Standard
Exhaust Port Location:
Standard
Exhaust Port Shape:
Square
Spark Plug Style:
Straight
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Valve Spring Included:
Yes
Outside Diameter of Outer Spring:
1.25"
Damper Spring Included:
Yes
Number of Springs Per Valve:
Single
Retainer Material:
Steel
Retainers Included:
Yes
Locks Included:
Yes
Lock Style:
7 Degree
Rocker Arm Nuts Included:
No
Rocker Arm Studs Included:
Yes
Guideplates Included:
Yes
Valve Covers Included:
No
Guideplate Pushrod Size:
5/16 in."
Accessory Bolt Holes Drilled:
Yes
Valve Guide Material:
Manganese Bronze
Valve Seats Machined:
Yes
Valve Cover Mounting Style:
Perimeter Bolt
Valve Seat Machine Style:
3-angle
Steam Holes Drilled:
No
Valve Seat Material:
Powdered Metal
Machined for O-Ring:
No
Heat Crossover:
No
Cylinder Head Bolts Included:
Yes
Oiling Style:
Through Pushrod
Valve Stem Seal Style:
Umbrella
Intake Runner Volume:
185cc
Valve Guides Included:
Yes
Valve Stem Seals Included:
Yes
Exhaust Runner Volume:
60cc
GTIN Code:
085347020225
CNC-Machined Runners:
No
Info
The Edelbrock Total Power Package concept of selling dyno-matched components has been popular since the 1980s, but with the introduction of the Performer RPM Power Package Top End Kits, Edelbrock matched parts are now available under one part number!
- Matched Parts Available Under One Part Number
- All In One Box Convenience
- Make Things Easier In Parts Selection
- Includes Almost Everything You Need
Notes

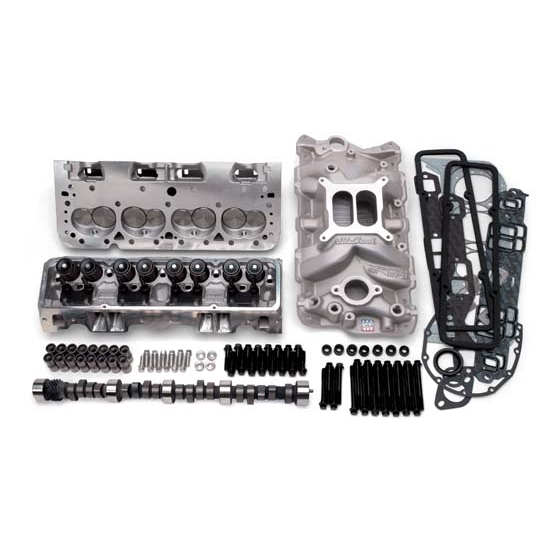

This kit includes the following list of Edelbrock parts:
325-2701 - Performer EPS Intake Manifold
325-5089 - E-Street Cylinder Heads
325-2102 - Performer-Plus Camshaft Kit
325-9630 - Pushrods
325-7800 - Performer-Link Timing Chain Set
325-8550 - Head Bolt Kit
325-8504 - Intake Manifold Bolt Kit
325-7361 - Head Gasket Set
325-6997 - Timing Cover Gasket Set
Important Messages
- This item ships directly from the manufacturer. It may take an additional 30 business days for Edelbrock to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
