Zoomed In Image
Part # 9109127
Save 18%
$519.20
$634.87
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Designed and calibrated for optimum off-road performance in small-block and some big-block engines
  • Lightweight Ball-Burnished Aluminum Carburetor
  • Polished Filter and Stainless Steel Braided Line
  • Easy to install air cleaner comes with mounting hardware and PVC smog fitting
  • Includes zinc plated steel studs, nuts and washers to mount the carburetor with ease

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Sold in Quantity:
Kit
Carburetor Barrels:
4-Barrel
Carburetor Flange Type:
4-Barrel Square Bore
Fuel Type:
Gasoline
Choke Type:
Electric
CFM Range:
600-699 CFM
CFM:
650 CFM
Finish:
Satin
Secondary Type:
Air Valve
Fuel Inlet Type:
Dual
New or Remanufactured:
New
Throttle Linkage Type:
Universal
Bolt Hole Pattern:
5.160" x 5.625"

Info

Top off your engine with these carburetor air/fuel installation kits.  Complete installation kit includes gaskets and hardware.

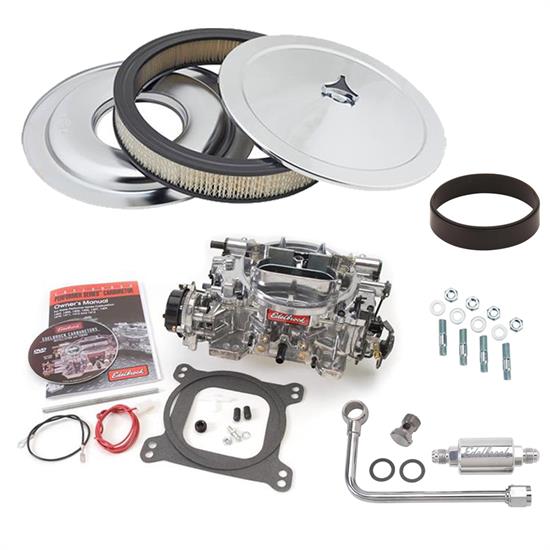

Kit Includes:

  • (1) Edelbrock 1826 Thunder Series AVS Off-Road Carburetor, 650 CFM
  • (1) Edelbrock 8131 Performer Carb Fuel Line Kit & Fuel Filter, -6 AN Inlet
  • (1) Carburetor Stud Kit, 1-3/8 Inch
  • (1) Chrome Deep Dish Performance Air Cleaner, 14 x 2 Inch
  • (1) Mr Gasket 9341 Air Cleaner Spacer, 1 Inch



Edelbrock 1826 Thunder Series AVS Off-Road Carburetor

  • Designed and calibrated for optimum off-road performance in small-block and some big-block engines
  • Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, Performer RPM, RPM Air-Gap and other brands of similar design
  • Spring Loaded Needles/Seat Increase Performance
  • New Qwik-Tune Adjustable Secondary Air Valve
  • Distinctive Black Accented Hardware
  • Lightweight Ball-Burnished Aluminum
  • No Gaskets Below Fuel Level to Prevent Leakage
  • Metering Rod/Step Up Springs Can Be Changed Easily
  • GM/AMC-Style Throttle Linkage
  • 650 CFM



Edelbrock 8131 Performer Carb Fuel Line & Filter Kit

  • Chrome Steel Fuel Inlet for Edelbrock carburetors
  • Provides a clean and custom plumbing solution
  • Drop-down design routes the fuel line on the right-hand (passenger side) of the carburetor below the linkage and choke housing
  • Includes a polished aluminum fuel filter with a 40-micron filter element
  • -6 AN male inlet will accept an Edelbrock fuel line kit for a complete fuel pump to carburetor plumbing solution
  • Manufactured of plated polished steel
  • Includes a 5/8"-20 threaded banjo bolt with gaskets



Carburetor Stud Kit

  • Easy installation/removal of carb plates
  • Includes zinc plated steel studs, nuts and washers
  • 1-3/8"



Chrome Deep Dish Performance Air Cleaner

  • Keep the air entering your engine clean
  • There is no "drop" to the base of this air cleaner, meaning the bottom of the cleaner is at the same height as the top of the carb
  • This easy to install air cleaner comes with mounting hardware and PVC smog fitting
  • Chrome plated steel
  • 14" diameter and 2" tall filter element
  • Fits 4 barrel carbs with 5-1/8" neck
  • Includes stud and wing nut
  • Triple process plating for brightest finish and long life
  • Non-restricting, flame proof filter
  • Performance designed for increased breathing
  • Designed for universal applications
  • Overall Height: 3.25"



Mr Gasket 9341 Air Cleaner Spacer

  • Properly locates your air cleaner
  • Solves any interference problems you might have
  • Plastic construction
  • 1 in Tall
  • 5 1/8" Neck



Charts

Installation Instructions (PDF)

Fuel Line Kit Instruction Sheet (PDF)



Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Edelbrock 1826 Thunder Series AVS Off-Road Carburetor, 650 cfm
    Qty x 1
  • Edelbrock 8131 Performer Carb Fuel Line Kit & Fuel Filter, -6 AN Inlet
    Qty x 1
  • Carburetor Stud Kit, 1-3/8 Inch
    Qty x 1
  • Mr Gasket 9341 Air Cleaner Spacer, 1 Inch
    Qty x 1
  • Chrome Deep Dish Performance Air Cleaner, 14 x 2 Inch, 4 Barrel Carb.
    Qty x 1
