Product Summary

Universal Fit, 4-Barrel Carburetor Barrels, 600 CFM CFM

    Key Specs

    Carburetor Barrels4-Barrel
    Fuel TypeGasoline
    CFM600 CFM
    Carburetor Flange Type4-Barrel Square Bore
    FinishPowder Coated

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

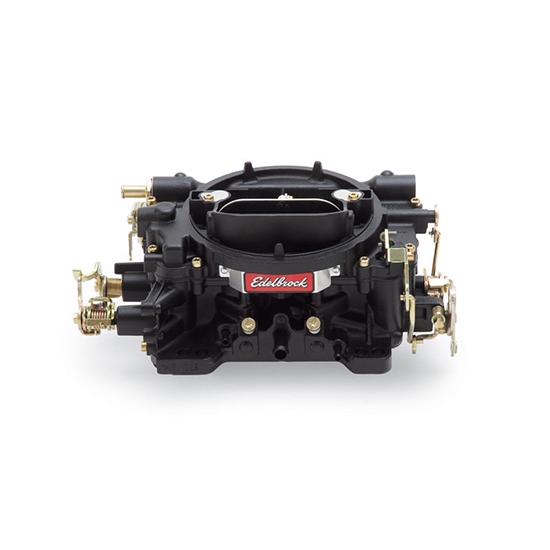

    These Performer carburetors from Edelbrock feature two-piece aluminum construction for cooler temperatures and less warping. They are easy to tune with included owner's manual for quick reference. These carbs do not have extra gaskets below the fuel level, resulting in fewer leaks as well as no plastic parts that will crack or blow out under pressure. Metering rods allow for precise tuning and the primary venturi booster features a bottom-feed design for smoother acceleration and drivability.
    • Custom Tuned
    • Delivers Best Possible Performance
    • 600 cfm
    • 4-barrel, Square Bore, Manual Choke
    • Single Fuel Inlet
    • Black Powdercoated

    Charts

    CARB Warning

    Follow EPA, CARB, and state regulations for engine changes

    Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

    Specifications

    KEY SPECS
    MFG. Part #140535
    BrandEdelbrock
    Carburetor Barrels4-Barrel
    Fuel TypeGasoline
    CFM600 CFM
    Carburetor Flange Type4-Barrel Square Bore
    FinishPowder Coated
    GENERAL
    Choke TypeManual
    CFM Range600-699 CFM
    Material TypeAluminum
    ColorBlack
    Secondary TypeAir Valve
    Fuel Inlet TypeSingle
    New or RemanufacturedNew
    Throttle Linkage TypeUniversal
    Bolt Hole Pattern5.160" x 5.625"
    NotesPrimary Carburetor, specifically calibrated for use on Edelbrock's Enforcer Supercharger systems only. Fits EDL-1514, EDL-15141, EDL-15143, EDL-1516, EDL-15161, and EDL-15163.
    GTIN Code085347997992
    Sold in QuantityEach
