Product Summary

Universal Fit, 13.25" Body Length, 3.15" Body Diameter

    Key Specs

    MFG. Part #CT101ERL

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Earls CT101ERL Details

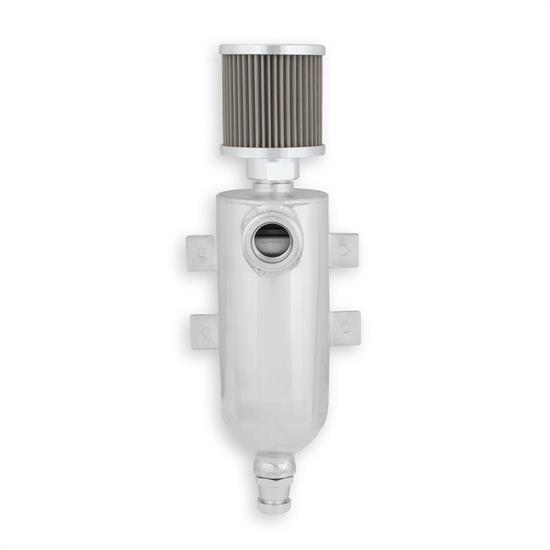

    Earl's breather tanks are made from 6061 aluminum and have internal oil baffling. These tanks feature a -12 AN O-ring inlet port, knurled drain valve with an optional 1/8" NPT outlet port for use with a remote drain (or to drain back to the oil pan), w/ 4-bolt mounting brackets. Includes a heavy-duty stainless steel mesh filter which has a billet aluminum housing to reduce weight. The filter may be removed to expose a -12AN Male. Ideal for use in all racing applications (i.e. engine PCV, dry sump tanks, transmissions, and rear-end venting). Polished aluminum finish.

    • 6061 Aluminum Catch Tanks w/ Baffle Inside
    • Polished Aluminum Finish
    • Dimensions: Overall Height 13.25” x Diameter 3.15” x Depth 3.20”
    • 4-Bolt Mounting Brackets – Bolt Pattern 4.13” x 2.40”, Overall Bracket Width 5.07
    • Inlet: -12 AN ORB Female
    • Drain w/ Knurled Screw & 1/8” NPT Outlet (for optional remote drain)
    • Billet Aluminum Housing with Stainless Steel Mesh Filter w/ -12 AN Female Inlet
    • Welded Construction
    • Capacity: 0.75L
    • Meets Requirements of Most Racing Sectioning Bodies – for Oil Catch Tank
    • Weight: 1.5 LB
    • Pressure Tested to 75psi

    Earls CT101ERL Specifications

    MFG. Part #CT101ERL
    GTIN Code090127070710
    Body Length13.25"
    Body Diameter3.15"
    Material TypeAluminum
    Sold in QuantityEach
    Filter MaterialStainless Steel Mesh
